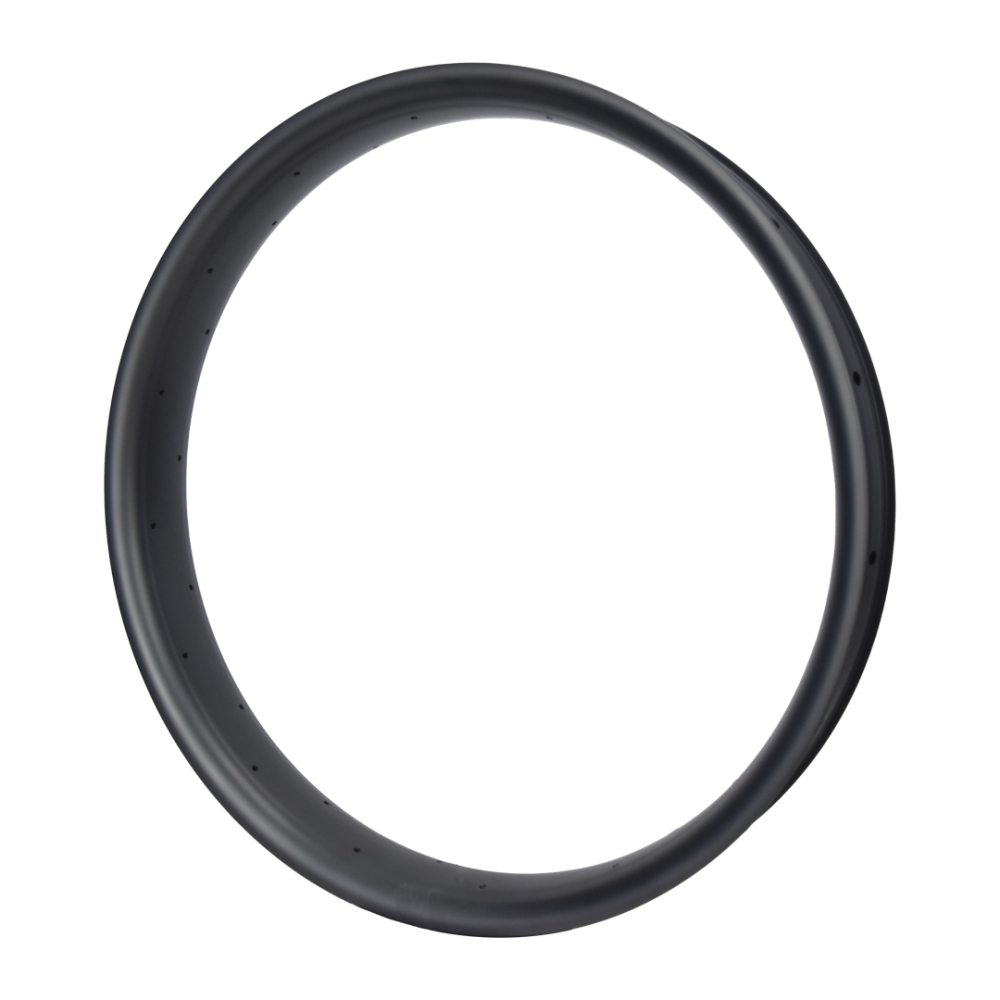

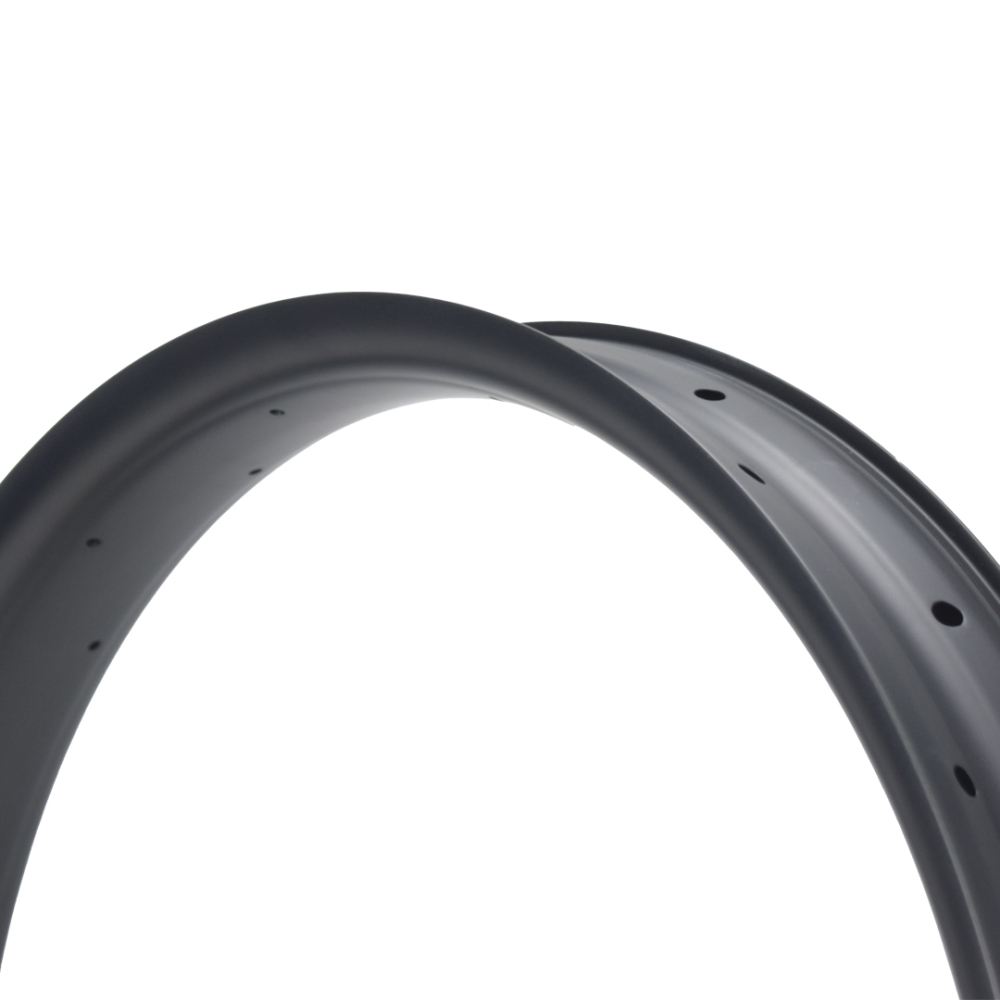

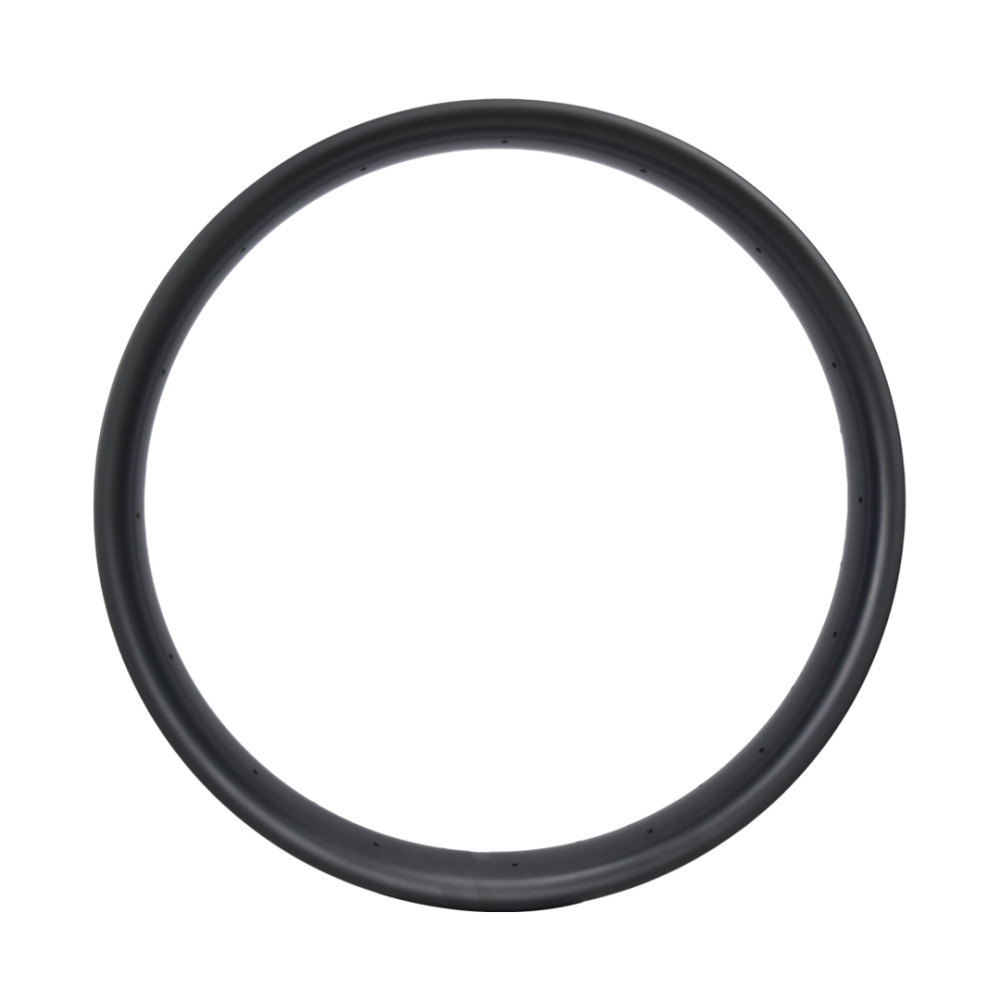

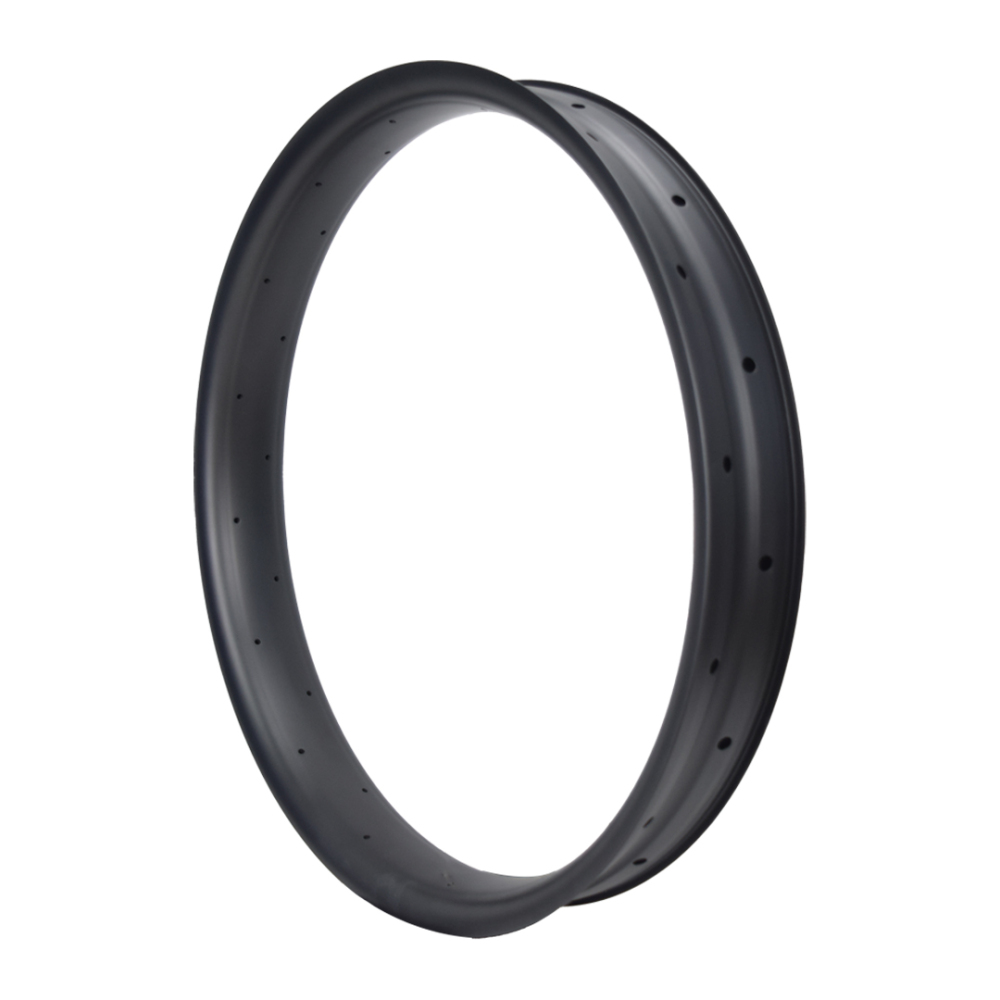

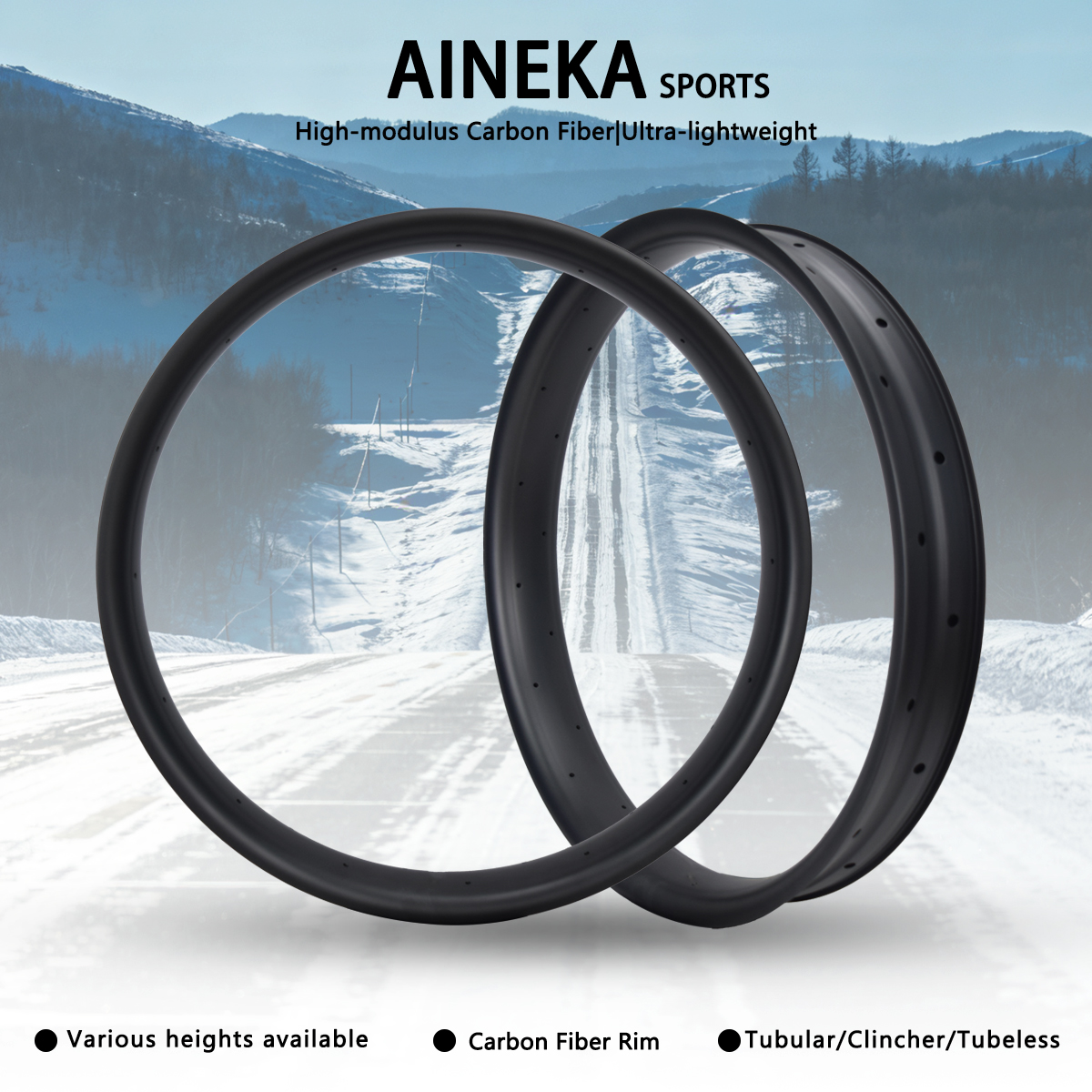

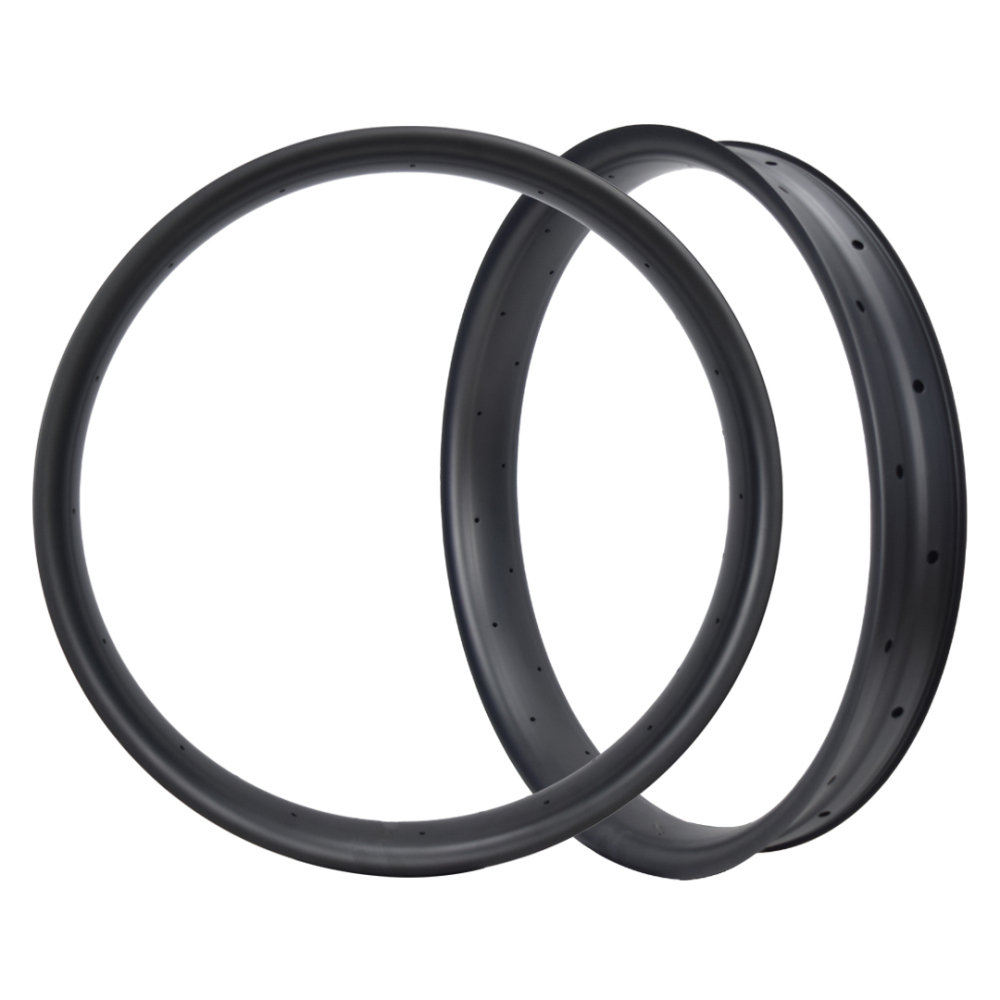

AINEKA Carbon fat bike carbon rims 26er tubeless hookless compatible
Elevate your off-road riding with our 26er Carbon Tubeless Bike Rim—engineered for strength, lightweight agility, and customizable versatility. Crafted from high-quality carbon fiber, this rim features a fixed 25mm depth and offers three width options (65mm/80mm/100mm) to suit diverse riding conditions: from nimble cross-country mountain trails to wide-tire fat bike and snow bike adventures.
♦Key features
- Premium Carbon Construction: Lightweight, high-strength carbon fiber rim reduces rotational weight while delivering exceptional durability for off-road riding.
- Tubeless Ready Design: Optimized for tubeless tire setups to eliminate pinch flats, lower rolling resistance, and improve ride smoothness.

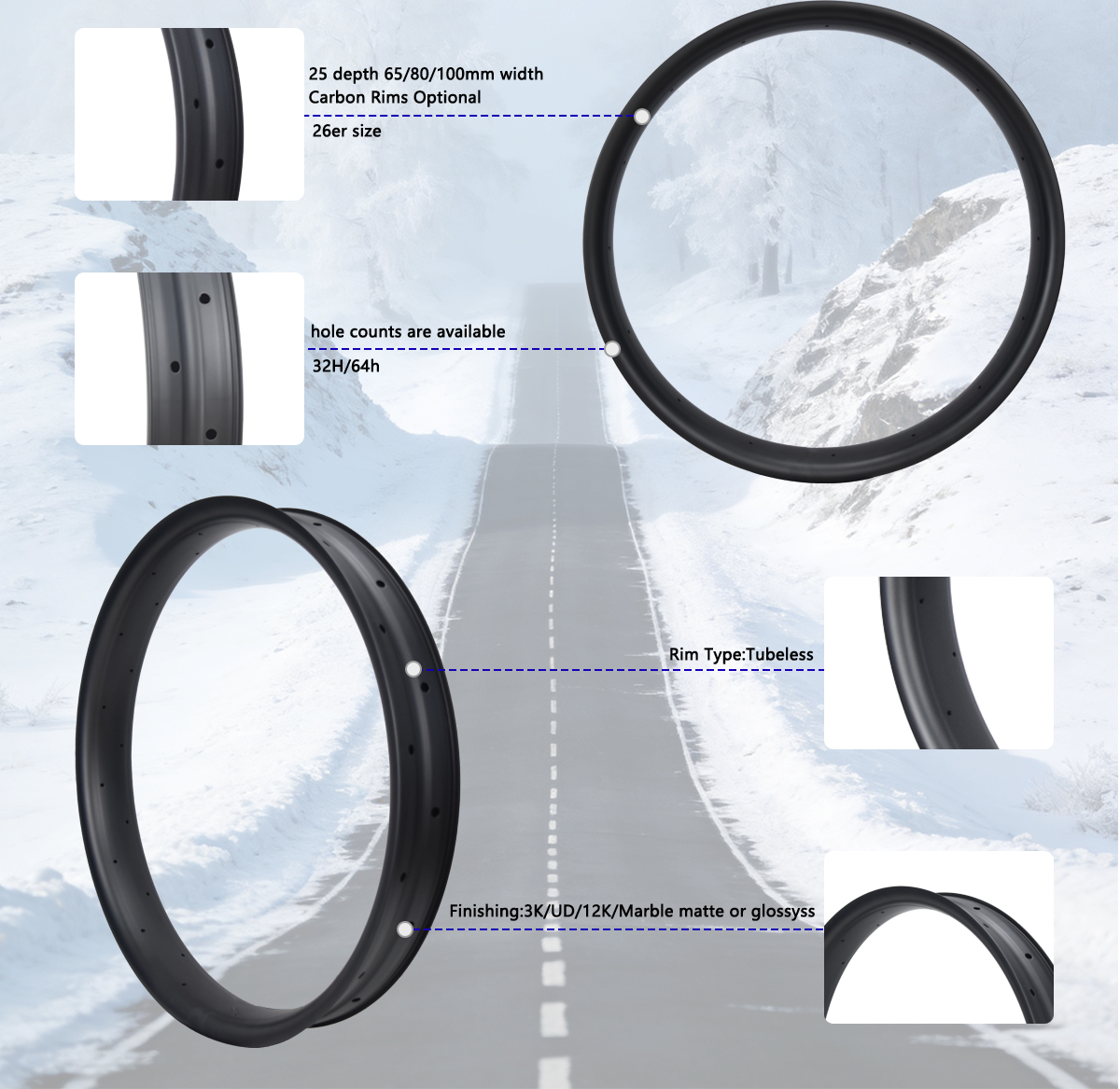

- Customizable Sizing: Choose from 65mm/80mm/100mm rim widths and 32H/64H hole counts to match your tire size, riding style, and wheel build needs.

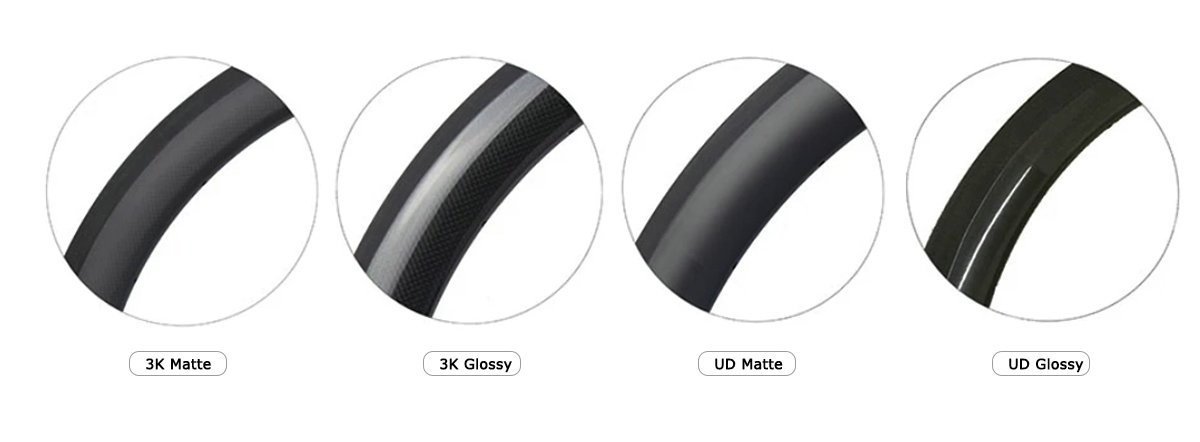

- Versatile Finishing Options: Select from 3K, UD, 12K, marble matte, or glossy finishes for a personalized, high-end aesthetic.
- 2 years warranty is provided to reduce concerns and give you peace of mind when purchasing.
26er 65mm, 80mm, 100mm width 25mm depth fat bike &snow bike carbon rim specs⇓:
| Rim |
SA-F25-65 |
SA-F25-80 |
SA-F25-100 |
| Material |
T700 |
T700 |
T700 |
| Rim weight |
600±15g |
680±15g |
750±15g |
| Rim width |
65mm |
80mm |
100mm |
| Rim type |
Tubeless or Clincher |
Tubeless or Clincher |
Tubeless or Clincher |
| Max rider limited |
120kg |
120kg |
120kg |
| Max tire pressure |
1.7bar/25psi |
1.7bar/25psi |
1.7bar/25psi |
| Recommend tire |
26*3.5''-4.5'' |
26*3.8''-5.0'' |
26*4.0''-5.2'' |
| ERD |
533mm |
533mm |
533mm |

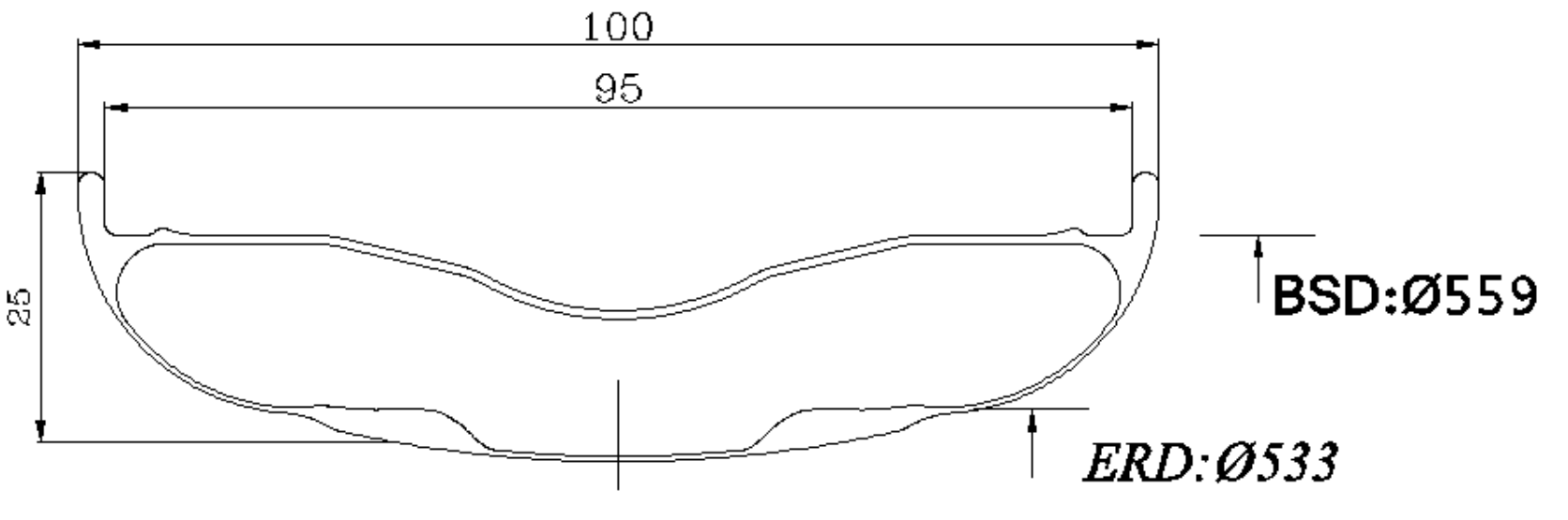

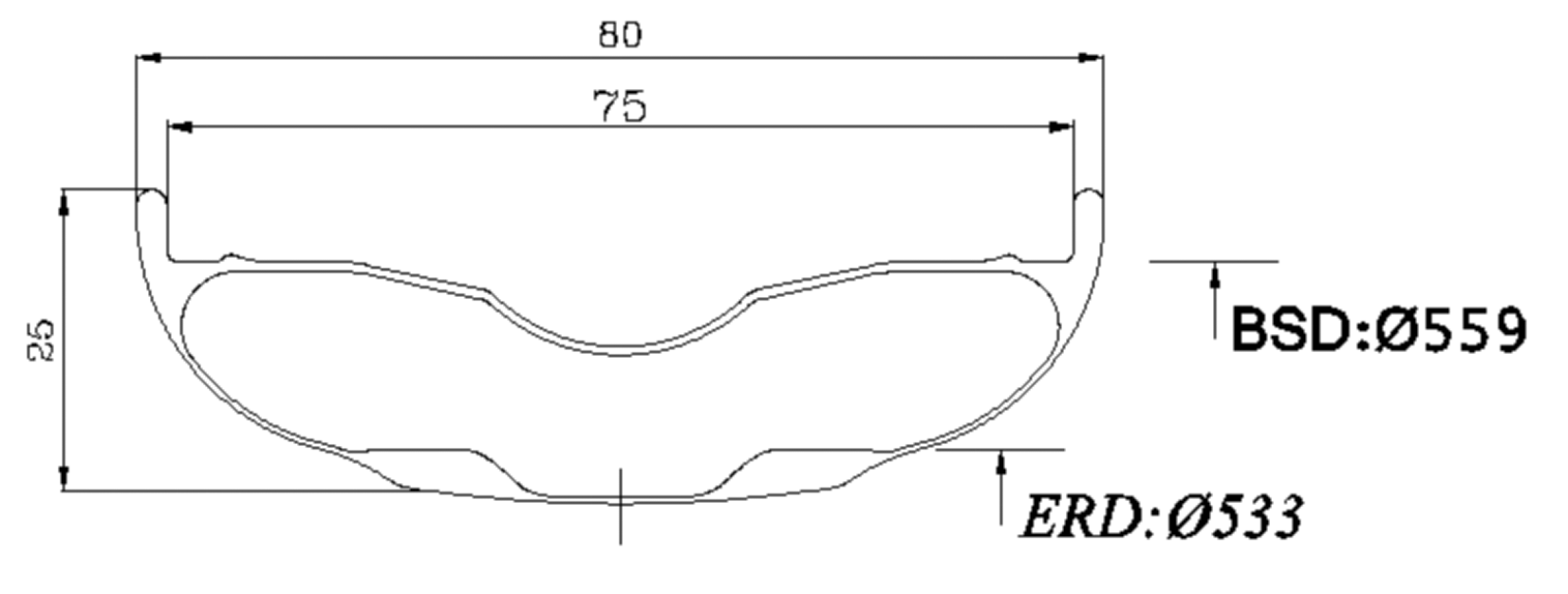

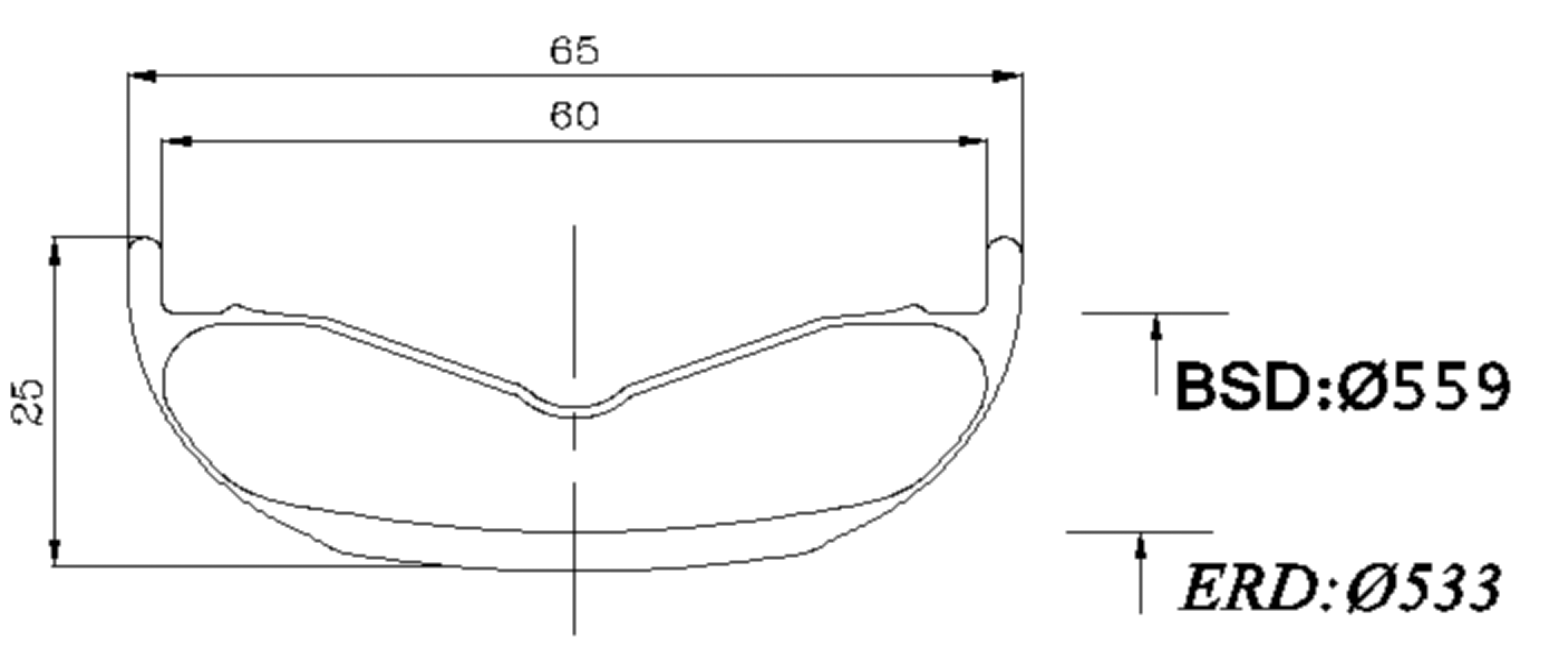

| Sectional Drawing |
|
|
|
