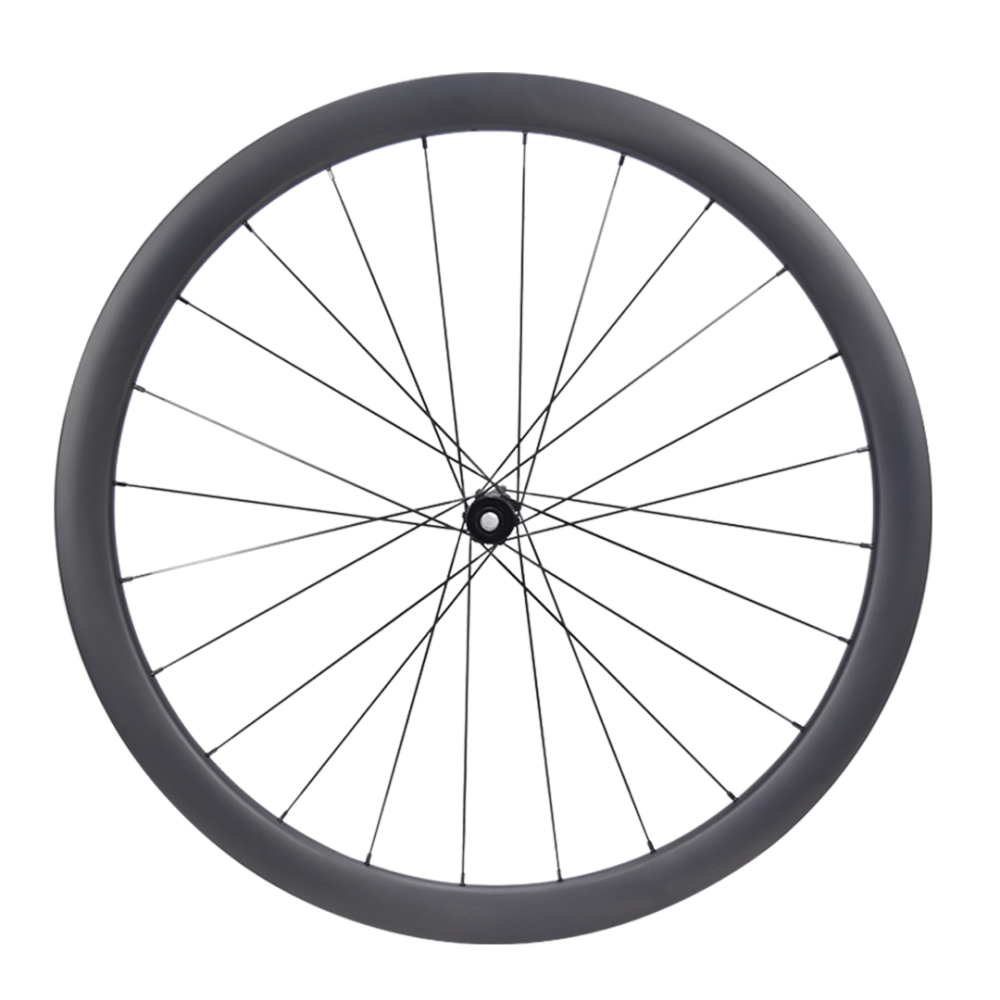

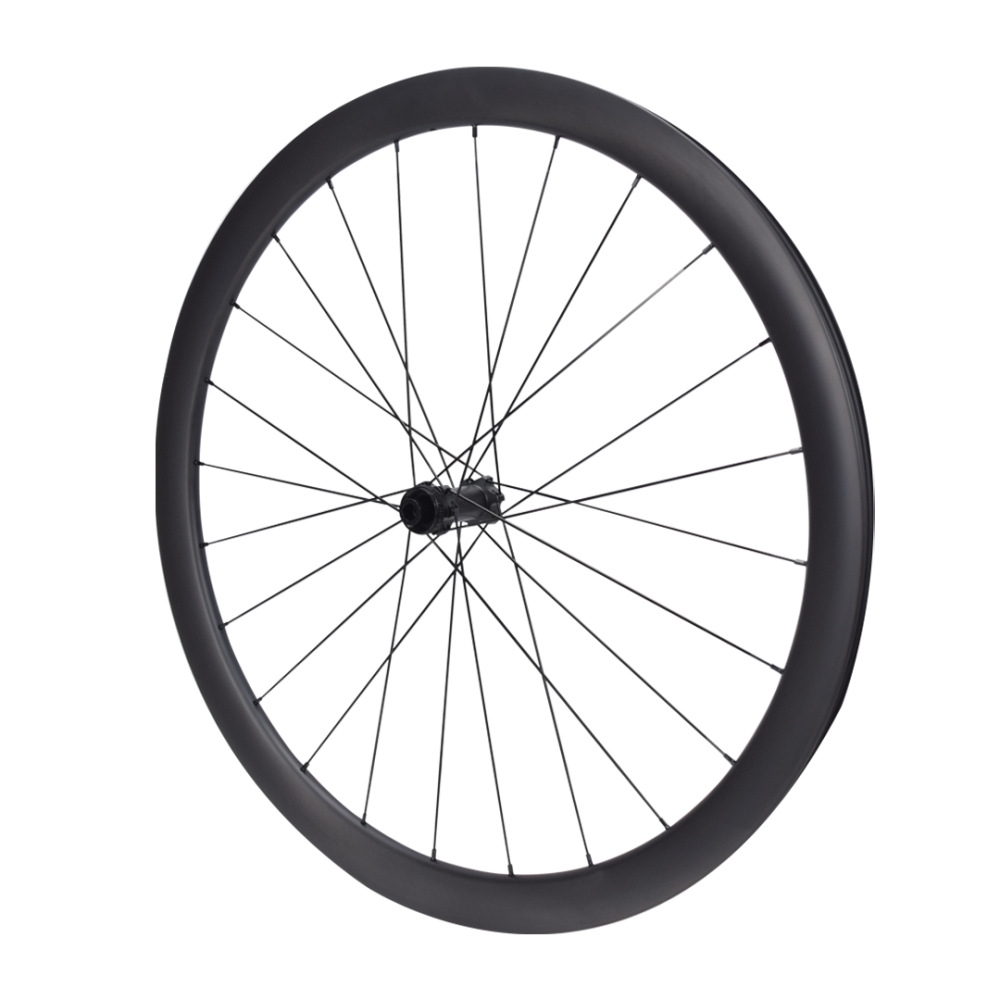

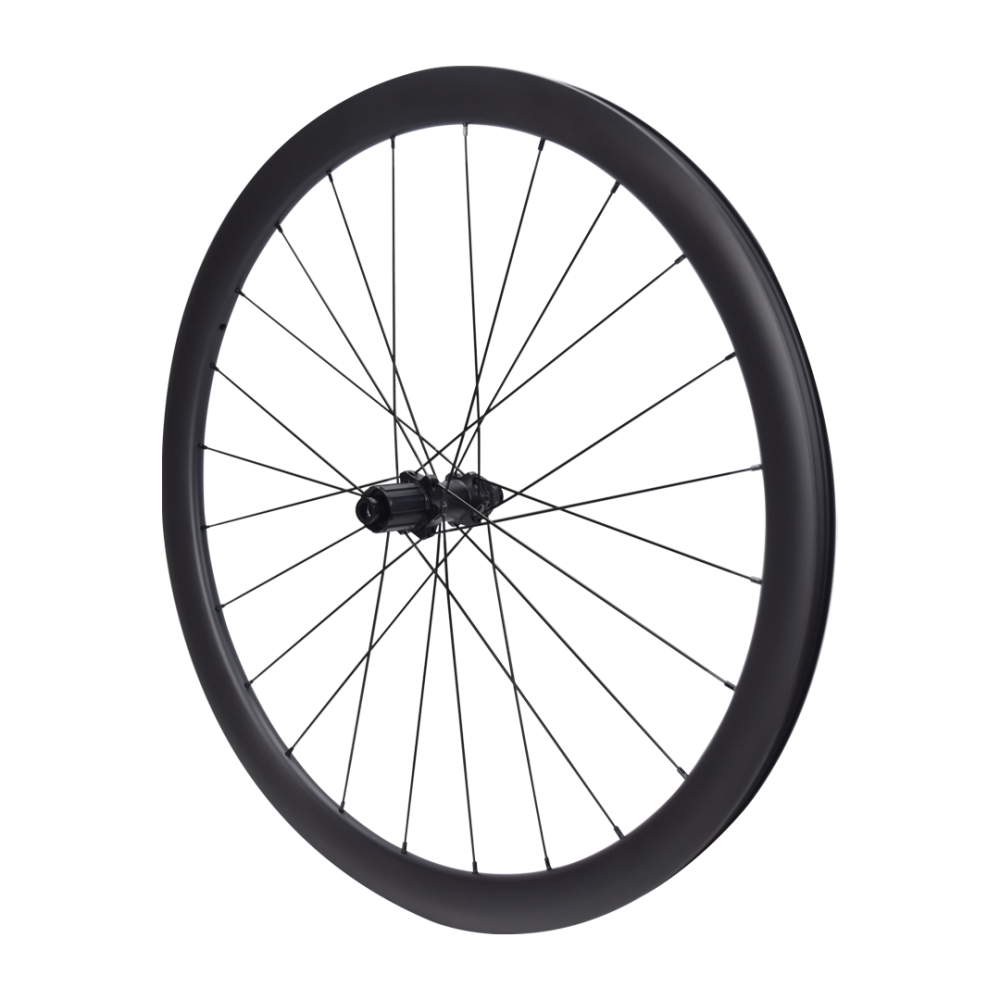

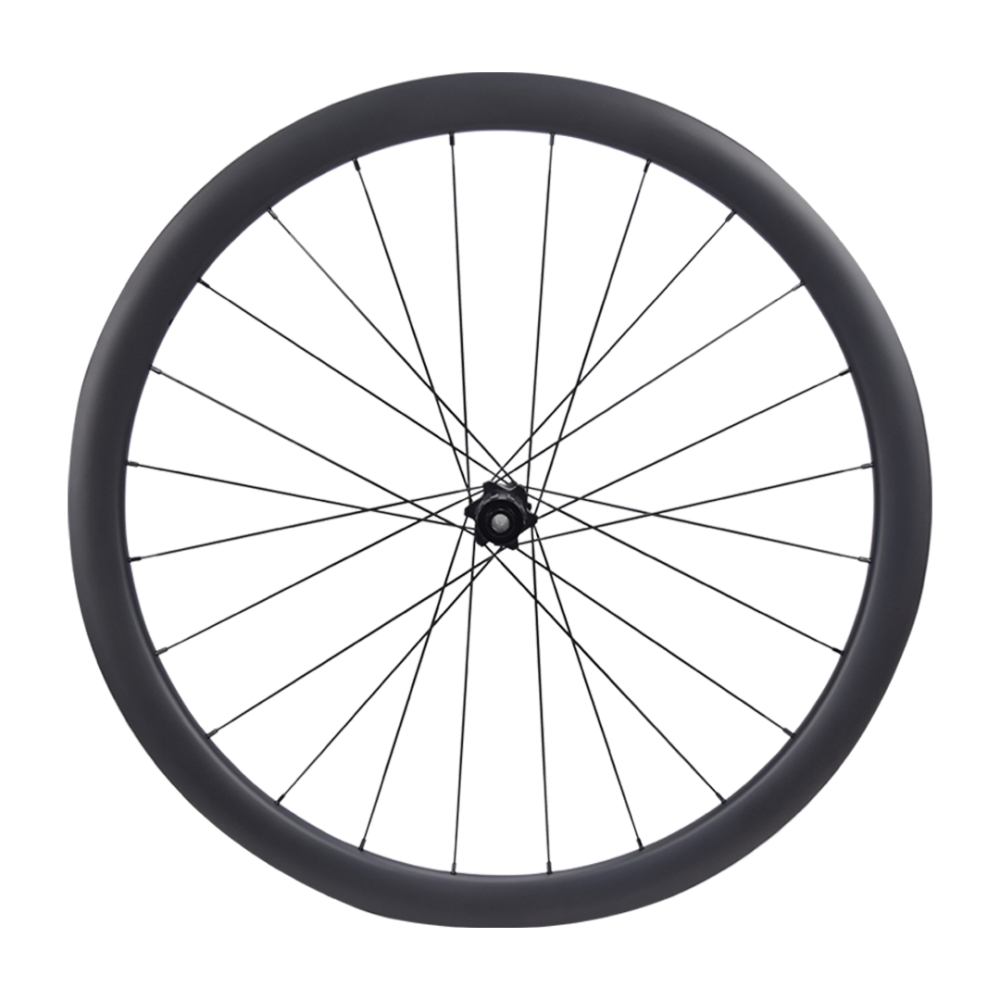

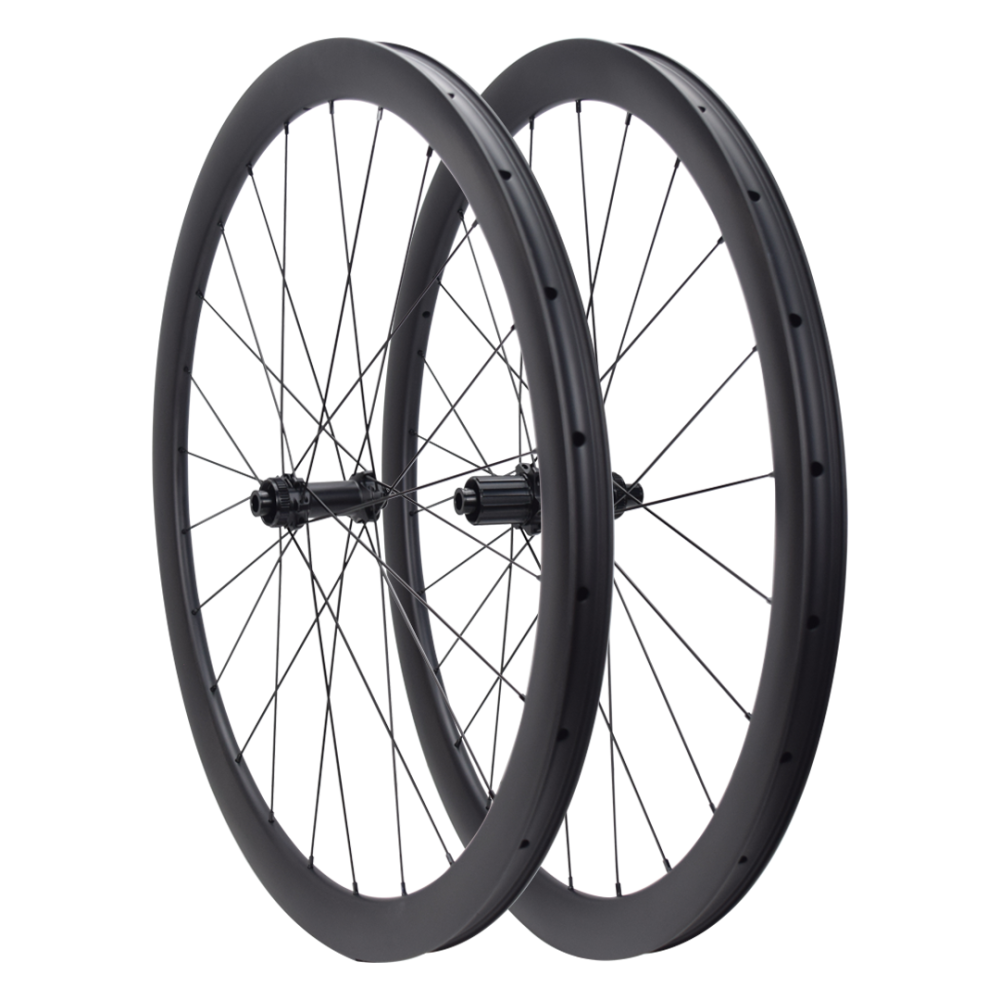

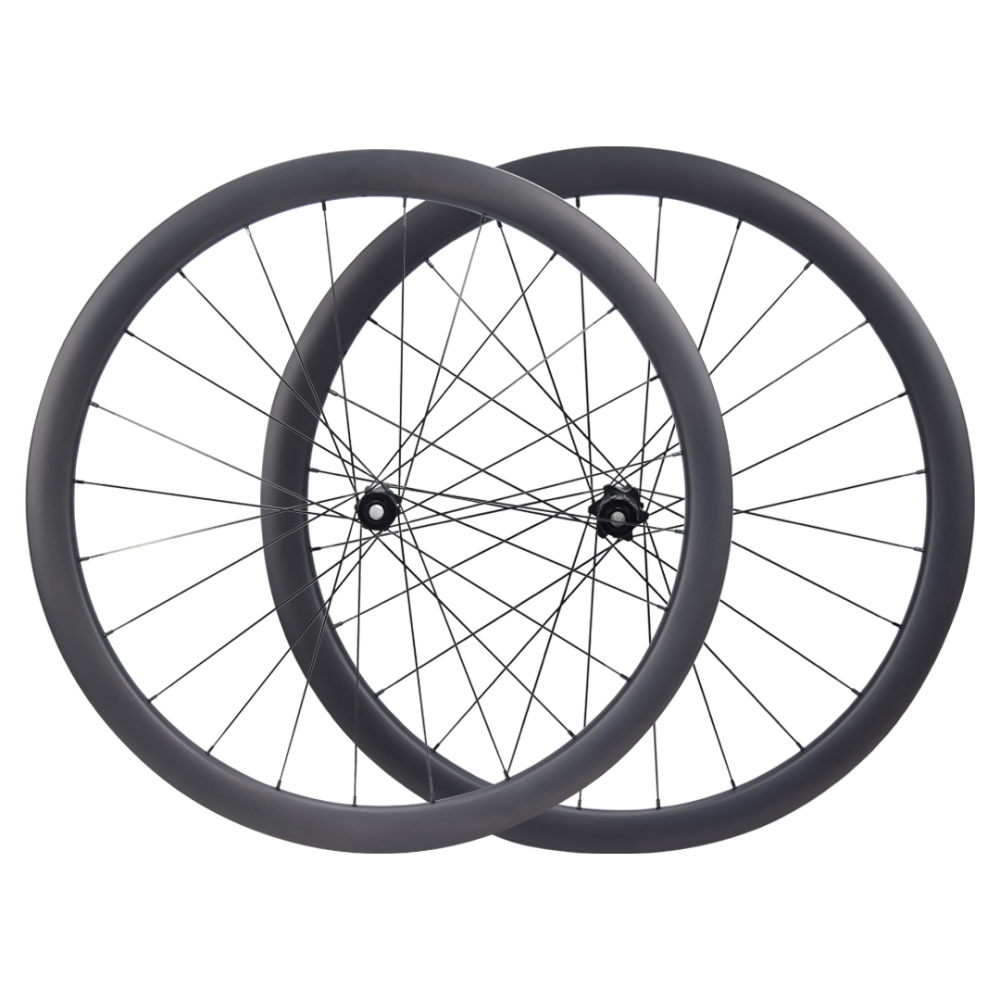

700C Carbon Wheelset for Road gravel bike disc brake carbon wheels 28mm 30mm 36mm width RD02 ratchet

New Choice for Road Cycling, AINEKA Carbon Fiber Wheelset: Lightweight & Durable
Multi-Spec Shifting Compatibility, AINEKA Carbon Wheelset Unlocks More Riding Possibilities

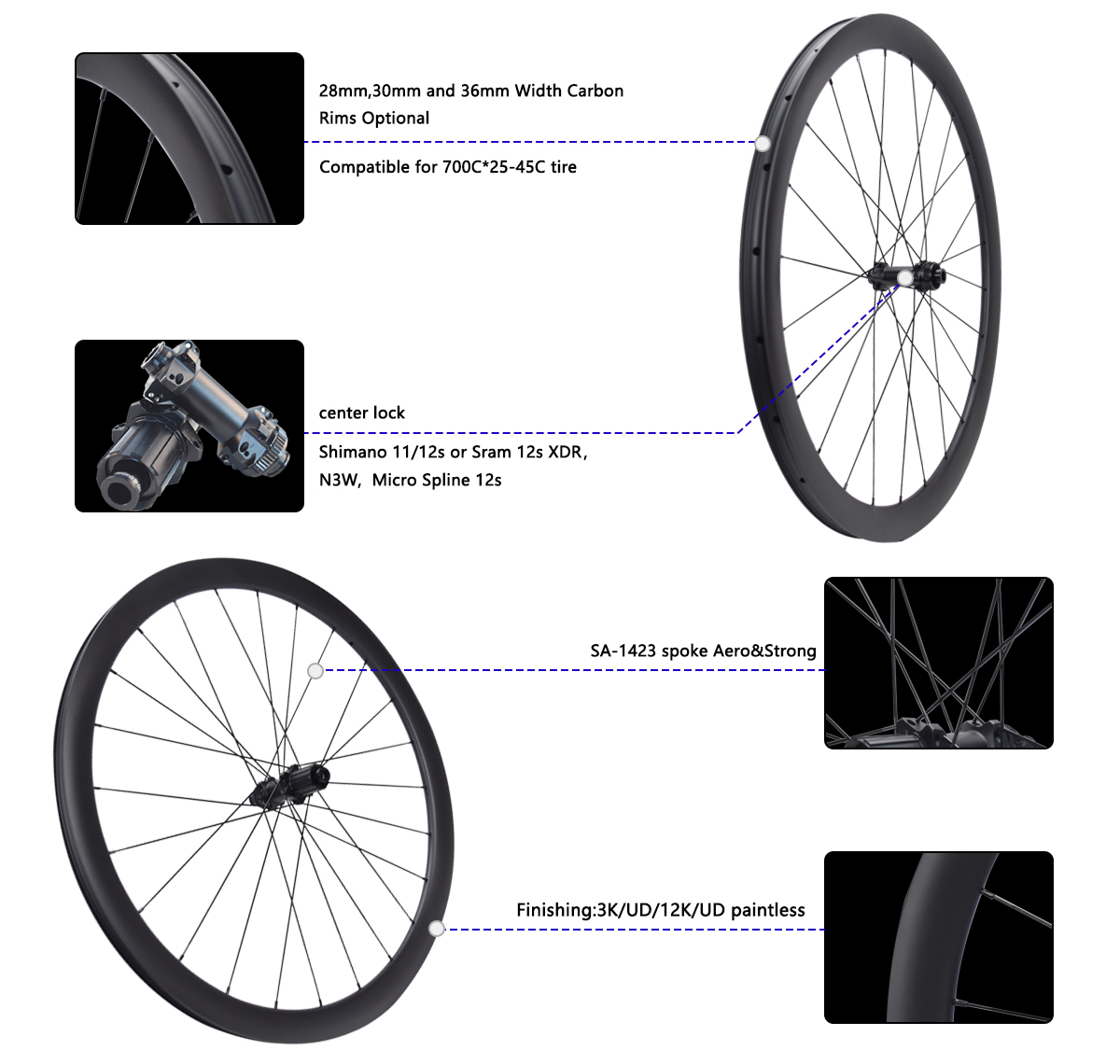

Key features
1. Multiple Carbon Rim Width Options：28mm, 30mm, and 36mm width carbon rims are available to meet the tire compatibility needs of different riding scenarios. It is compatible with 700C*25-45C tires for wider adaptability.
2. Highly Adaptable Shifting Systems：Adopts center lock structure, compatible with mainstream shifting systems including Shimano 11/12s, Sram 12s XDR, N3W, and Micro Spline 12s, matching a variety of high-end bicycle groupsets.
3. Aero & Strong Spokes：Equipped with SA-1423 aero spokes, which combine aerodynamic performance and structural strength for more efficient and stable riding.
4. Premium Surface Finishing：The rim surface features 3K/UD/12K/UD paintless finishing technology, with a high-grade and durable texture, effectively reducing the weight of the wheelset while enhancing the appearance.

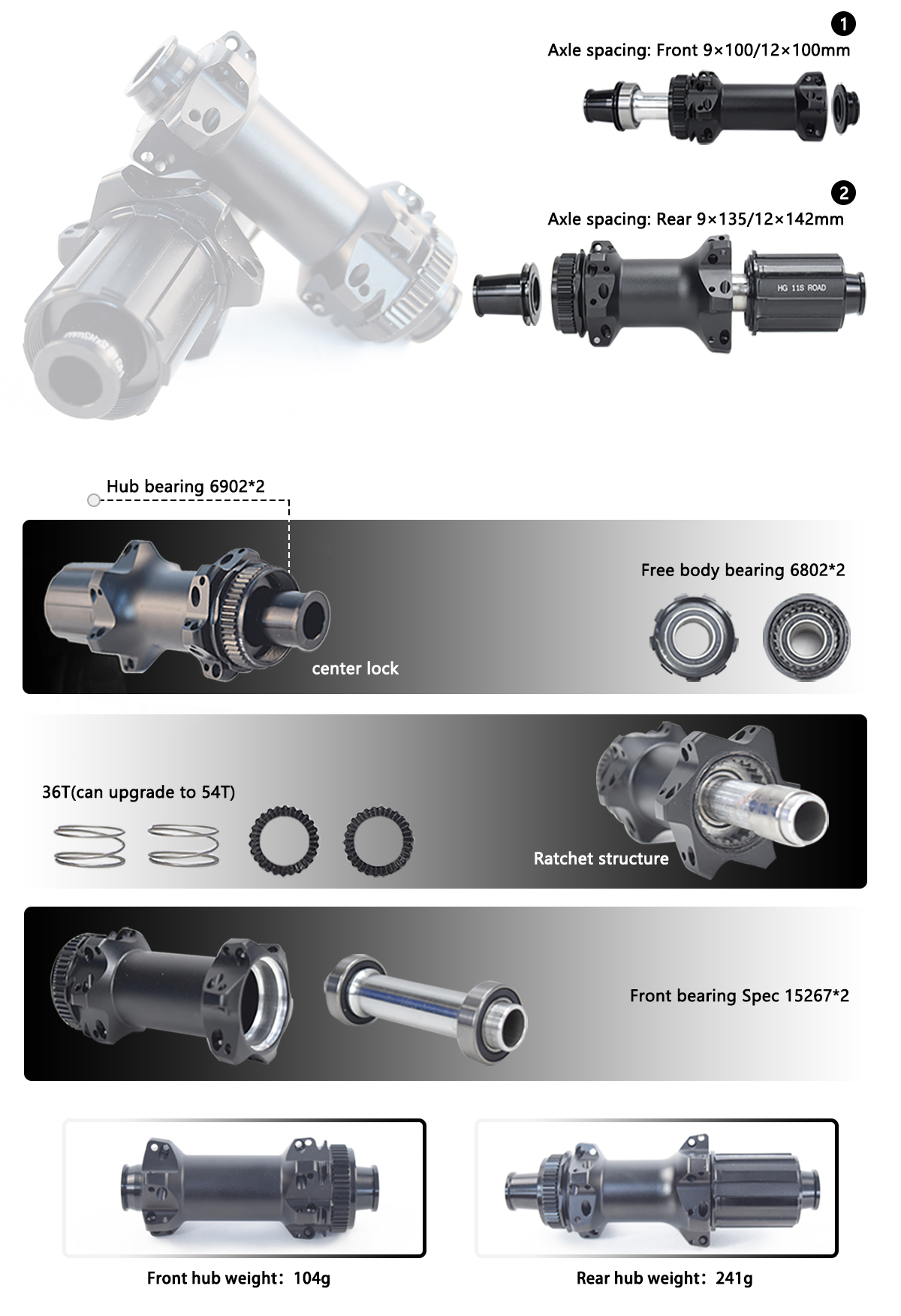

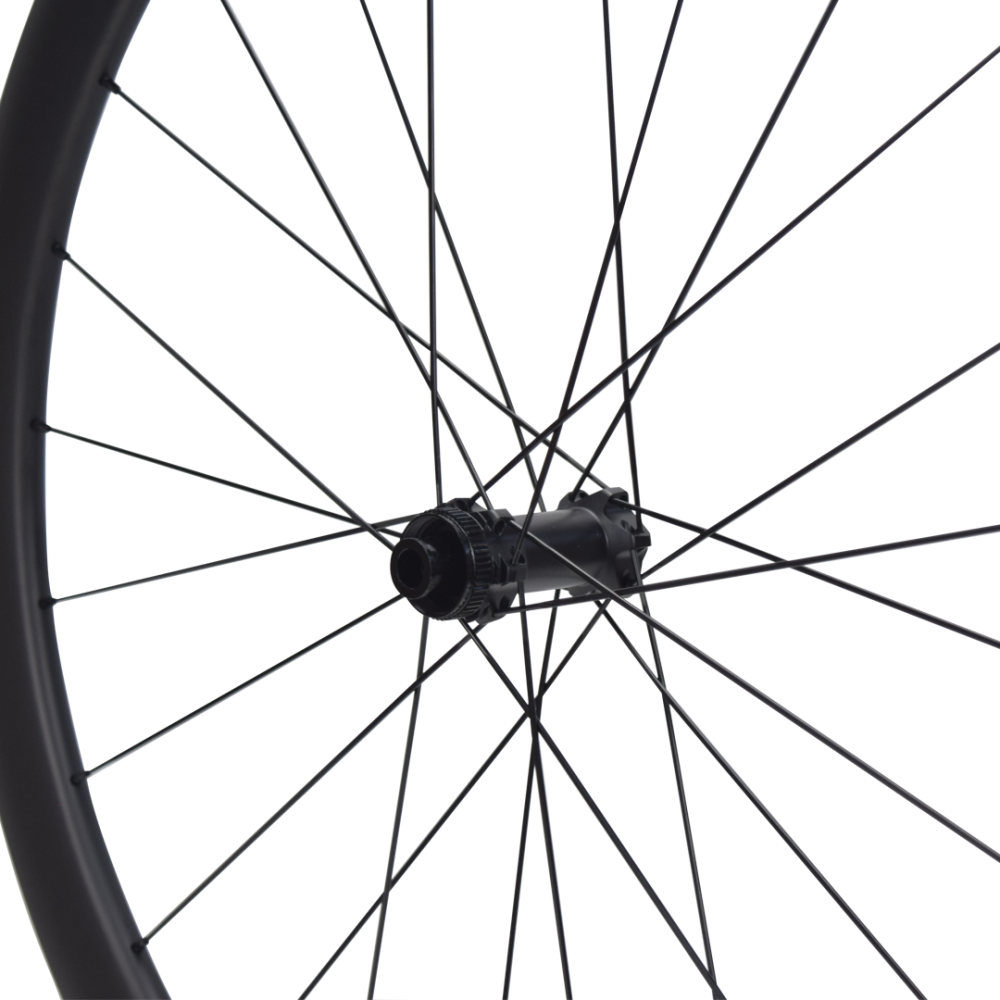

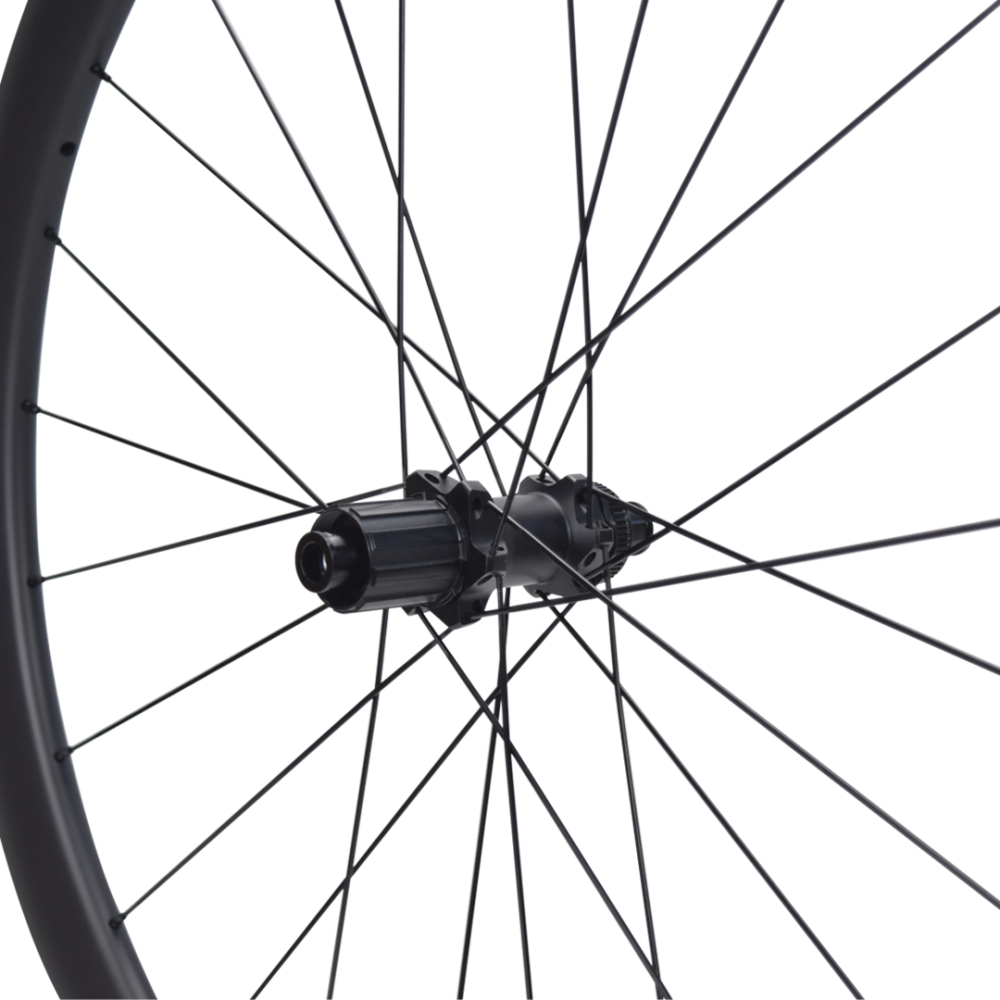

AINEKA bicycle hub features high-spec bearings, lightweight design and center lock structure. It fits mainstream frame axle spacings, has 36T ratchet teeth upgradable to 54T, and weighs 104g (front)/241g (rear) to cut wheelset weight. Customization and direct shipping from China are available.Carbon Straight-Pull Center-Lock RD02 Hub

Key features
1. Multi-spec Axle Spacing Compatibility：Front axle spacing supports 9×100mm/12×100mm, rear axle spacing supports 9×135mm/12×142mm, compatible with various mainstream frame and wheelset installation specifications.
2. High-spec Bearing Configuration：The front hub is equipped with 6902*2 bearings, the free body with 6802*2 bearings, and the front bearing adopts 15267*2 specification, featuring smooth rotation and strong durability.
3. Upgradable Ratchet Teeth：Standard 36T ratchet teeth, support upgrading to 54T, improving the transmission engagement speed and efficiency for professional riding needs.
4. Lightweight Design：The front hub weighs only 104g and the rear hub 241g, made of lightweight materials to effectively reduce the wheelset load.
5. Center Lock Structure：Adopts center lock structure, enabling easy disassembly and assembly of the brake disc, compatible with mainstream center lock brake systems for better compatibility.

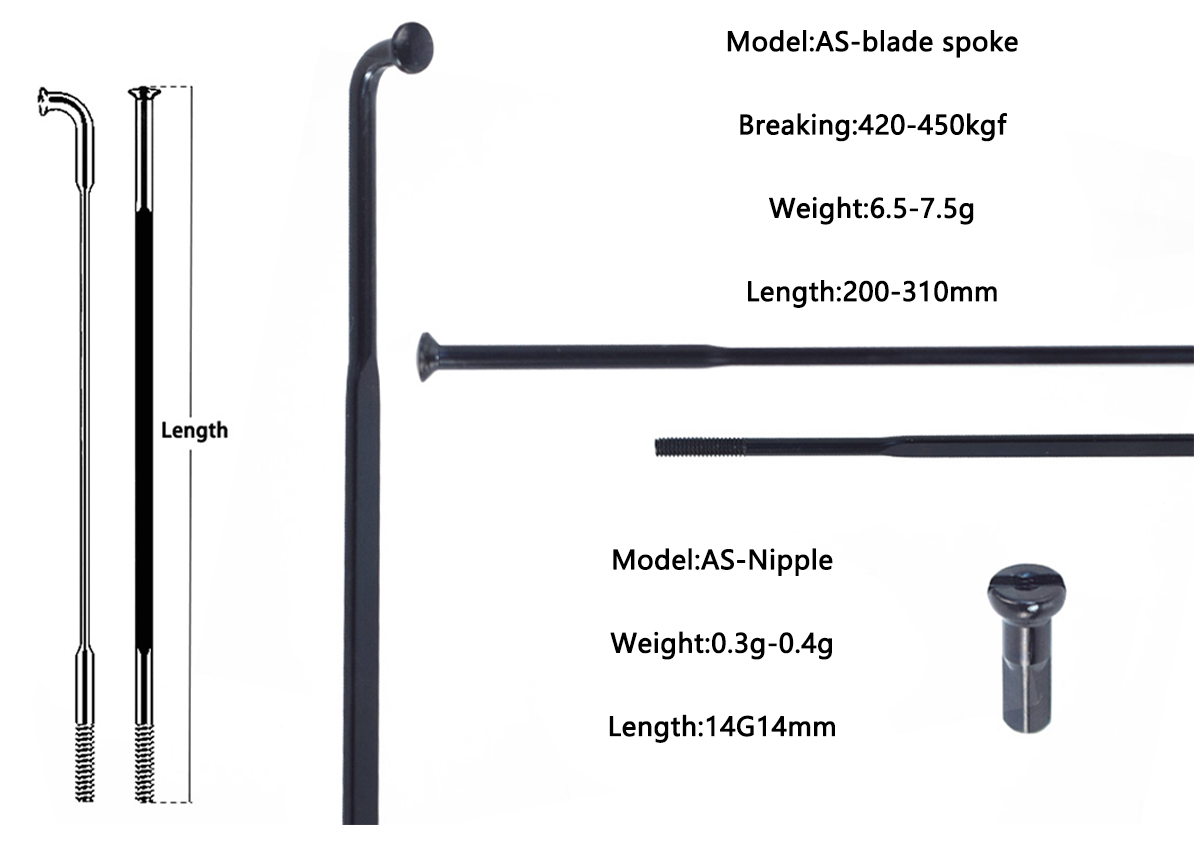

Key features

• High-Toughness Blade Spokes：AS-blade spokes have a breaking strength of 420-450kgf, with excellent tensile and fracture resistance, making the wheelset run more stably.
• Ultra-Lightweight：Each spoke weighs 6.5-7.5g and each nipple only 0.3-0.4g, greatly reducing the unsprung weight of the wheelset and improving riding lightness.
• Multi-Spec Compatibility：Spoke lengths range from 200-310mm to fit different size wheelsets; nipples are 14G14mm specification, precisely matching the spokes.
• Professional Model Design：AS-blade blade spokes have better aerodynamic performance and reduce riding wind resistance; AS-Nipple nipples are precisely made with high installation fit.

700C road disc brake carbon rim 28mm width specs:

---

⇒Road disc brake carbon wheel build with 30mm outer wide rim (24mm inner wide):

700C disc brake carbon road rims 30mm width specs:

---

⇒Road disc brake carbon wheel build with 36mm outer wide rim (30mm inner wide):

700C disc-brake carbon road rims 36mm width specs:
