♦Key features

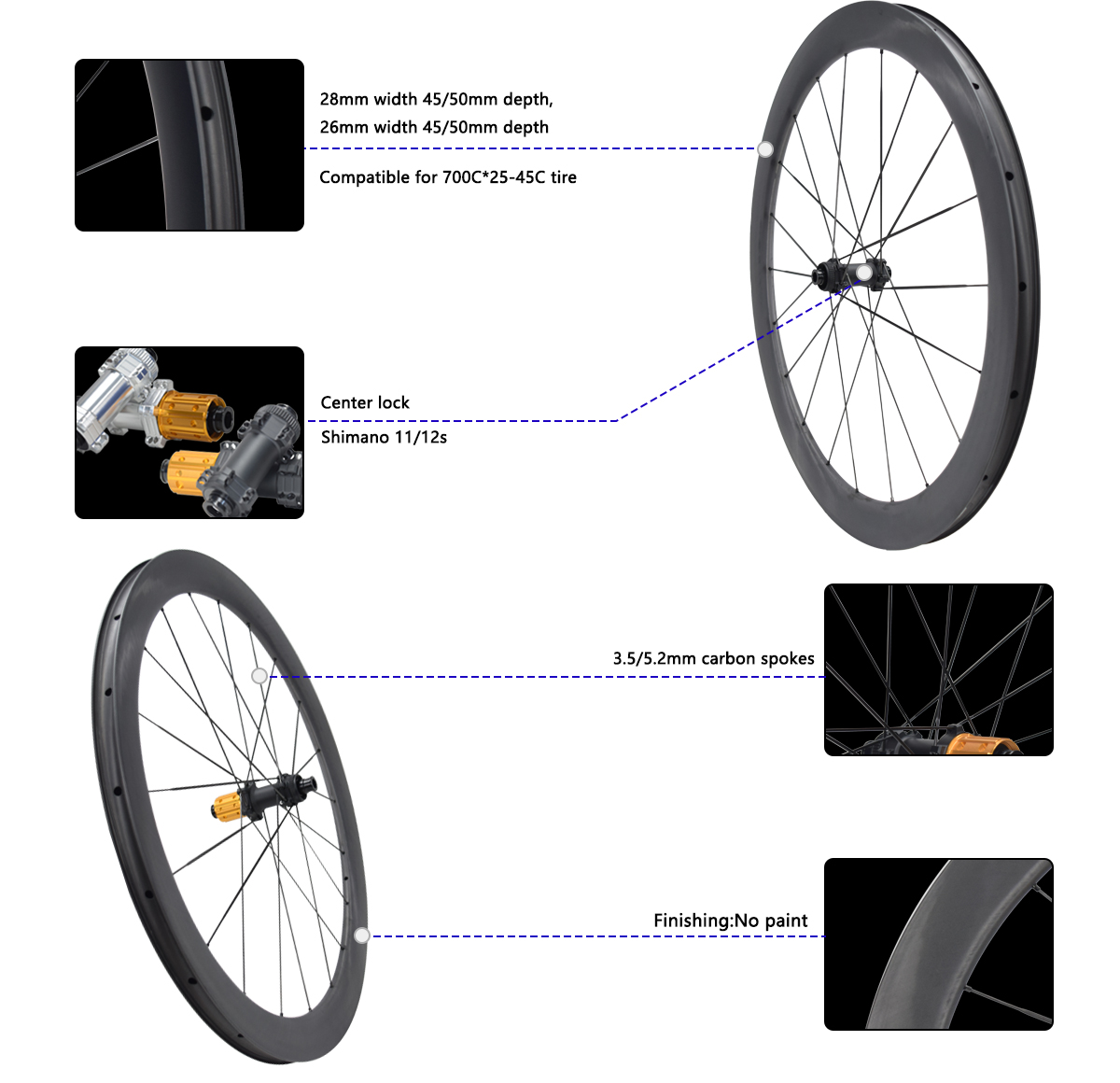

1.Rim Profile
Available inner widths: 26mm / 28mm
Rim depth: 45mm / 50mm option
Fits 700C tires (25C - 45C)
Matte raw carbon finish, no paint coating

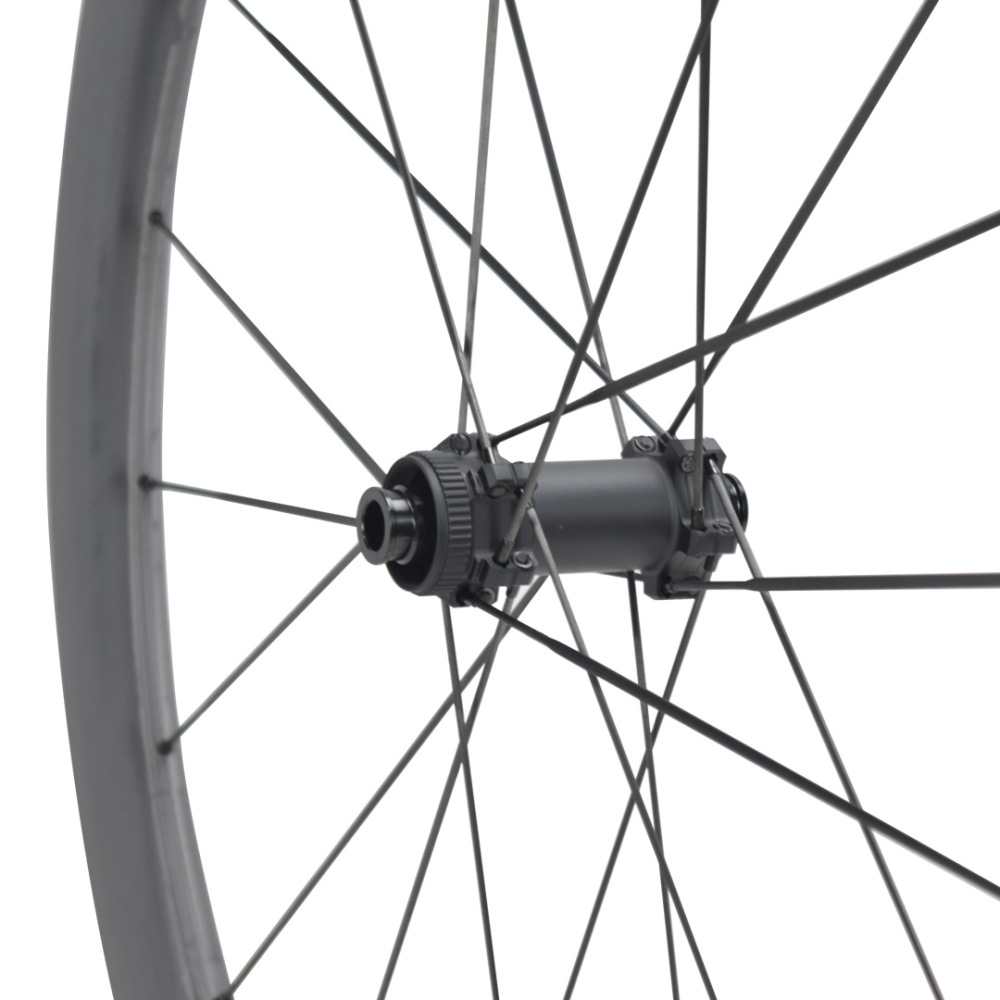

2.Hub System
Center lock disc brake mount
Compatible with Shimano 11/12 speed cassette bodies
3.Spokes
Model: SA-1423 aero spokes
Aerodynamic design & high structural strength

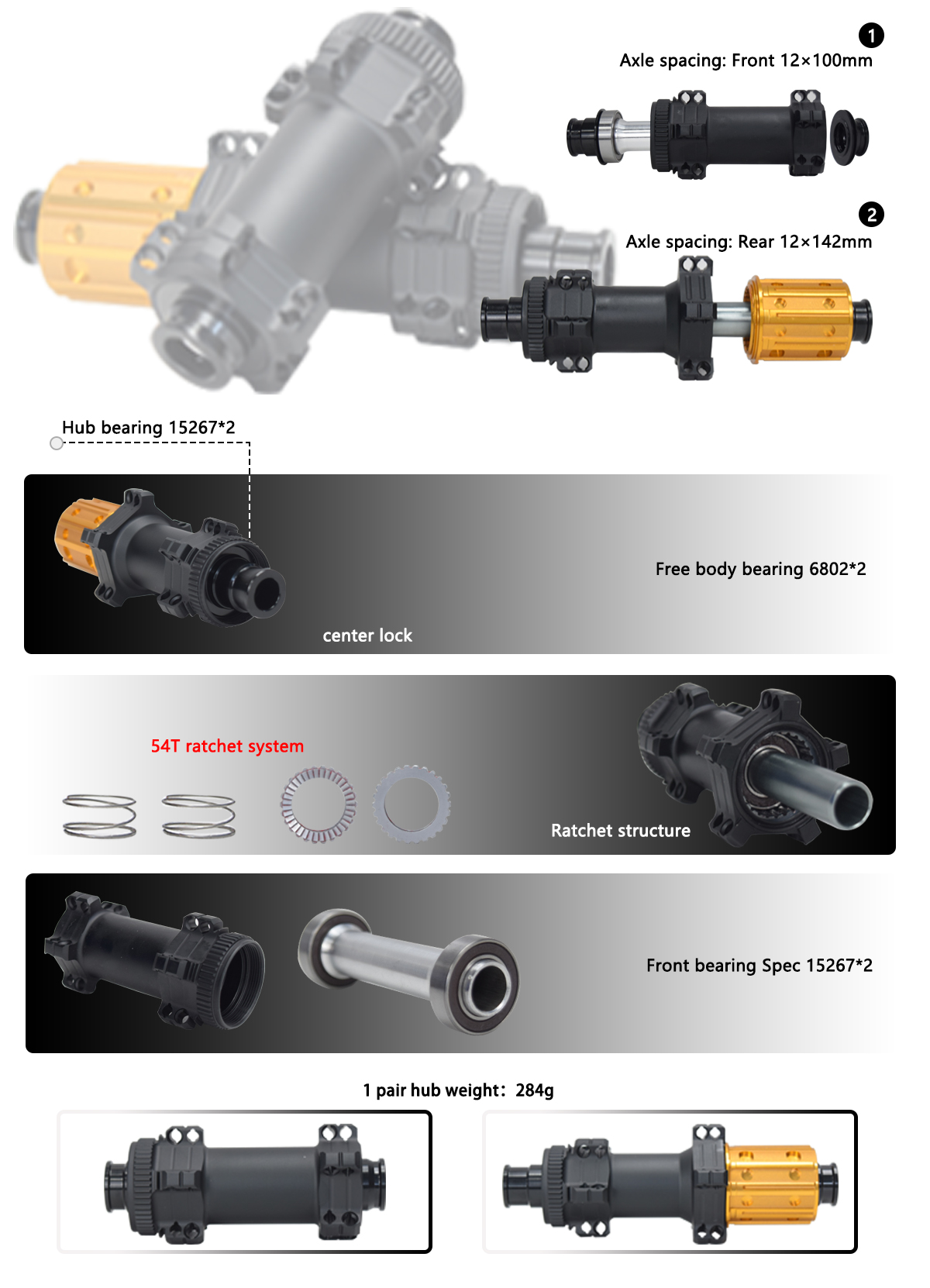

- 284g Carbon Spoke Hub SA-CS07
- 54T Ratchet Freehub, straight-pull center-lock design
- Carbon Spokes (3.5mm width or 5.2mmwidth)
- Works with Shimano 11/12-speed or Sram XDR
- 2 rim width Options (28mm/30mm),multiple height options
Effortless climbing and rapid sprints – carbon spokes are the "accelerator" of cycling!
- Extremely Lightweight: The 3.5mm version weighs only 3g per spoke (3.3g including the cap), and the 5.2mm version weighs only 3.3g (3.5g including the cap), significantly reducing the load on the wheelset.
- Dual Size Compatibility: Available in both 3.5mm and 5.2mm sizes, balancing lightweight design with rigidity requirements.

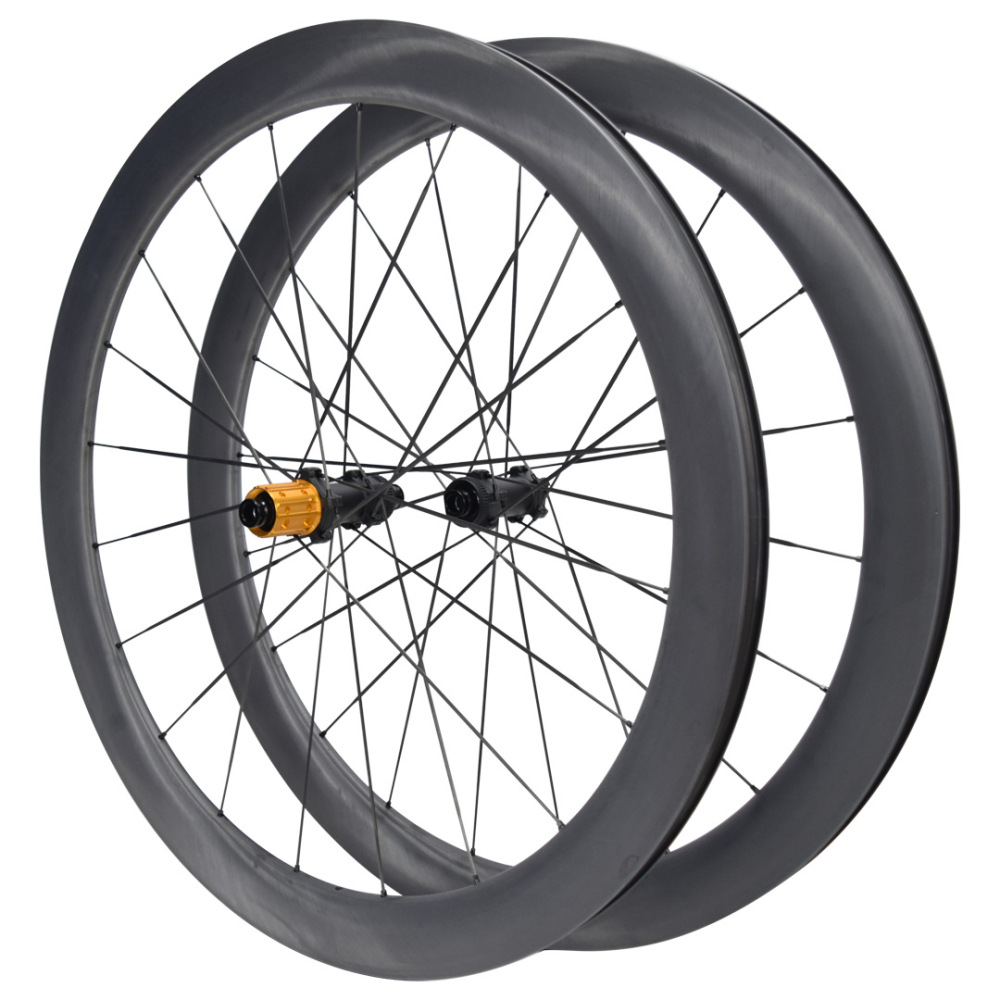

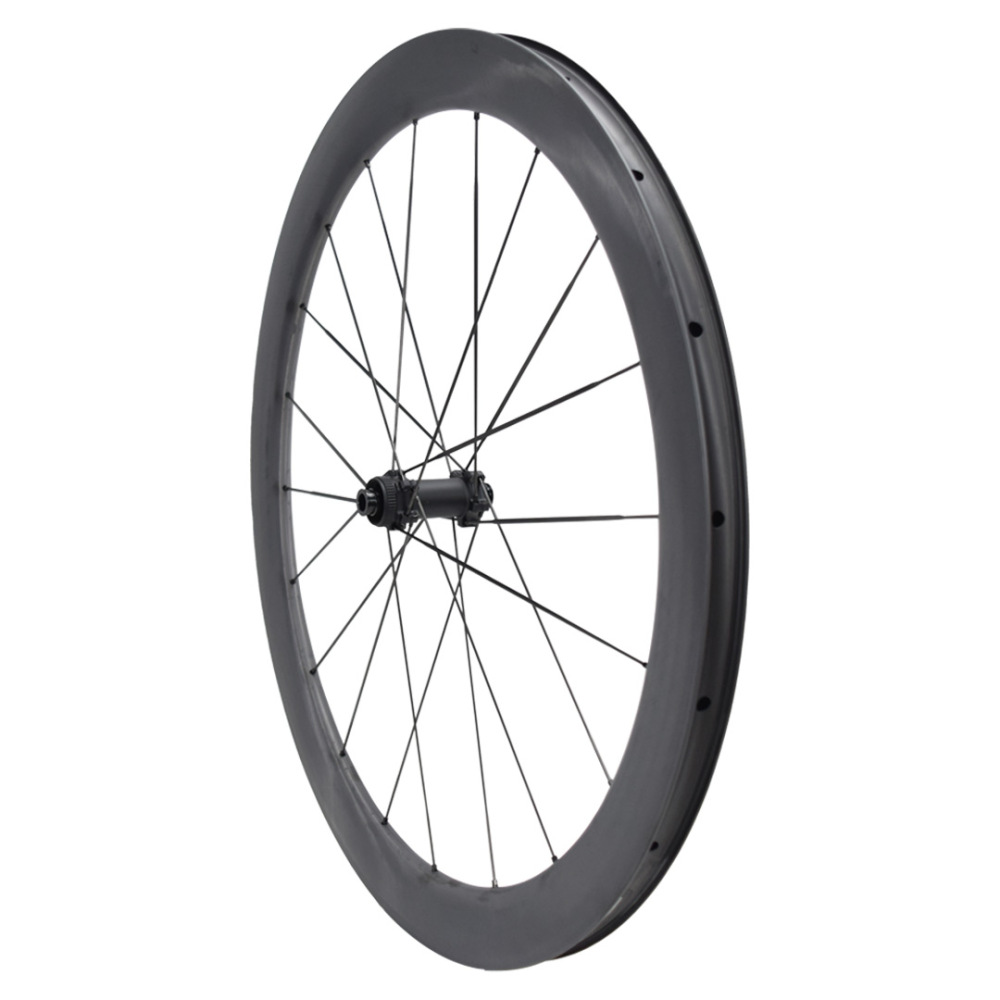

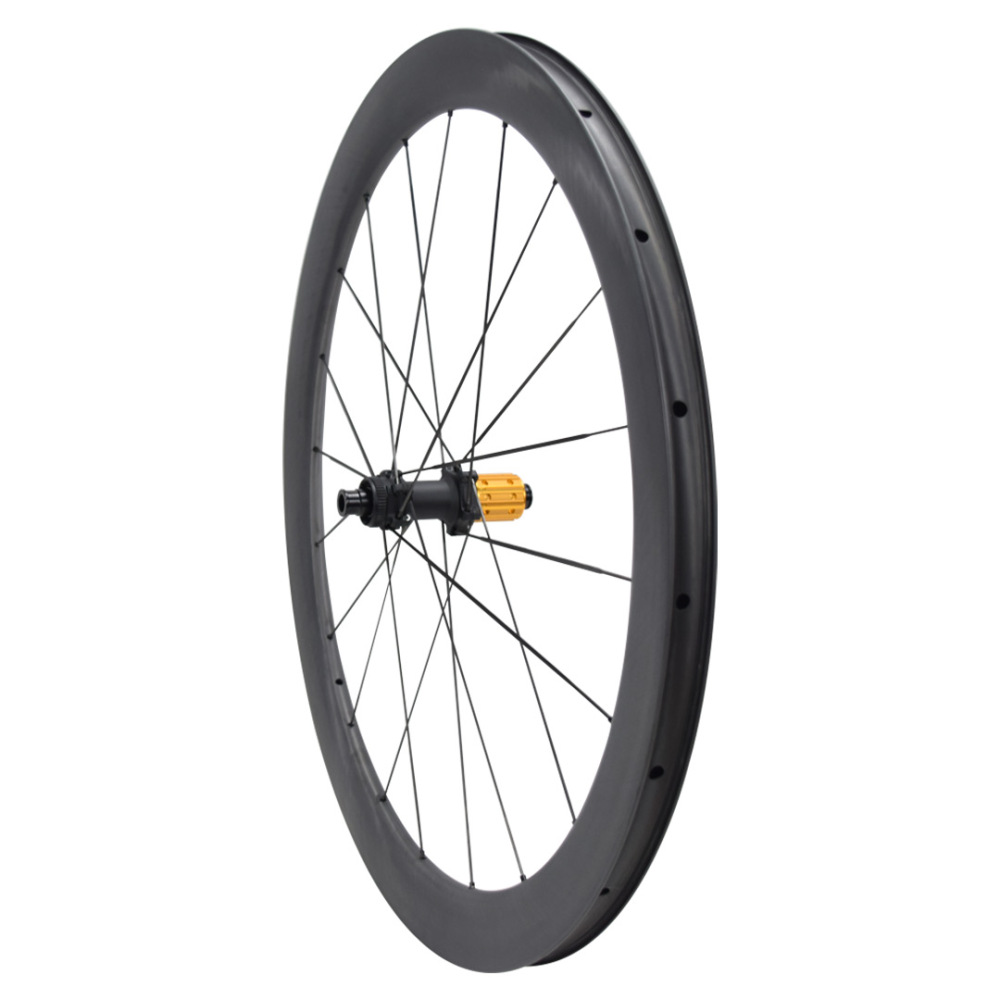

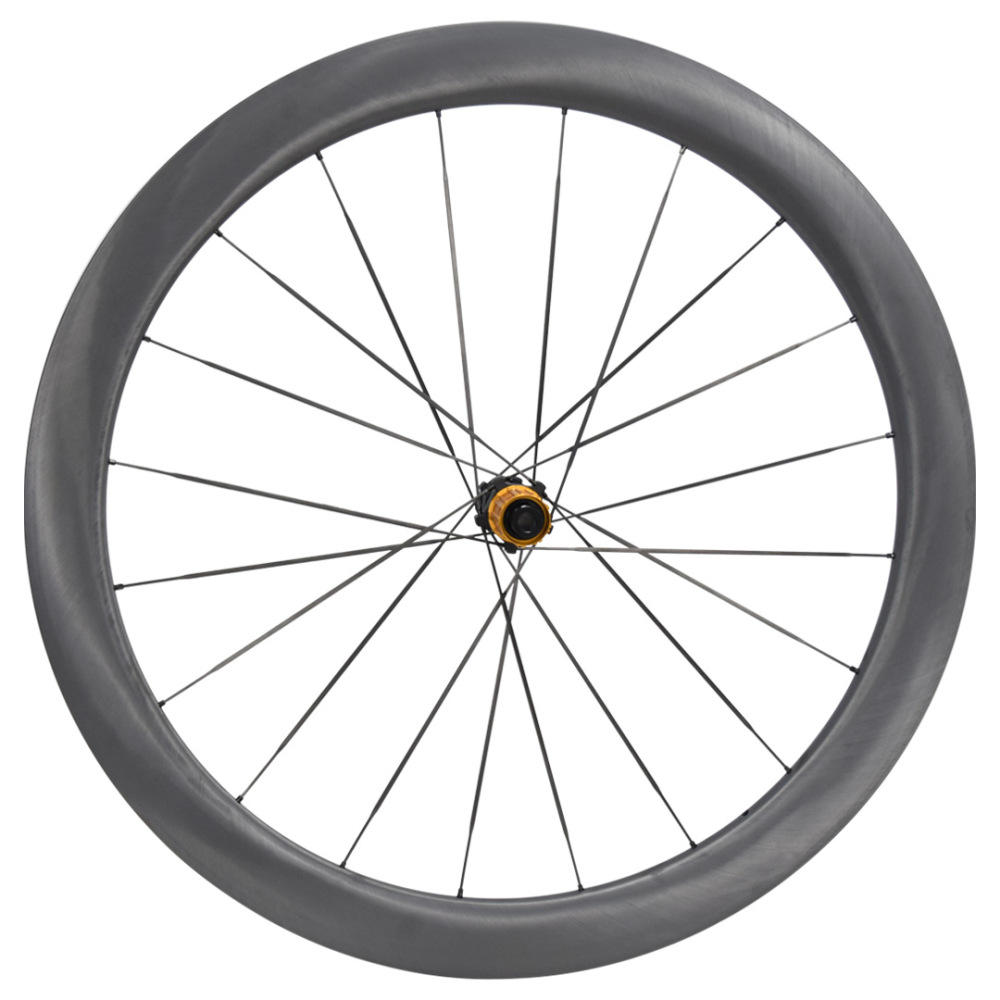

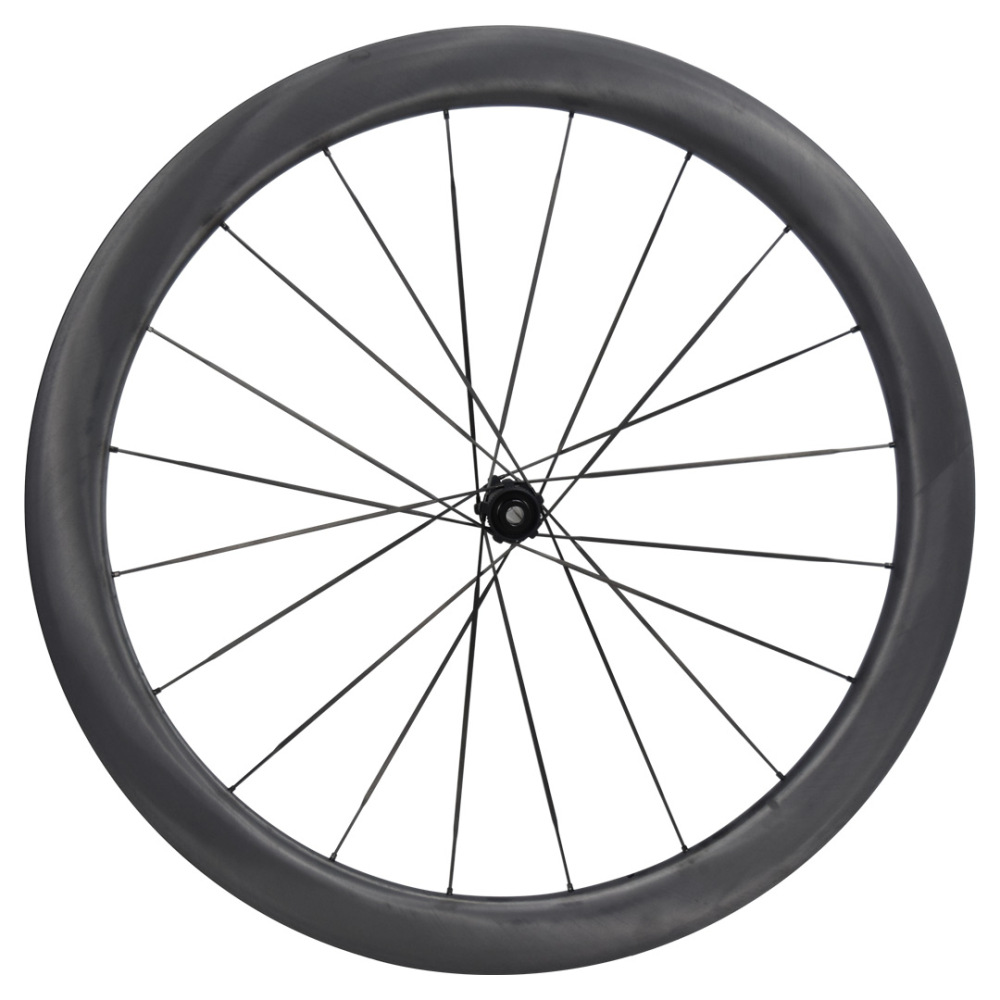

♦Carbon spoke wheelset SA-CS07
⇒Road disc brake carbon wheel build with 28mm outer wide rim (21mm inner wide)
| Model |
Deep |
Outer wide |
Rim type |
Front size |
Rear Size |
Spoke |
Holes |
Weight (+/-3%) |
| SA45CT-28 |
45mm |
28mm |
Tubeless |
12*100mm |
12*142mm |
3.5/5.2mm carbon spoke |
20H/20H |
1336g(3.5mm spoke) |
| SA50CT-28 |
50mm |
28mm |
Tubeless |
12*100mm |
12*142mm |
3.5/5.2mm carbon spoke |
20H/20H |
1356g(3.5mm spoke) |
⇒Road disc brake carbon wheel build with 30mm outer wide rim (24mm inner wide)
| Model |
Deep |
Outer Wide |
Rim type |
Front size |
Rear size |
Spoke |
Holes |
Weight(+/-3%) |
| SA45CT-30 |
45mm |
45mm |
Tubeless |
12*100mm |
12*142mm |
3.5/5.2mm carbon spoke |
20H/20H |
1336g(3.5mm spoke) |
| SA50CT-30 |
50mm |
50mm |
Tubeless |
12*100mm |
12*142mm |
3.5/5.2mm carbon spoke |
20H/20H |
1356g(3.5mm spoke) |
