AINEKA 700C 3-Spoke carbon wheel With 70-75mm Depth Rim
➠3-spoke carbon wheels wavy depth, an aerodynamic weapon born for speed◆
3-spoke carbon wheels with wavy depth – an aerodynamic weapon built for speed. Premium carbon delivers lightweight durability; the wavy profile cuts drag, boosts straight-line speed and cornering stability. Engineered for competitive riders, it turns every effort into faster rides and a clear performance edge.
| Model |
Hub size |
Brake type |
Rim width |
Rim depth |
Terrain |
Tire type |
Weight |
| 3S-705V-Road-F |
9*100mm |
Rim Brake |
28mm |
70-75mm |
Road/TT |
Clincher/Tubeless |
950g(+/-3%) |
| 3S-705V-Road-R |
9*135mm |
Rim Brake |
28mm |
70-75mm |
Road/TT |
Clincher/Tubeless |
1050g(+/-3%) |
| 3S-705DB-Road-F |
12*100mm |
Disc Brake |
28mm |
70-75mm |
Road/TT |
Clincher/Tubeless |
950g(+/-3%) |
| 3S-705DB-Road-R |
12*142mm |
Disc Brake |
28mm |
70-75mm |
Road/TT |
Clincher/Tubeless |
1050g(+/-3%) |
| 3S-705-Track-F |
9*100mm |
N/A |
28mm |
70-75mm |
Track |
Clincher/Tubeless |
1030g(+/-3%) |
| 3S-705-Track-R |
10*120mm |
N/A |
28mm |
70-75mm |
Track |
Clincher/Tubeless |
1160g(+/-3%) |
➠Feature◆

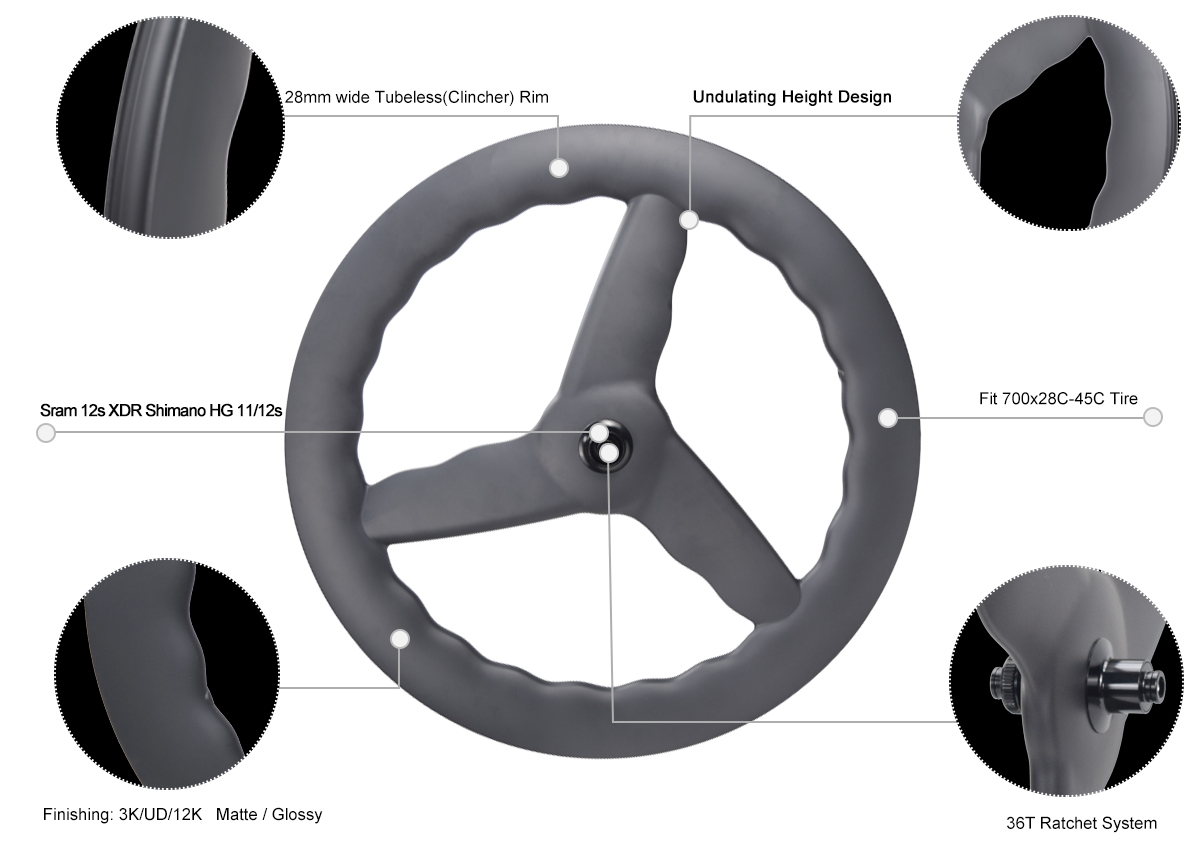

- The perfect 28mm outer width + 22.5mm inner width ratio perfectly matches the 700x28C-45C wide tire specifications, significantly enhancing grip and riding stability while maintaining excellent aerodynamic performance. The optimized inner width allows for a more ideal tire spread, effectively reducing rolling resistance and giving riders greater confidence when cornering.
- A balanced wheel depth of 70-75mm is ideal for high-speed riding. Compared to deeper wheelsets, it significantly reduces crosswind interference, making it suitable for various racing scenarios such as road races, time trials, and triathlons. The unique wave-shaped rim profile subtly disrupts airflow, minimizing turbulence and contributing to a comprehensive improvement in aerodynamic performance.
- Combined with a carbon fiber gradient spoke design, the spokes taper from thick to thin to 10mm, effectively reducing wind resistance while maintaining structural rigidity. Whether sprinting or descending steep slopes, it provides stable support for the rider.
-
- Rim Width: 28mm Outer/22.5mm Inner
- Rim Depth: 70-75mm wavy depth
- Hub: 36T ratchet system Shimano HG 11/12s or SRAM 12s XDR for Disc brake
- Tire Type: Tubeless
- Finish Options: UD matte or glossy
- Brake Type: Disc brake, rim brake or track fixed gear optional
- Tire Pressure: 125psi/8.6bar
