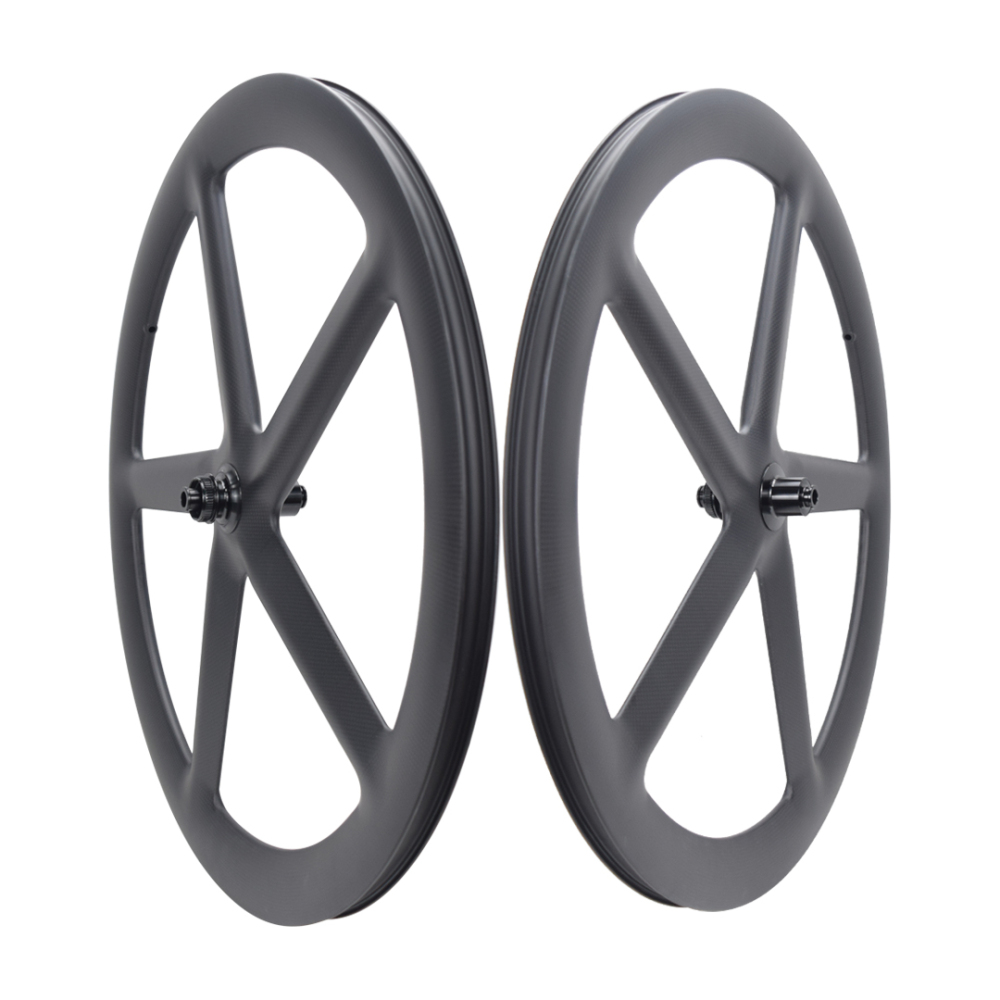

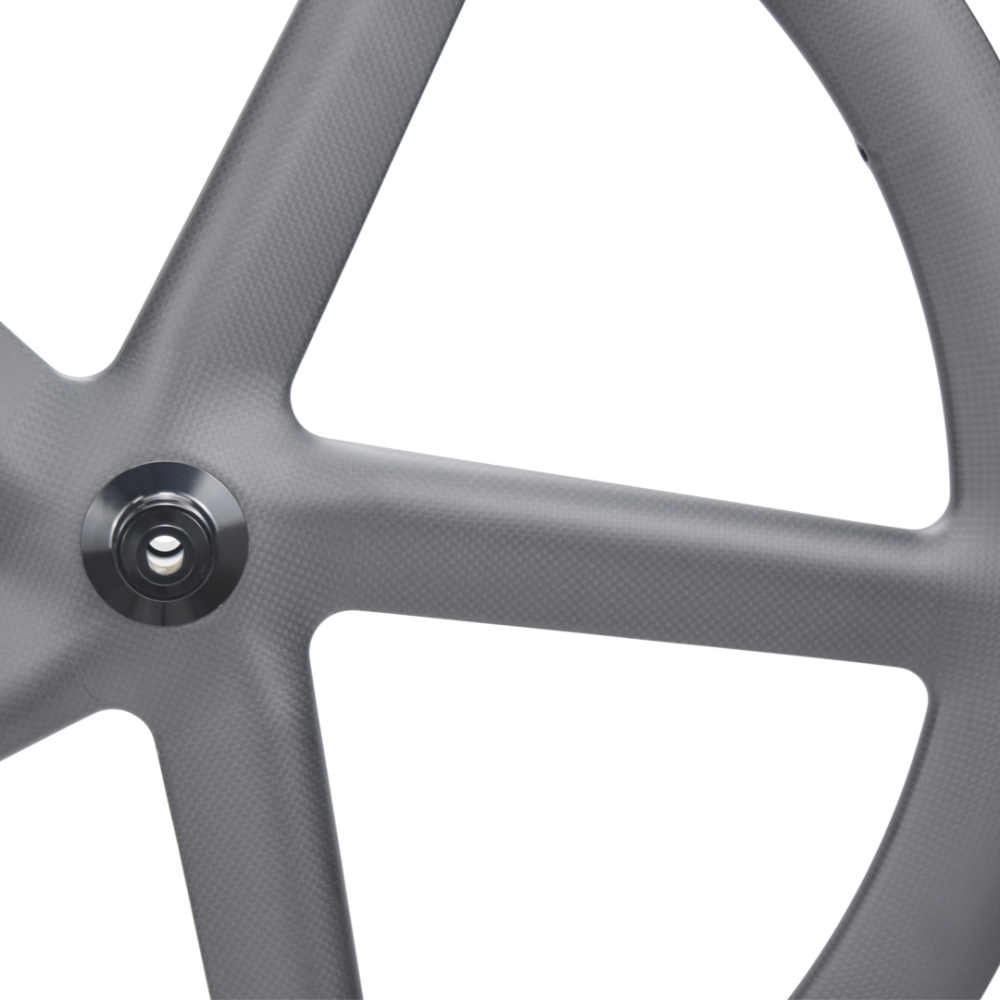

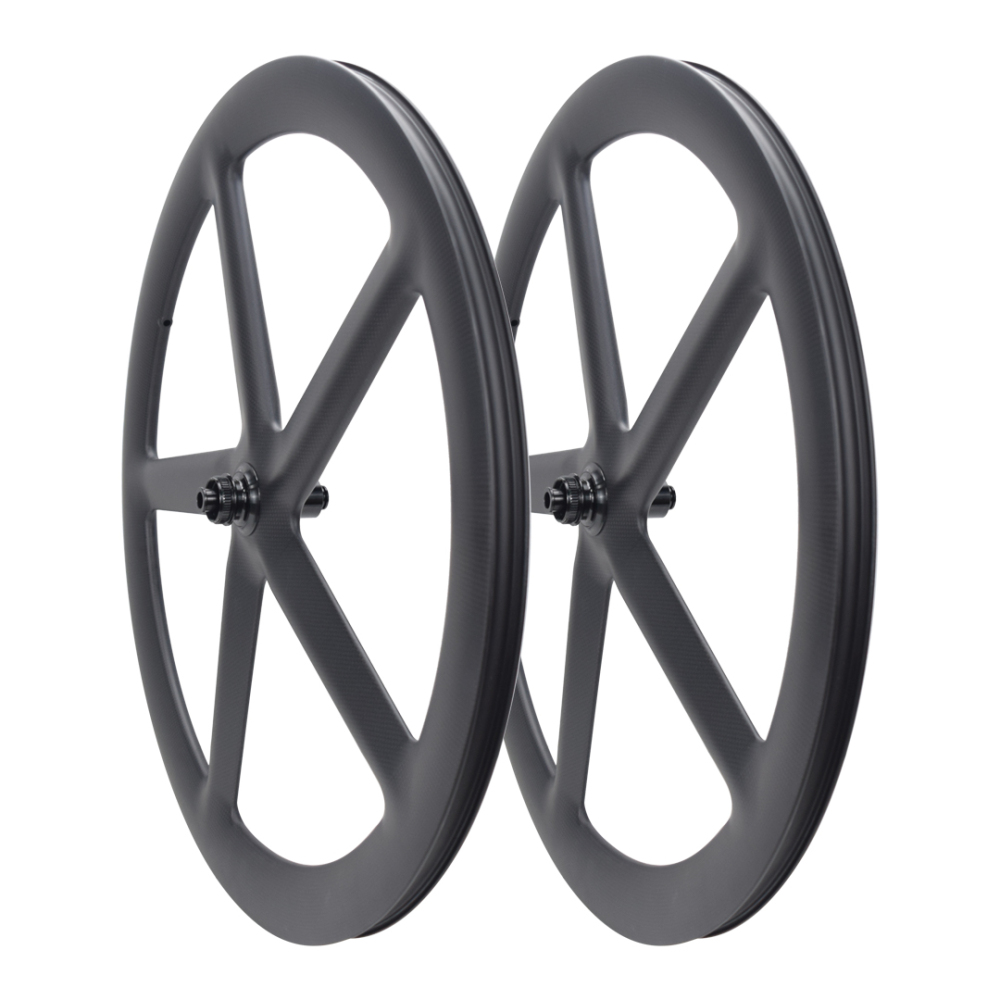

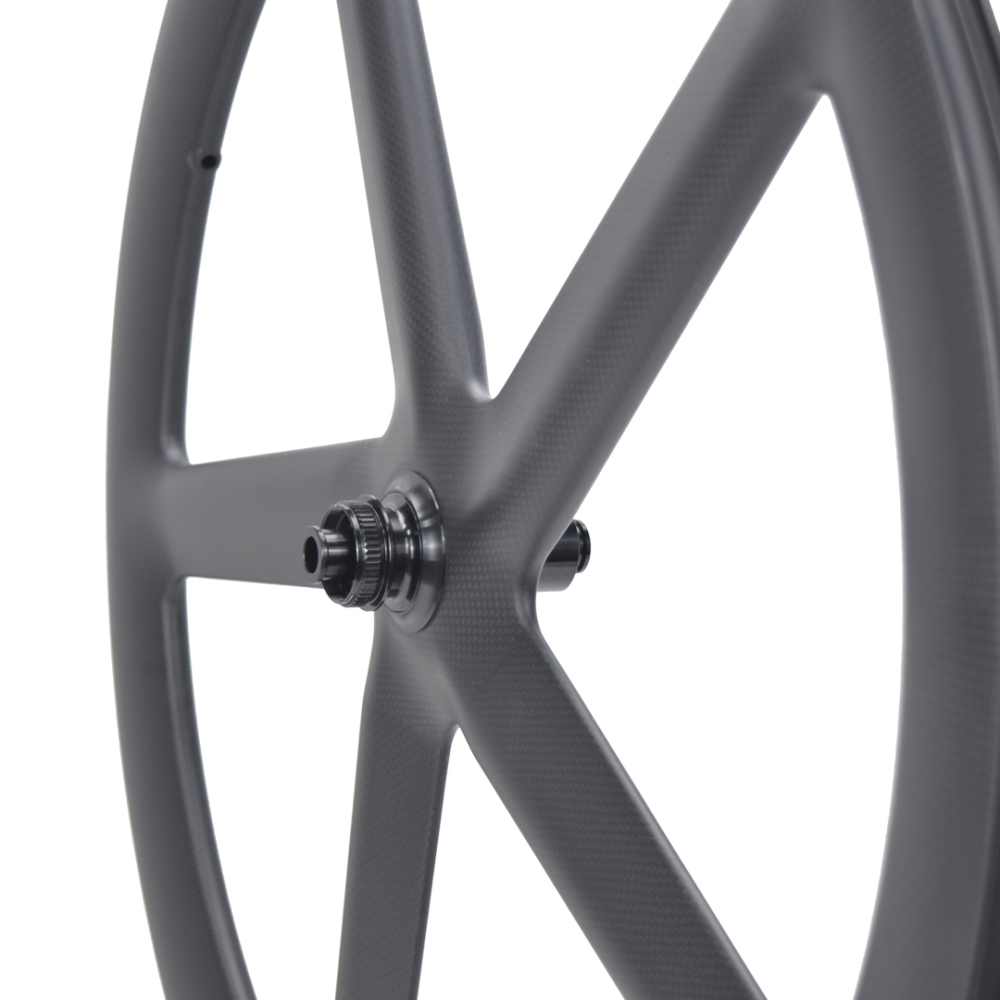

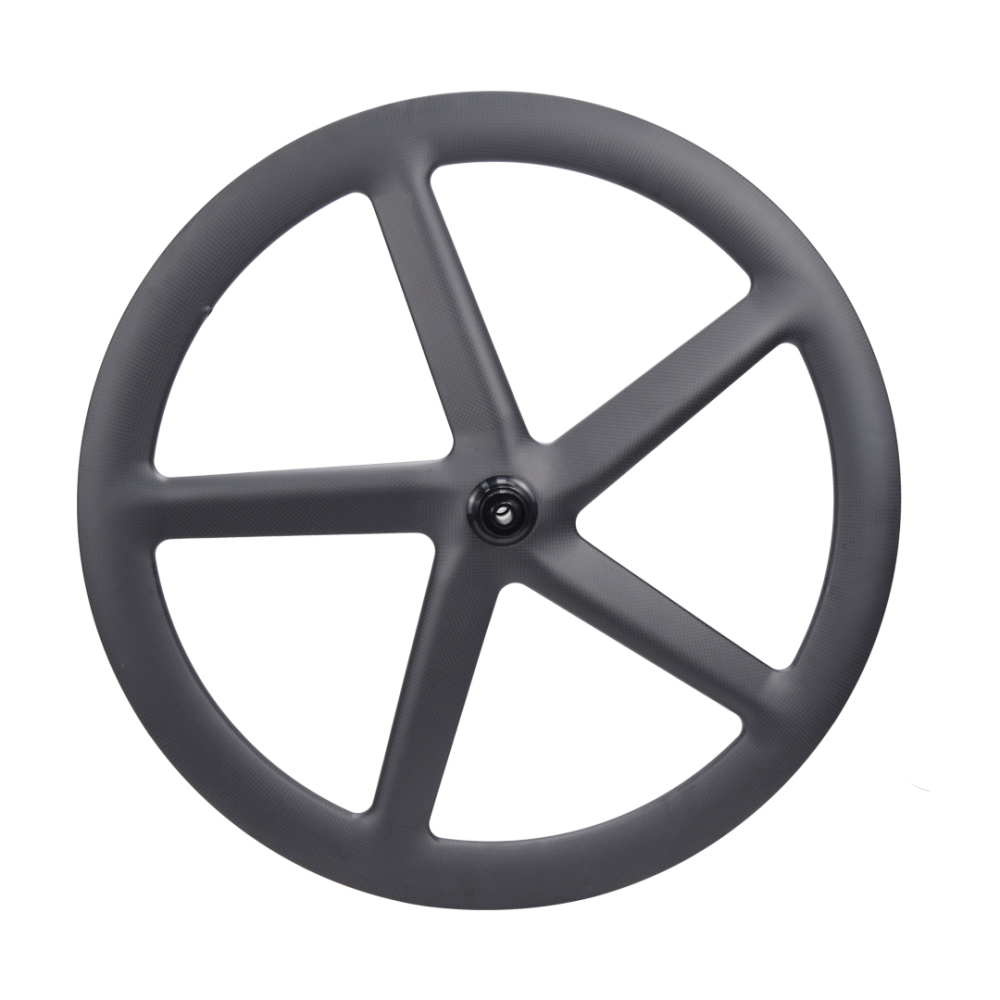

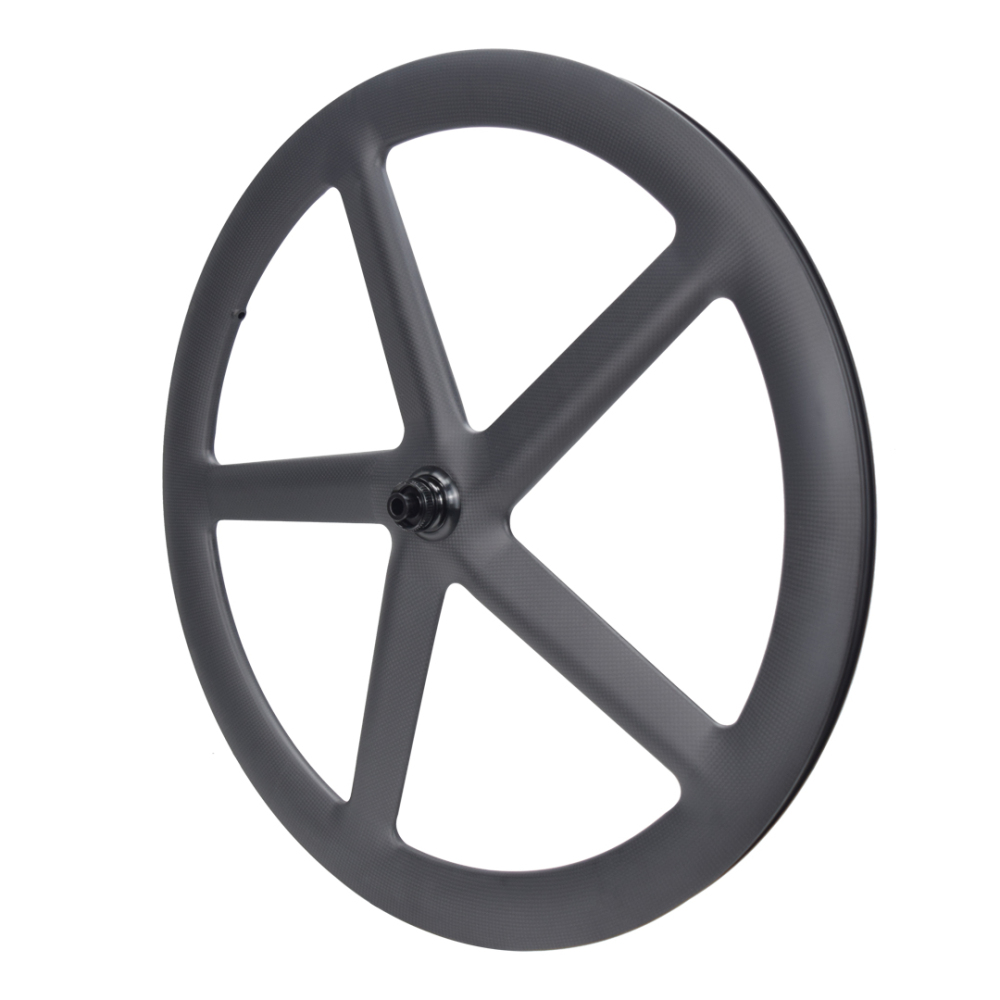

AINEKA 700C 5-spoke full carbon wheel for rim brake or disc brake
➠Aerodynamic & Stiff 5-Spoke Design◆
Inspired by supercar aerodynamics, the
5-spoke integrated structure cuts through air resistance, letting you maintain higher speeds with less effort . The one-piece carbon construction delivers exceptional lateral stiffness, ensuring every pedal stroke translates directly into forward momentum—ideal for sprints, climbs, and track sessions . Beyond performance, the sleek 5-spoke profile adds a futuristic, high-end look that sets your bike apart on any route.
| Model |
Hub size |
Brake type |
Rim outer width |
Rim depth |
Terrain |
Tire type |
Weight |
| 5S-Road-Front |
5*100mm QR |
Rim Brake |
25mm |
52mm |
Road/TT |
Clincher/Tubeless |
850g(+/-3%) |
| 5S-Road-Rear |
5*130mm QR |
Rim Brake |
25mm |
52mm |
Road/TT |
Clincher/Tubeless |
950g(+/-3%) |
| 5S-Road-Front |
12*100mm TA |
Disc Brake |
25mm |
52mm |
Road/TT |
Clincher/Tubeless |
850g(+/-3%) |
| 5S-Road-Rear |
12*142mm TA |
Disc Brake |
25mm |
52mm |
Road/TT |
Clincher/Tubeless |
950g(+/-3%) |
| 5S-Track-Front |
9*100mm |
N/A |
25mm |
52mm |
Track |
Clincher/Tubeless |
950g(+/-3%) |
| 5S-Track-Rear |
10*120mm |
N/A |
25mm |
52mm |
Track |
Clincher/Tubeless |
1050g(+/-3%) |
Whether you’re chasing podium finishes, commuting through city streets, or exploring open roads, this 700C full carbon wheelset combines versatility, speed, and durability. It’s engineered to perform in every scenario—no compromises, no limits.

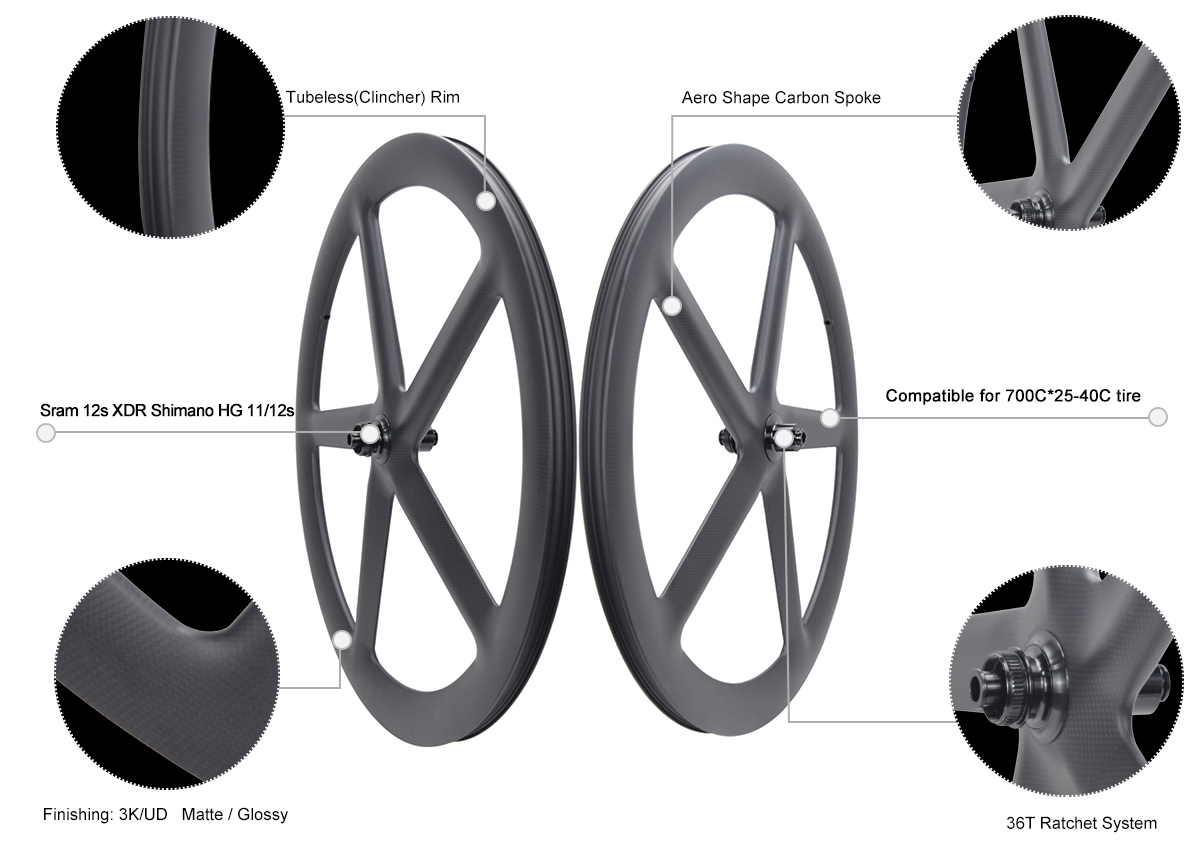

➠Feature◆
- Rim width: 25mm Outer/18mm Inner
- Rim depth: 52mm depth
- Disc hub: 36T ratchet system Shimano HG 11/12s or SRAM 12s XDR for disc brake
- Tire type: Clincher /Tubeless
- Finish options: 3K/UD matte or glossy
- Brake type: disc brake and rim brake, track hub optional
- Tire pressure: 125psi/8.6bar
