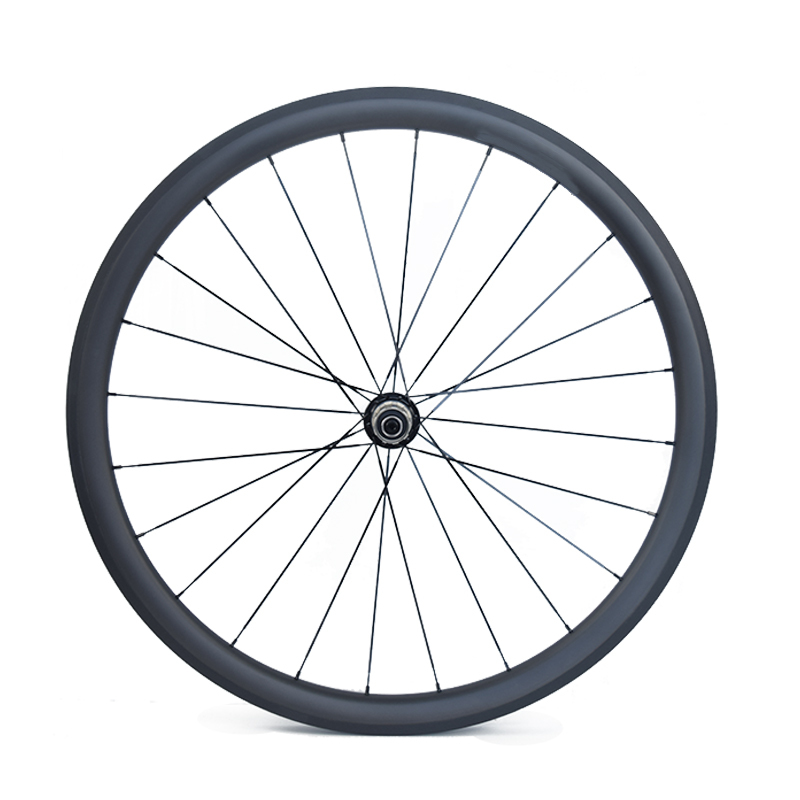

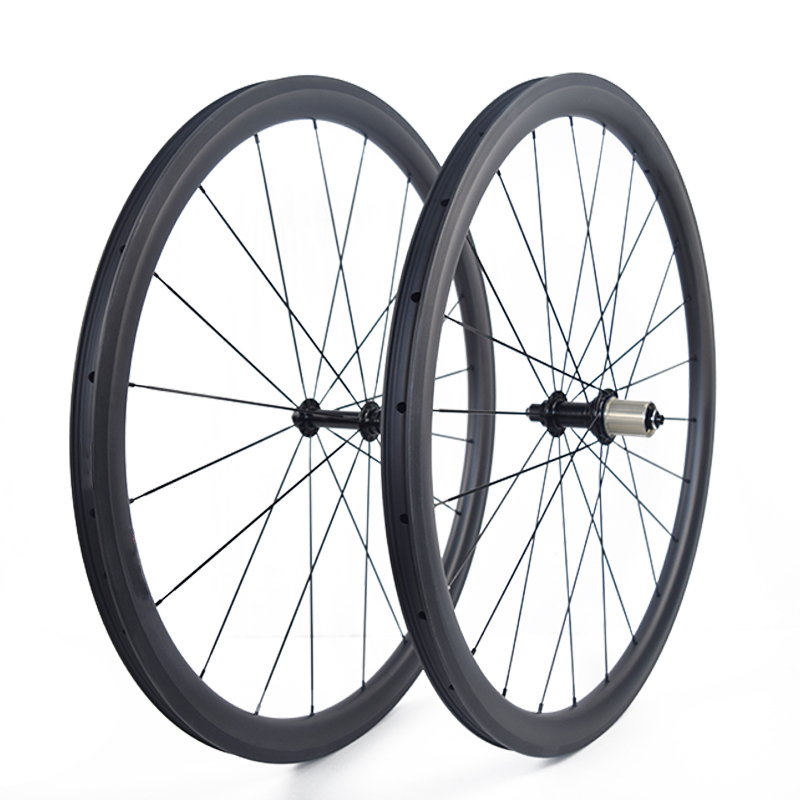

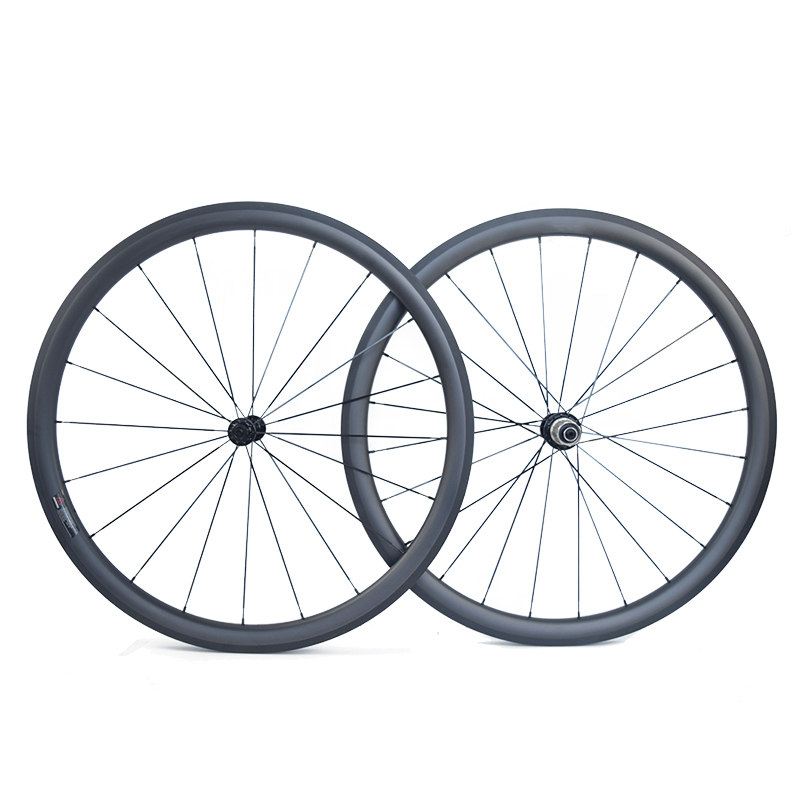

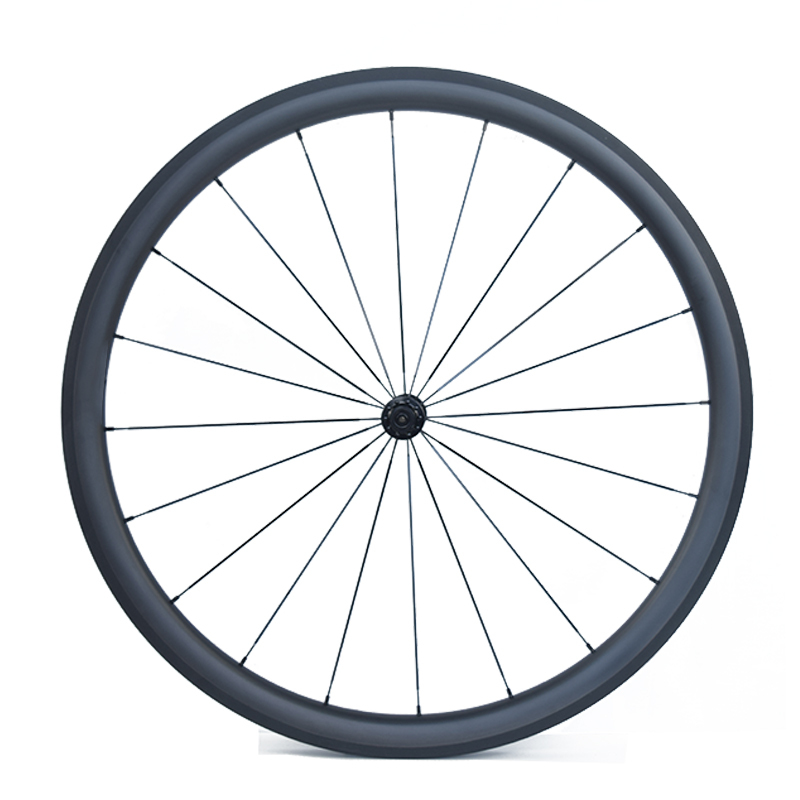

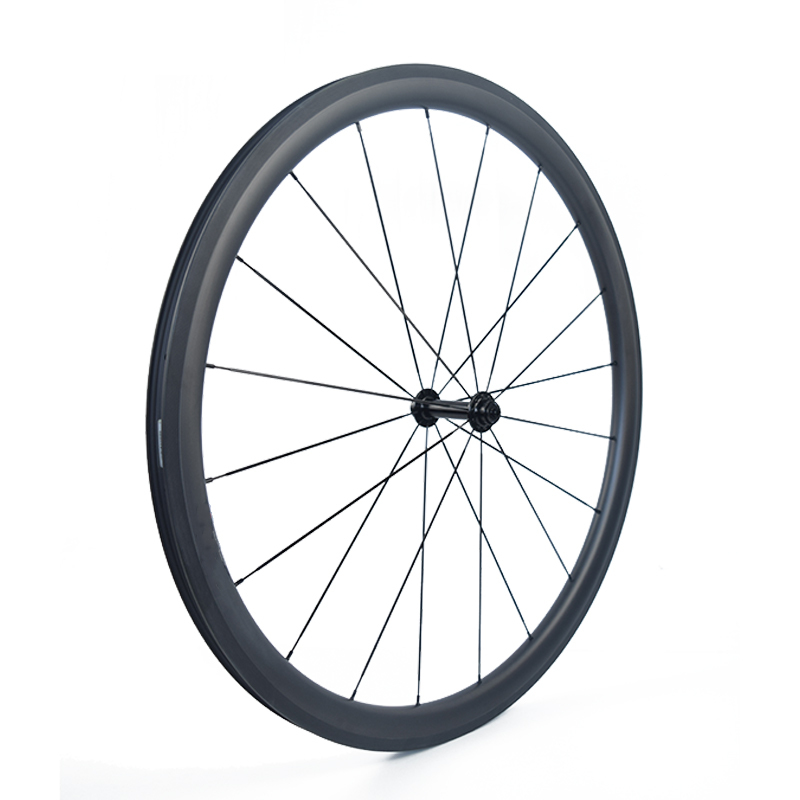

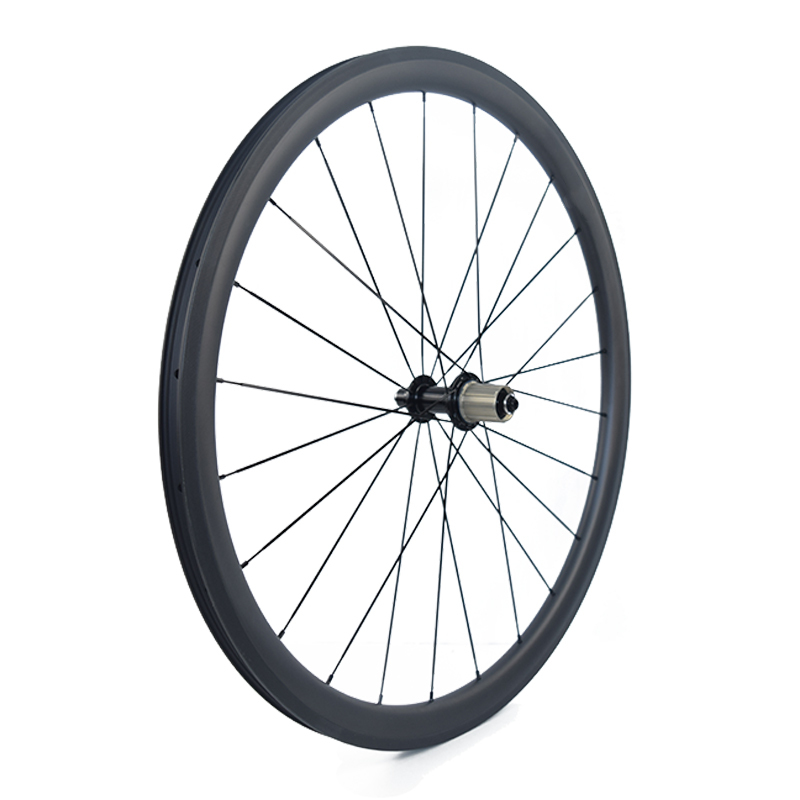

AINEKA Lightweight Aero Carbon Wheelset 700C for Road Bicycles
Engineered for road cyclists who demand both speed and control, this rim brake wheelset combines cutting-edge carbon technology with precision braking performance. Elevate your ride today!

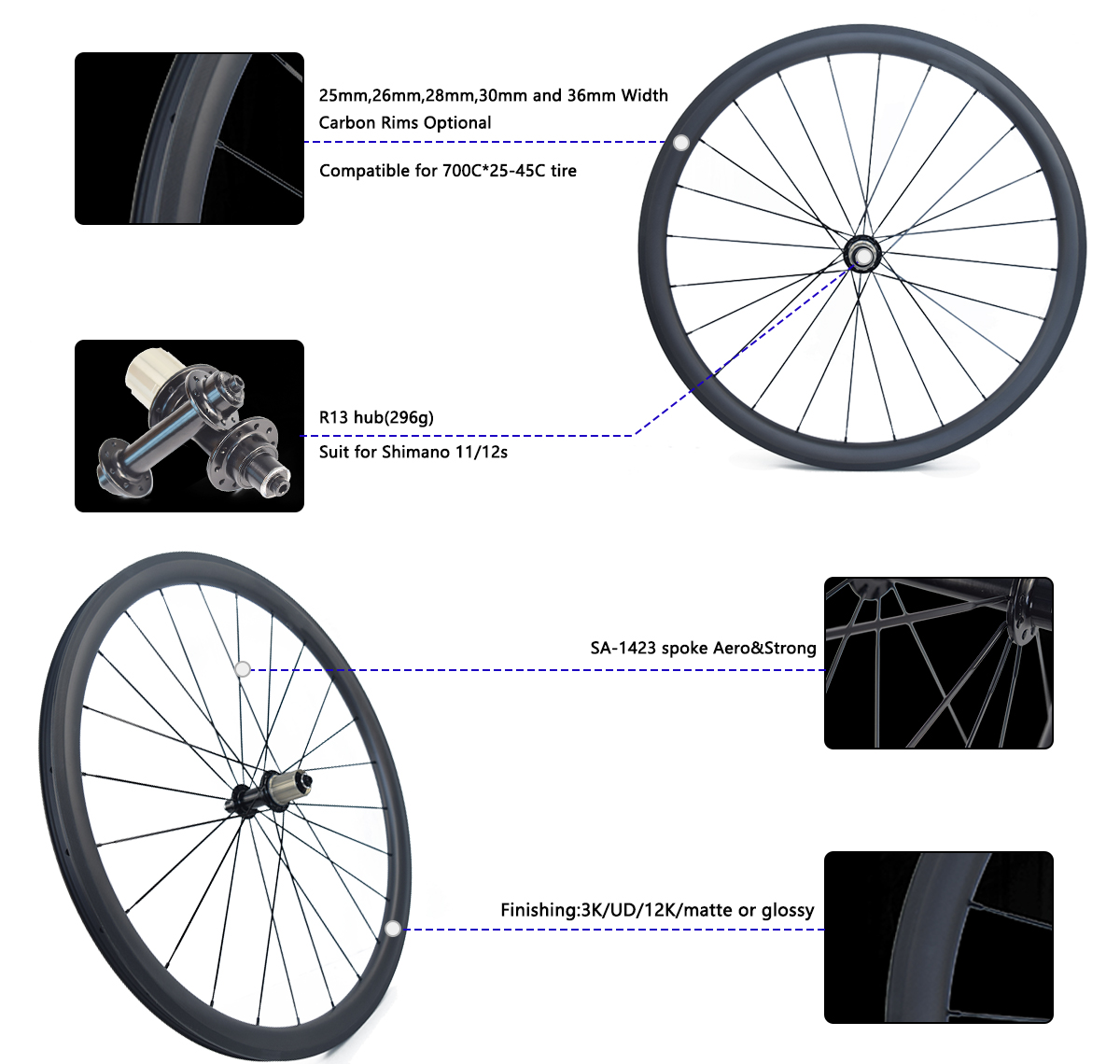

♦Key features
•Rim Brake-Specific Design
Precision-engineered for rim brake systems, featuring a flat, heat-dissipating braking surface that delivers consistent, reliable stopping power even at high speeds.
• Versatile Carbon Rim Sizes
Choose from 25mm/26mm/28mm width carbon rims, fully compatible with 700C*25-45C tires for both paved roads and light gravel riding.
• Ultra-Light R13 Hub
Weighing just 296g, this premium hub is perfectly compatible with Shimano 11/12-speed drivetrains, ensuring smooth power transfer and responsive rolling.
• Aerodynamic SA-1423 Spokes
Wind-cutting aero spokes balance exceptional strength with low drag, enhancing stability and efficiency during high-speed rides.
• Customizable Carbon Finishes
Select from 3K/UD/12K carbon weave patterns, with a choice of matte or glossy finishes to match your bike’s aesthetic.

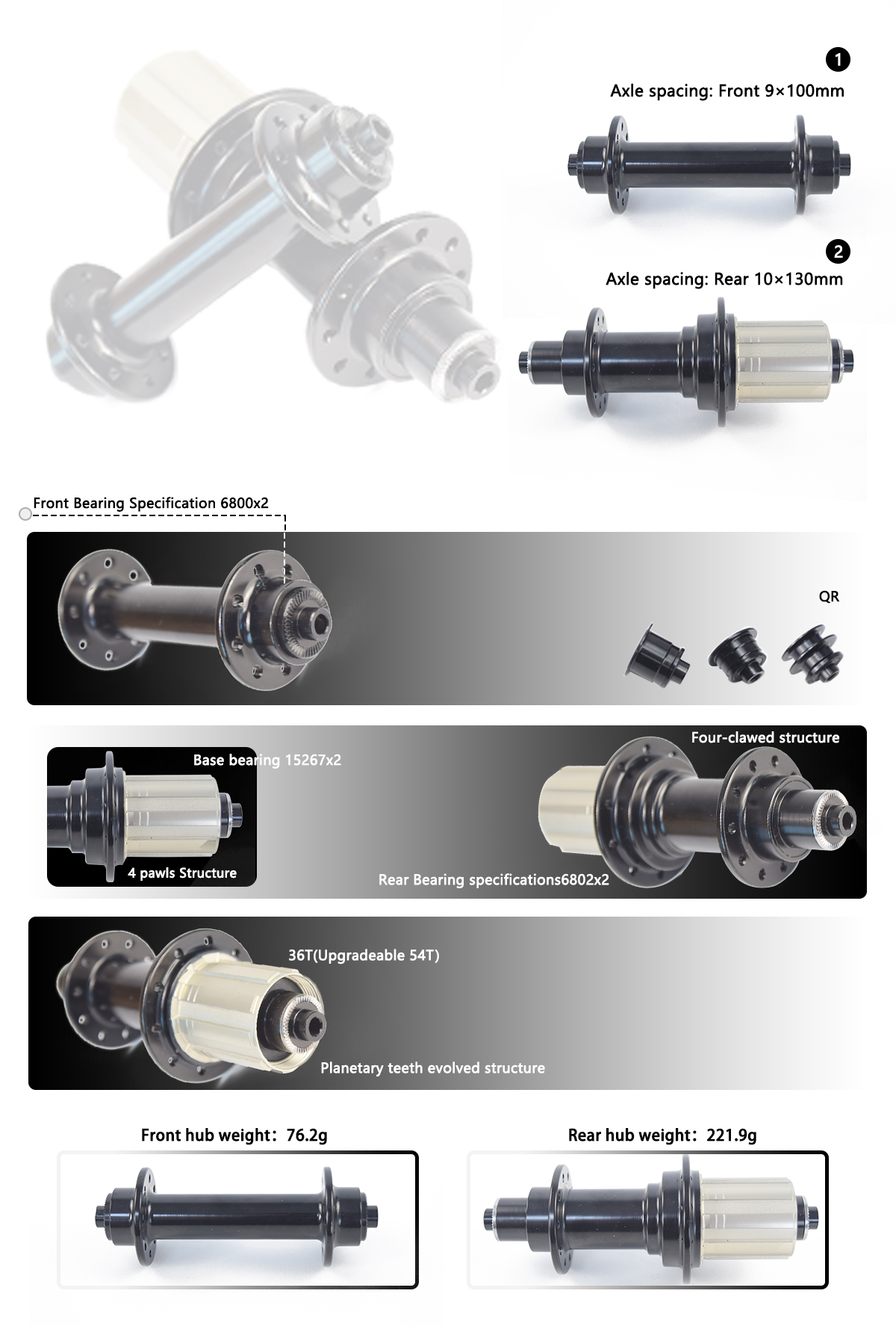

Upgrade your bike’s performance with our precision-engineered hub set, designed for road cyclists who demand speed, durability, and responsive power transfer.
♦Key features

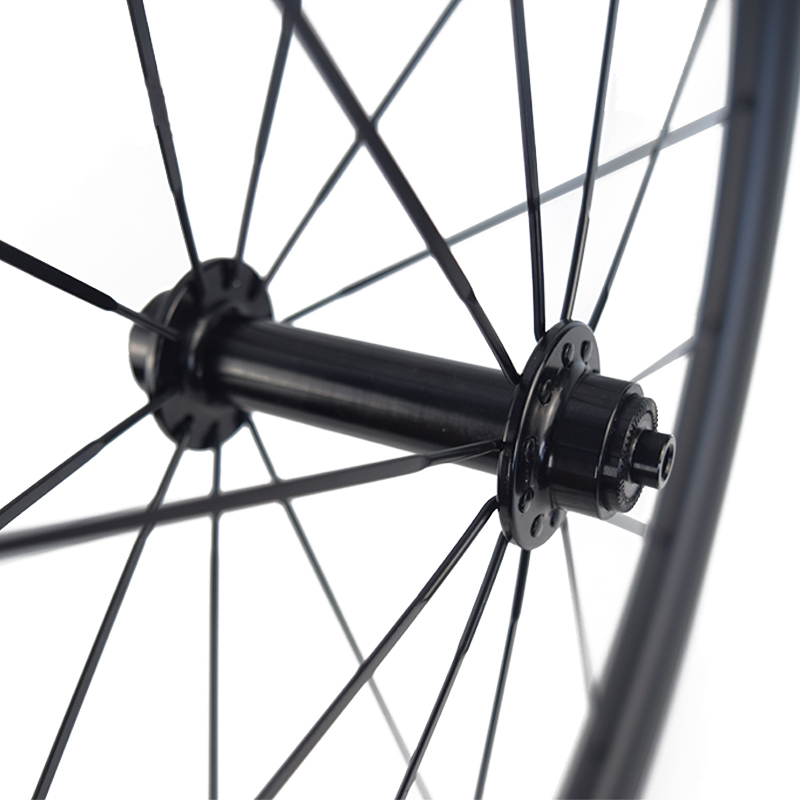

• Precision Axle Spacing
Front hub: 9×100mm | Rear hub: 10×130mm, optimized for rim brake road bike frames and ensuring a secure, stable fit.
• Ultra-Lightweight Design
Front hub: 76.2g | Rear hub: 221.9g, reducing rotational weight for quicker acceleration and a more responsive ride.
• High-Performance Bearings
Front: 6800×2 bearings for smooth rolling | Rear: 6802×2 bearings + 15267×2 base bearings, delivering exceptional durability and low friction.

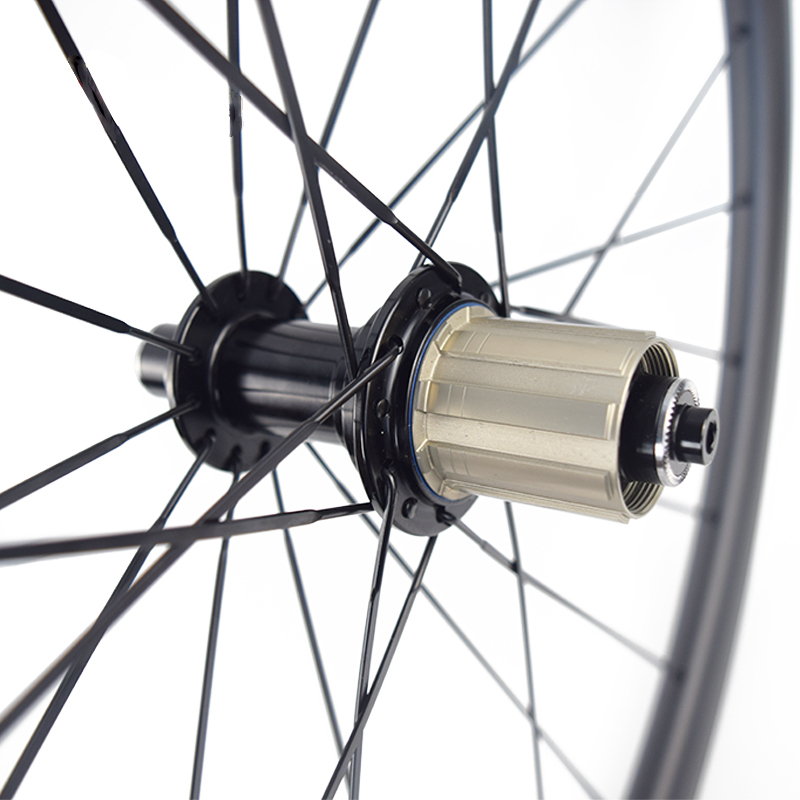

• Advanced Engagement Structure
Rear hub features a 4-pawl design, 4-claw structure, and planetary teeth evolved mechanism (36T, upgradeable to 54T), ensuring near-instant power transfer and reliable engagement.
• Wide Compatibility
Compatible with Shimano 11/12-speed drivetrains and equipped with QR (quick release) fittings for fast, tool-free installation.
♦Key features

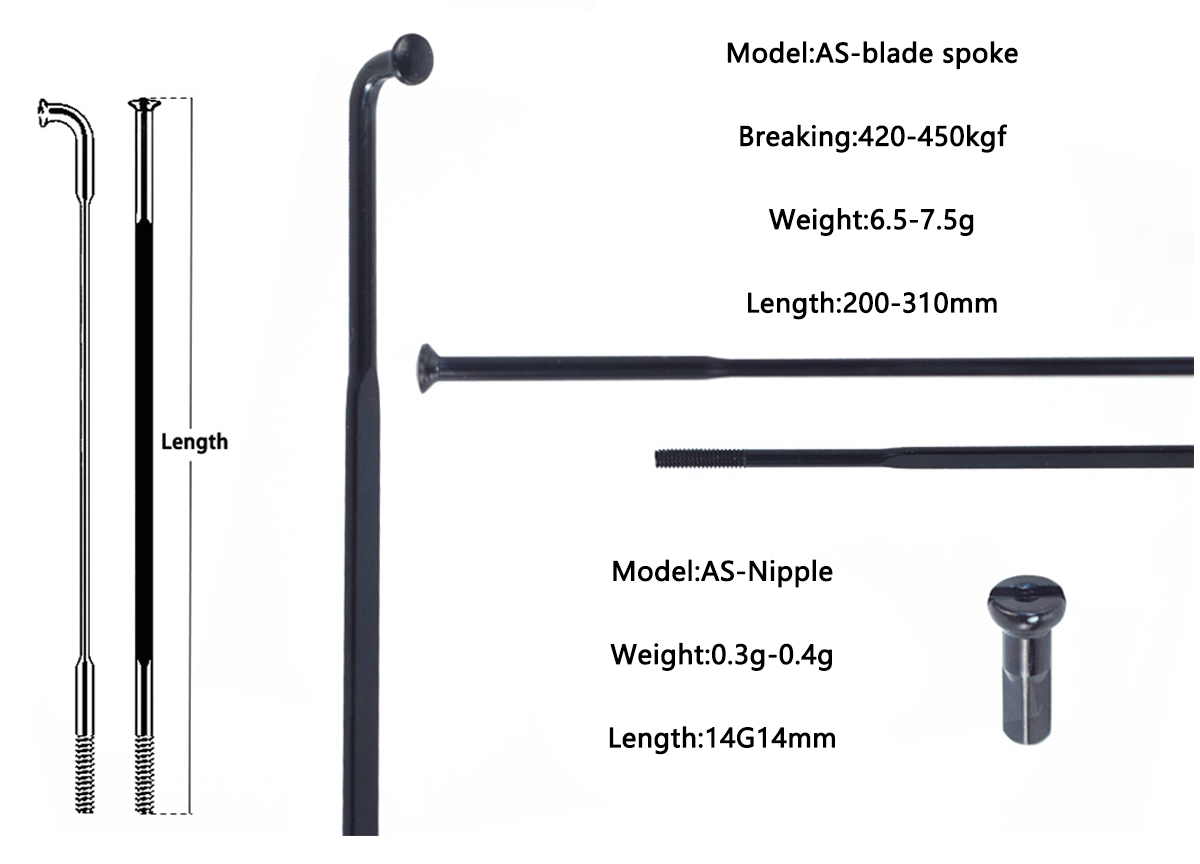

- High Tensile Strength: Withstands extreme riding forces to prevent spoke breakage
- Lightweight Design: Reduces wheel rotational mass for improved acceleration and handling
- Universal Compatibility: Fits most road bikes, mountain bikes, and commuter bicycles
- Corrosion-Resistant Coating: Black finish protects against rust and wear for long-lasting performance
⇒Road disc brake carbon wheels with 26mm wide rim (19mm inner wide): (25mm/28mm/30mm/36mm wide is available too)
| Model |
Depth |
External Width |
Rim Type |
Hub |
Front Size |
Rear Size |
Spoke |
Holes |
Weight(+/-3%) |
| SA30CT-26 |
30mm |
26mm |
Tubeless |
SA-RS04 |
9*100mm |
10*130mm |
SA-1423 |
20H/24H |
1394g |
| SA38CT-26 |
38mm |
26mm |
Tubeless |
SA-RS04 |
9*100mm |
10*130mm |
SA-1423 |
20H/24H |
1454g |
| SA45CT-26 |
45mm |
26mm |
Tubeless |
SA-RS04 |
9*100mm |
10*130mm |
SA-1423 |
20H/24H |
1484g |
| SA50CT-26 |
50mm |
26mm
|
Tubeless
|
SA-RS04
|
9*100mm
|
10*130mm
|
SA-1423
|
20H/24H
|
1524g
|
|
SA60CT-26
|
60mm
|
26mm
|
Tubeless
|
SA-RS04
|
9*100mm
|
10*130mm
|
SA-1423
|
20H/24H
|
1664g
|
Road disc brake carbon rim 26mm wide:
|
Rim
|
SA30CT-26
|
SA38CT-26
|
SA45CT-26
|
SA50CT-26
|
SA60CT-26
|
|
Rim Weight
|
395g±15g
|
425g±15g
|
440g±15g
|
460g±15g
|
530g±15g
|
|
ERD
|
580mm
|
564mm
|
550mm
|
540mm
|
520mm
|
|
Sectional Drawing
|
 |
 |
 |
 |
 |
⇒Road disc brake carbon wheels with 28mm wide rim (21mm inner wide):
|
Model
|
Depth
|
Exteral Width
|
Tire Type
|
Hub
|
Front Size
|
Rear Size
|
Spoke
|
Holes
|
Weight(+/-3%)
|
|
SA30CT-28
|
30mm
|
28mm
|
Tubeless
|
SA-RS04
|
9*100mm
|
10*130mm
|
SA-1423
|
20H/24H
|
1404g
|
|
SA35CT-28
|
35mm
|
28mm
|
Tubeless
|
SA-RS04
|
9*100mm
|
10*130mm
|
SA-1423
|
20H/24H
|
1434g
|
|
SA40CT-28
|
40mm
|
28mm
|
Tubeless
|
SA-RS04
|
9*100mm
|
10*130mm
|
SA-1423
|
20H/24H
|
1454g
|
|
SA45CT-28
|
45mm
|
28mm
|
Tubeless
|
SA-RS04
|
9*100mm
|
10*130mm
|
SA-1423
|
20H/24H
|
1524g
|
|
SA50CT-28
|
50mm
|
28mm
|
Tubeless
|
SA-RS04
|
9*100mm
|
10*130mm
|
SA-1423
|
20H/24H
|
1544g
|
|
SA55CT-28
|
55mm
|
28mm
|
Tubeless
|
SA-RS04
|
9*100mm
|
10*130mm
|
SA-1423
|
20H/24H
|
1634g
|
|
SA60CT-28
|
60mm
|
28mm
|
Tubeless
|
SA-RS04
|
9*100mm
|
10*130mm
|
SA-1423
|
20H/24H
|
1674g
|
Road disc brake carbon rim 28mm wide:
|
Rim
|
SA30CT-28
|
SA35CT-28
|
SA40CT-28
|
SA45CT-28
|
|
Rim Weight
|
400g±15g
|
415g±15g
|
425g±15g
|
460g±15g
|
|
ERD
|
580mm
|
570mm
|
560mm
|
550mm
|
|
Sectional Drawing
|
|
|
|
|
|
Rim
|
SA50CT-28
|
SA55CT-28
|
SA60CT-28
|
|
|
Rim Weight
|
470g±15g
|
515±15g
|
535g±15g
|
|
|
ERD
|
540mm
|
530mm
|
520mm
|
|
|
Sectional Drawing
|
|
|
|
|
