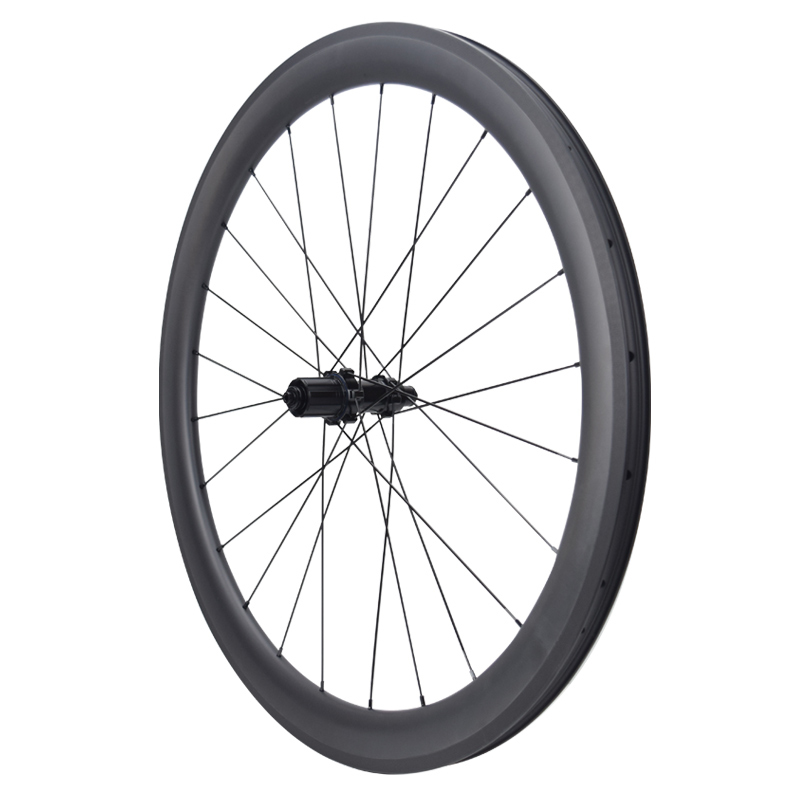

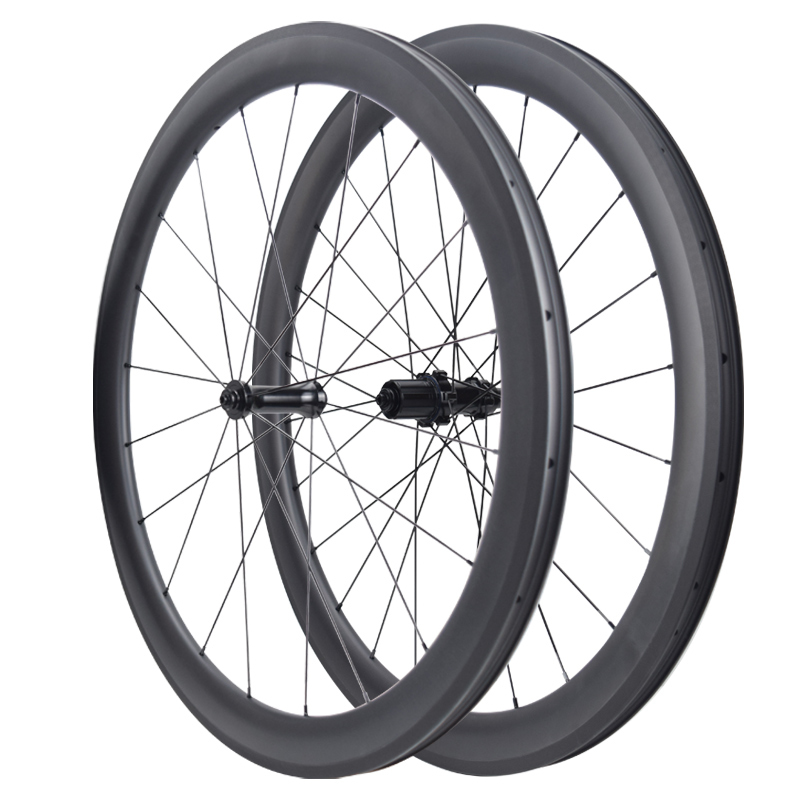

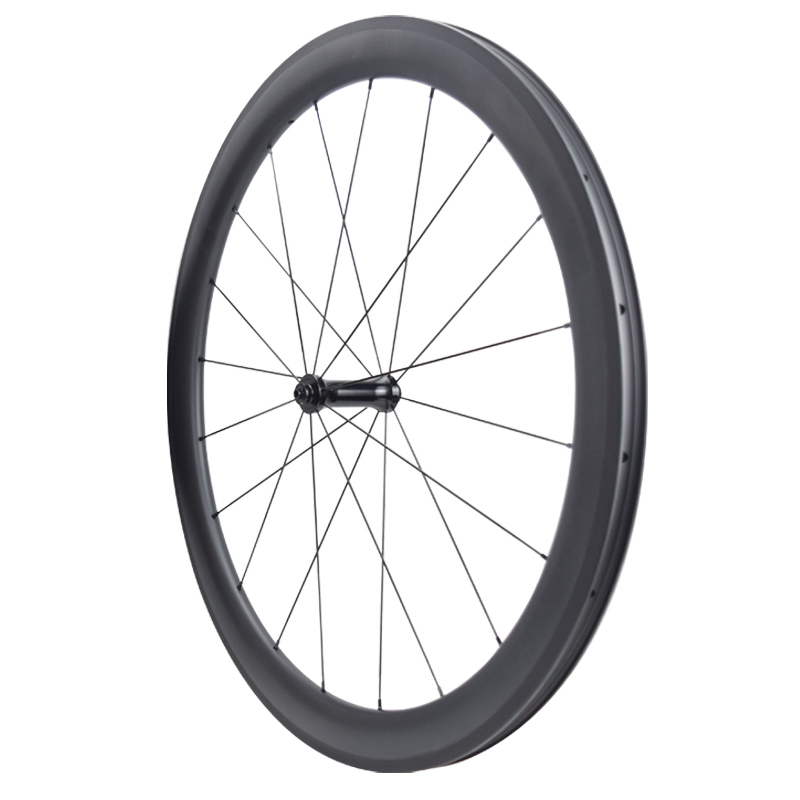

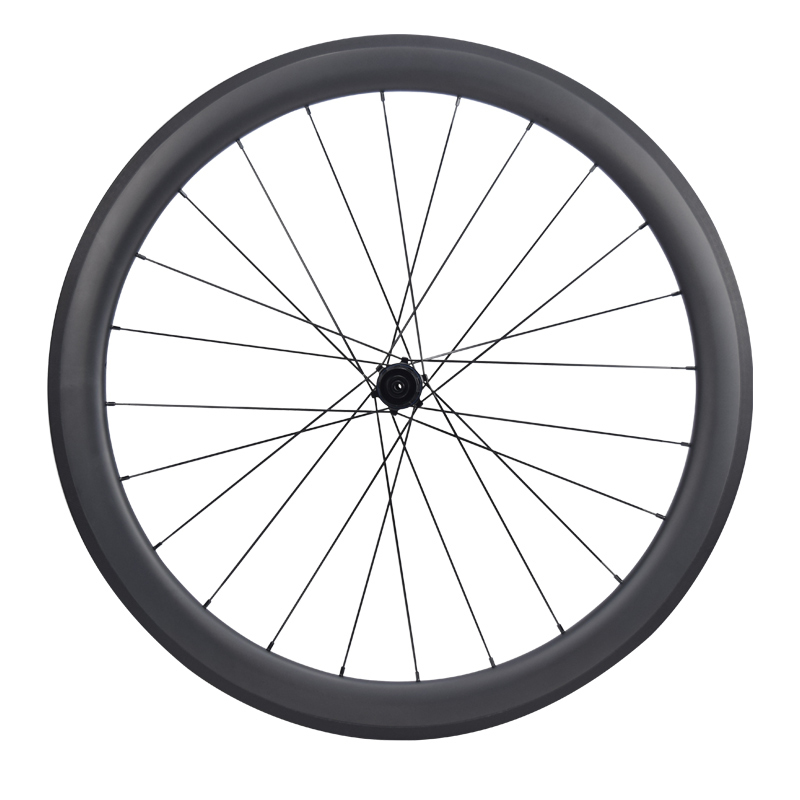

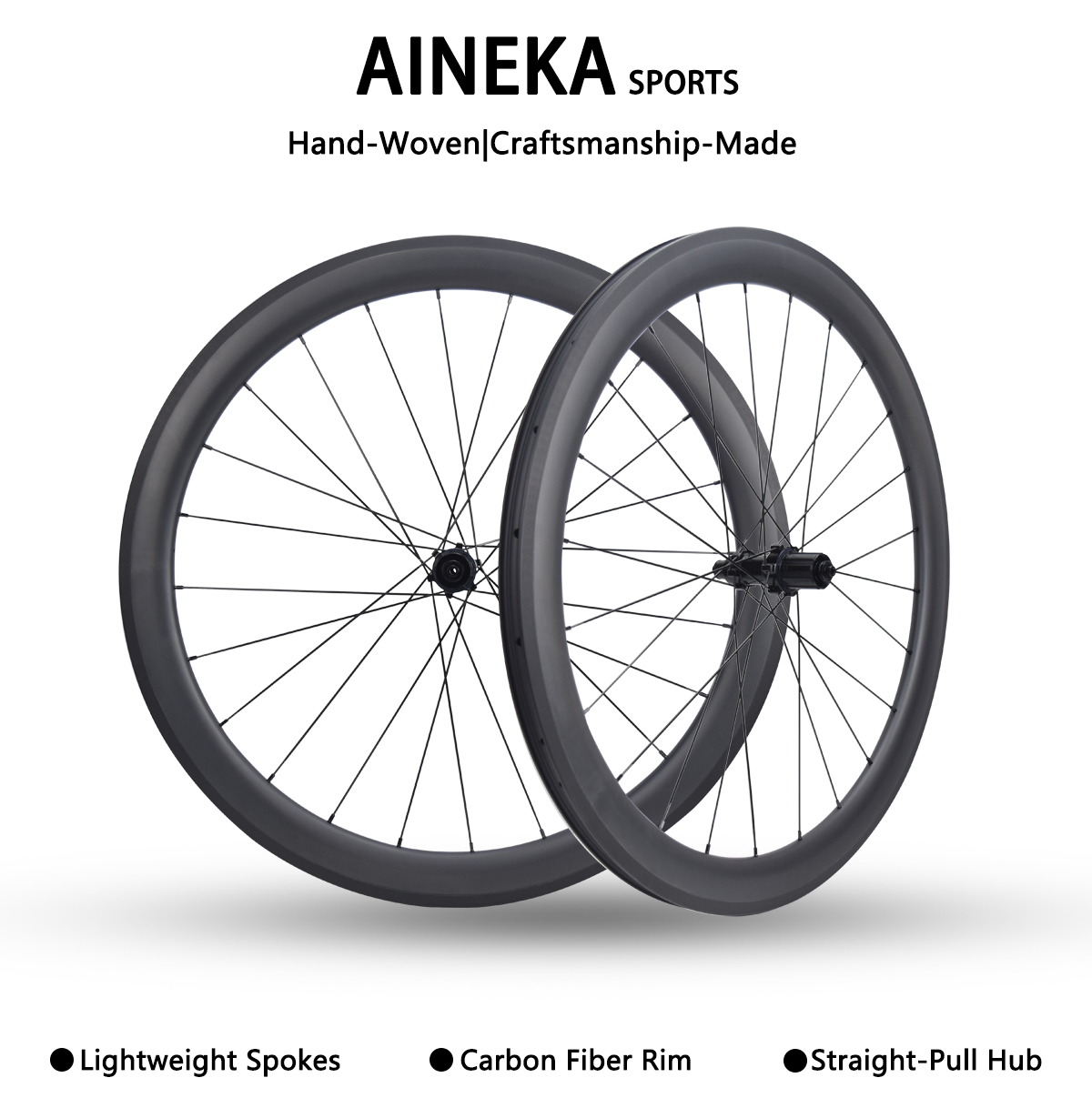

AINEKA Carbon Rim Wheel Set 26-36mm Width Fit 700C*25-45C Tire
Crafted from high-grade carbon fiber, the wheel set achieves an optimal balance of lightweight and rigidity, minimizing rotational weight for faster acceleration and better climbing performance. The robust build also ensures long-lasting durability for daily rides and intense cycling sessions.
Engineered for road cycling enthusiasts, this carbon fiber wheel set delivers unbeatable aerodynamics, durability and lightweight performance, making it the perfect upgrade for your ride.
♦Key features

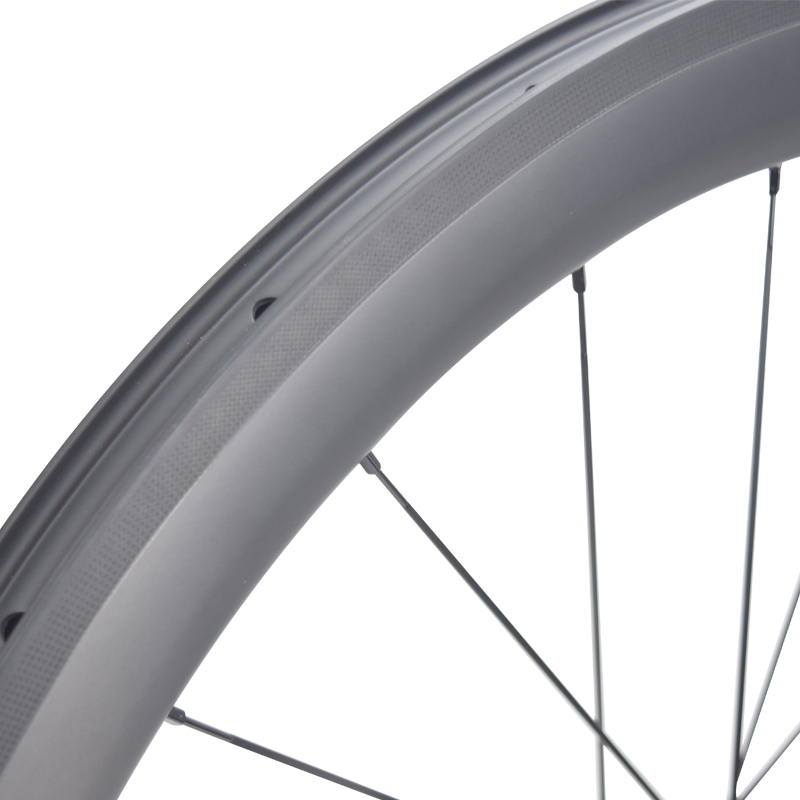

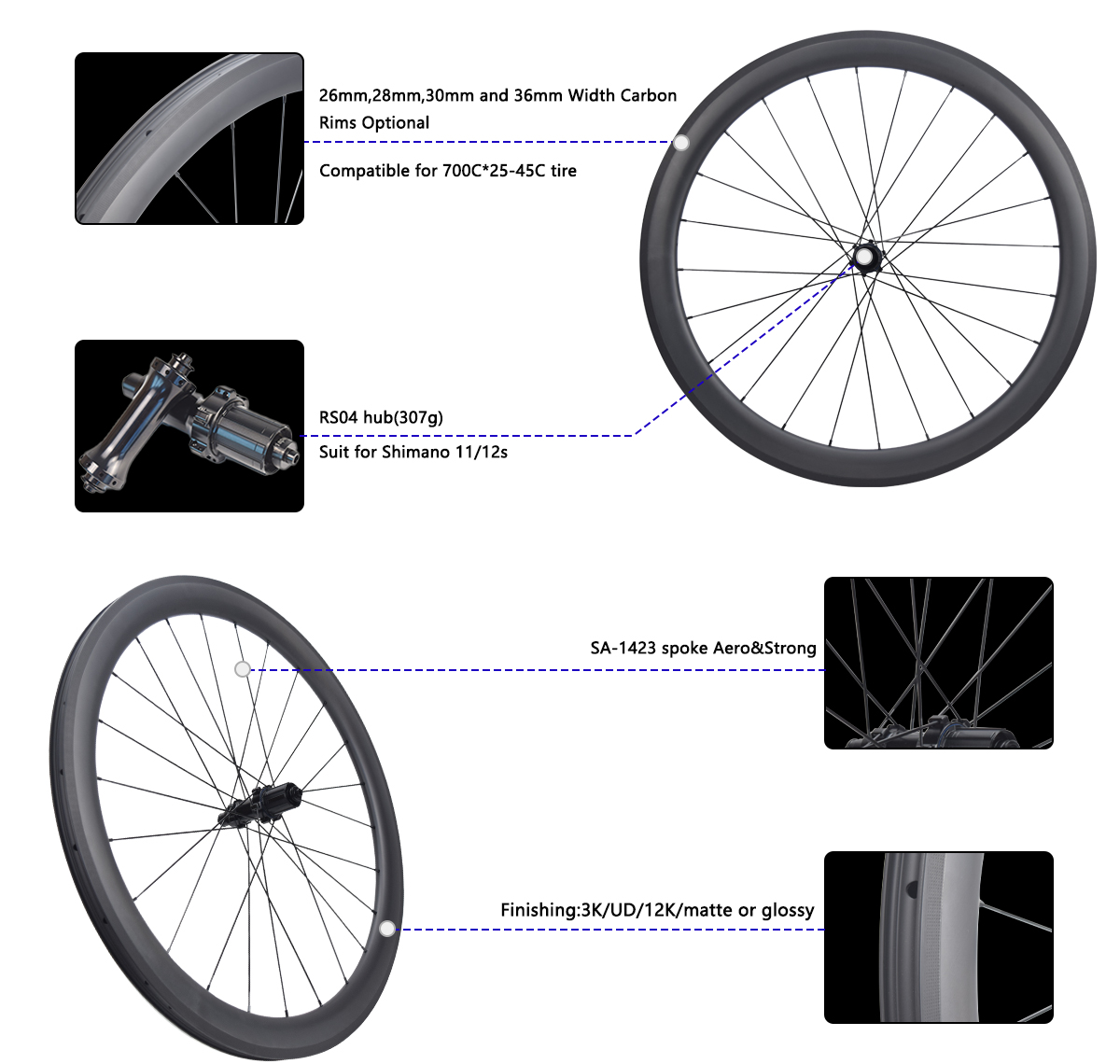

• Multi-width Carbon Rims: Optional widths of 26mm, 28mm, 30mm and 36mm, compatible with 700C*25-45C tires for versatile riding needs.

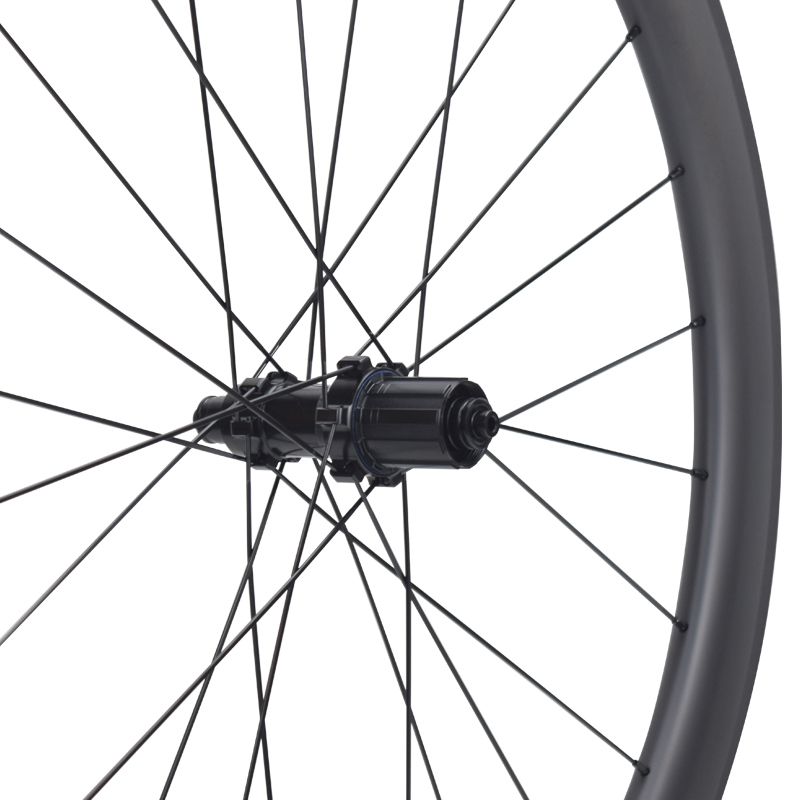

• Lightweight RS04 Hub: Weighing only 307g, the hub is perfectly suited for Shimano 11/12-speed systems, ensuring smooth shifting and reliable power transfer.
• Aero & Strong Spokes: SA-1423 aero spokes combine aerodynamic design with exceptional strength, reducing wind resistance while enhancing wheel stability.
• Customizable Finishing: Available in 3K/UD/12K weave, with matte or glossy surface options to match your bike’s style.
Designed for road and mountain bike upgrades, this premium bike hub set combines precision engineering with robust construction, delivering ultra-smooth rotation and reliable performance for all riding conditions.
♦Key features

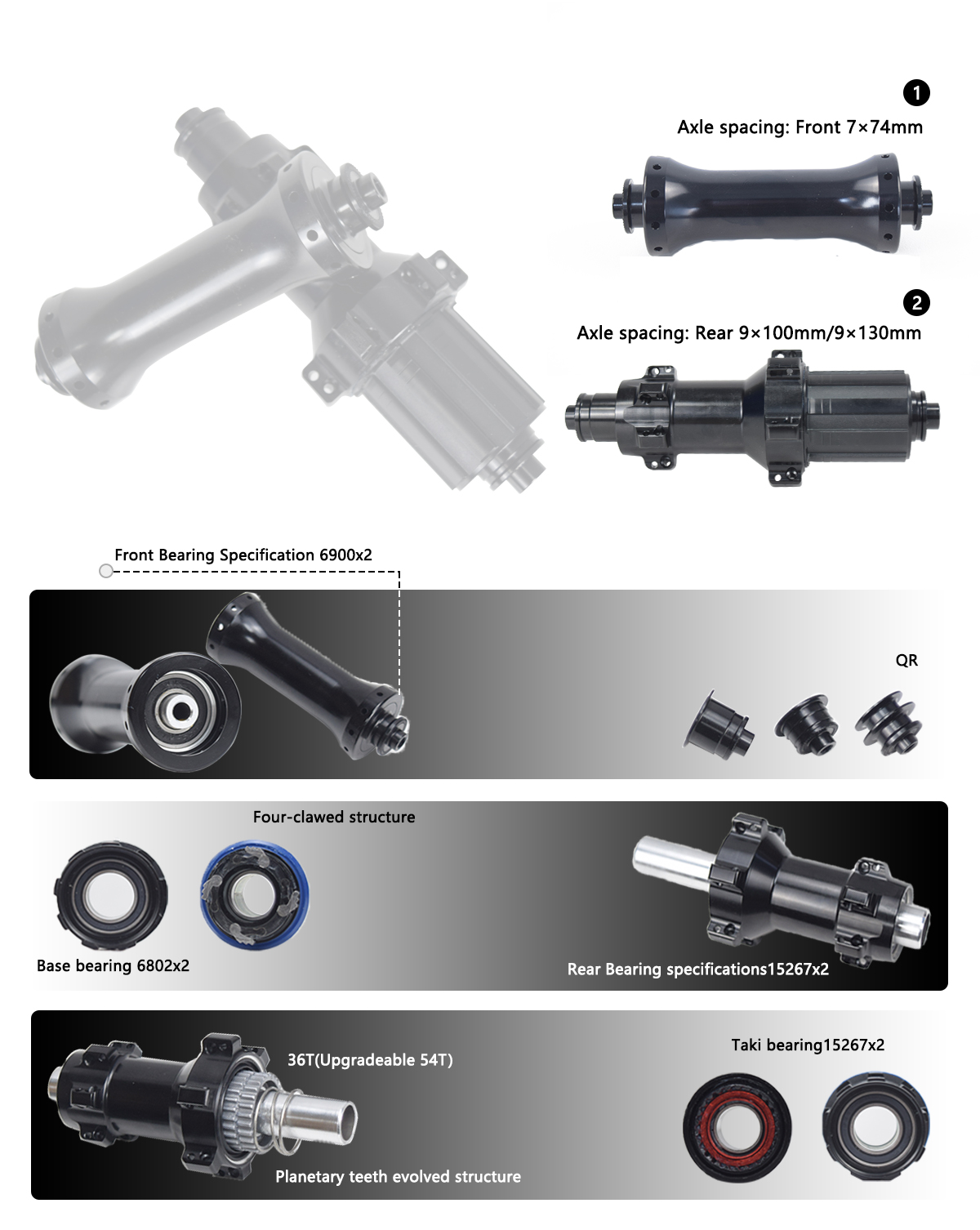

1. Axle Spacing Options
-

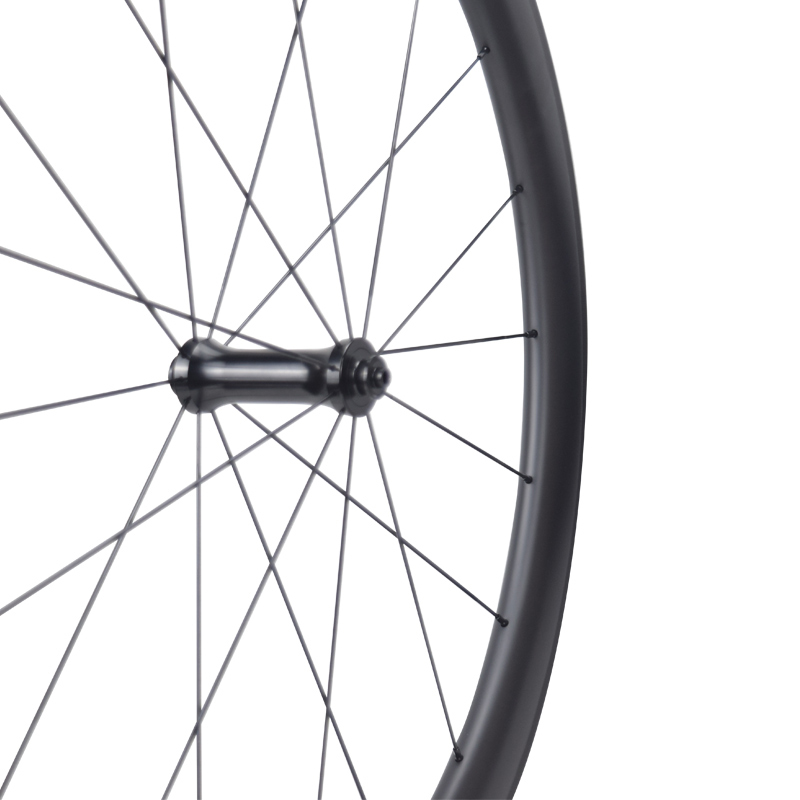

Front hub: 7×74mm axle spacing, tailored for front wheel compatibility.
-
Rear hub: Dual spacing options of 9×100mm/9×130mm, fitting a wide range of rear wheel frames and forks.
2. Precision Bearing Configuration
-
Front hub: Equipped with 6900×2 bearings for low-friction rotation.
-
Rear hub: Features 6802×2 base bearings and 15267×2 rear/taki bearings, ensuring exceptional durability and smoothness even under heavy loads.
3.Premium Structural Design
-
Four-clawed Structure:The rear hub adopts a four-clawed structural design, enhancing connection stability and power transfer efficiency between the hub and wheel components.
-
Planetary Teeth Evolved Structure: Boasts an advanced planetary teeth evolved structure with 36T ratchet teeth (upgradeable to 54T), enabling faster engagement, instant power delivery, and adaptability for high-intensity riding needs.
-
QR Compatibility: Comes with quick-release (QR) accessories for easy wheel installation and removal, ideal for on-the-go adjustments.

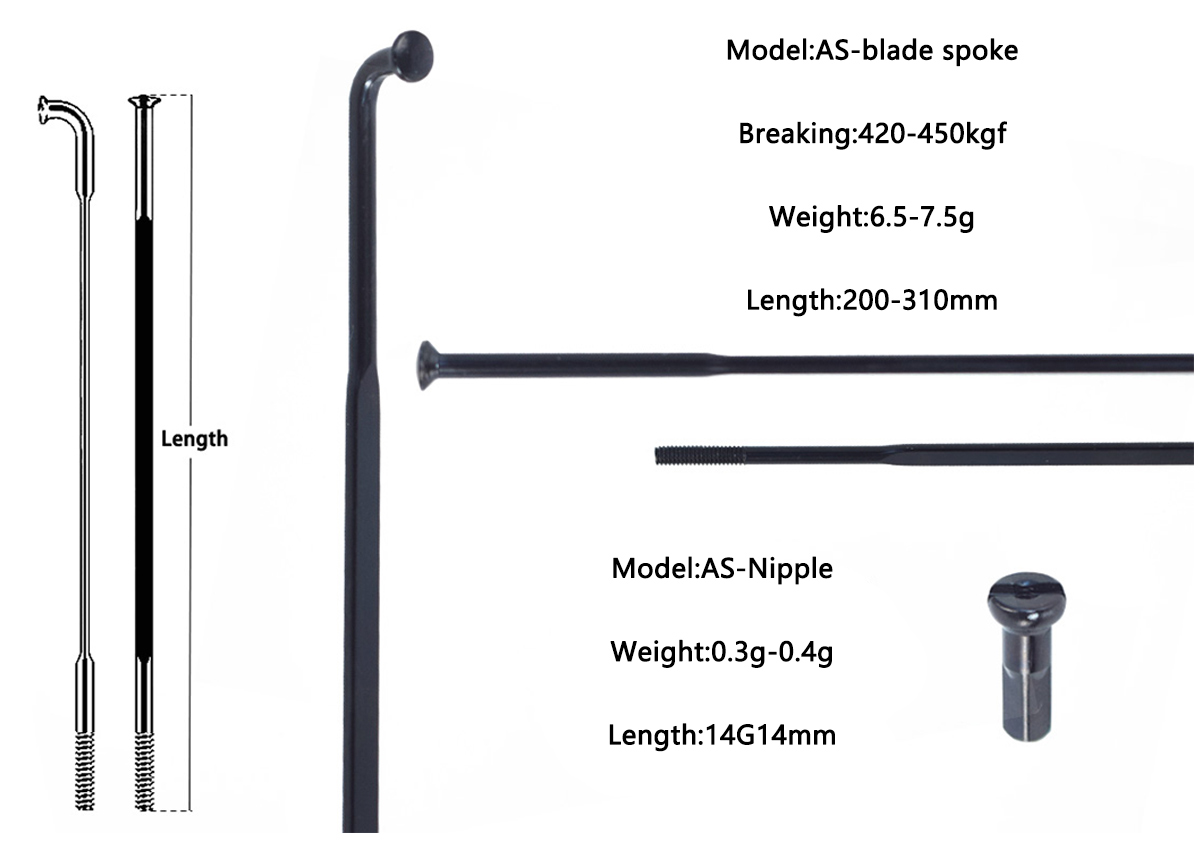

- Weight: 0.3-0.4g per nipple, adding negligible weight while ensuring secure spoke-rim connection.
- Size: 14G14mm, standard sizing for easy installation and compatibility with most bike wheels.
- High Tensile Strength: The AS-blade spoke’s 420-450kgf breaking strength resists bending and snapping, even under heavy loads or rough terrain.
- Ultra-Lightweight Build: The lightweight spoke and nipple reduce overall wheel weight, improving climbing efficiency and wheel responsiveness.
- Precision Fit: The 200-310mm spoke length and 14G14mm nipple size ensure a perfect fit for most standard bike wheel assemblies, with easy installation and adjustment.
⇒Road disc brake carbon wheels with 26mm wide rim (19mm inner wide): (28mm/30mm/36mm wide is available too)
| Model |
Depth |
External Width |
Rim Type |
Hub |
Front Size |
Rear Size |
Spoke |
Holes |
Weight(+/-3%) |
| SA30CT-26 |
30mm |
26mm |
Tubeless |
SA-RS04 |
9*74mm |
9*100mm/9*130mm |
SA-1423 |
20H/24H |
1405g |
| SA38CT-26 |
38mm |
26mm |
Tubeless |
SA-RS04 |
9*74mm |
9*100mm/9*130mm |
SA-1423 |
20H/24H |
1465g |
| SA45CT-26 |
45mm |
26mm |
Tubeless |
SA-RS04 |
9*74mm |
9*100mm/9*130mm |
SA-1423 |
20H/24H |
1495g |
| SA50CT-26 |
50mm |
26mm |
Tubeless |
SA-RS04 |
9*74mm |
9*100mm/9*130mm |
SA-1423 |
20H/24H |
1525g |
| SA60CT-26 |
60mm |
26mm |
Tubeless |
SA-RS04 |
9*74mm |
9*100mm/9*130mm |
SA-1423 |
20H/24H |
1615g |
Road disc brake carbon rim 26mm wide:
|
Rim
|
SA30CT-26
|
SA38CT-26
|
SA45CT-26
|
SA50CT-26
|
SA60CT-26
|
|
Rim Weight
|
395g±15g
|
425g±15g
|
440g±15g
|
460g±15g
|
530g±15g
|
|
ERD
|
580mm
|
564mm
|
550mm
|
540mm
|
520mm
|
|
Sectional Drawing
|
 |
 |
 |
 |
 |
⇒Road disc brake carbon wheels with 28mm wide rim (21mm inner wide):
|
Model
|
Depth
|
Exteral Width
|
Tire Type
|
Hub
|
Front Size
|
Rear Size
|
Spoke
|
Holes
|
Weight(+/-3%)
|
|
SA30CT-28
|
30mm
|
28mm
|
Tubeless
|
SA-RS04
|
9*74mm
|
9*100mm/9*130mm
|
SA-1423
|
20H/24H
|
1415g
|
|
SA35CT-28
|
35mm
|
28mm
|
Tubeless
|
SA-RS04
|
9*74mm
|
9*100mm/9*130mm
|
SA-1423
|
20H/24H
|
1445g
|
|
SA40CT-28
|
40mm
|
28mm
|
Tubeless
|
SA-RS04
|
9*74mm
|
9*100mm/9*130mm
|
SA-1423
|
20H/24H
|
1465g
|
|
SA45CT-28
|
45mm
|
28mm
|
Tubeless
|
SA-RS04
|
9*74mm
|
9*100mm/9*130mm
|
SA-1423
|
20H/24H
|
1535g
|
|
SA50CT-28
|
50mm
|
28mm
|
Tubeless
|
SA-RS04
|
9*74mm
|
9*100mm/9*130mm
|
SA-1423
|
20H/24H
|
1555g
|
|
SA55CT-28
|
55mm
|
28mm
|
Tubeless
|
SA-RS04
|
9*74mm
|
9*100mm/9*130mm
|
SA-1423
|
20H/24H
|
1645g
|
|
SA60CT-28
|
60mm
|
28mm
|
Tubeless
|
SA-RS04
|
9*74mm
|
9*100mm/9*130mm
|
SA-1423
|
20H/24H
|
1685g
|
Road disc brake carbon rim 28mm wide:
|
Rim
|
SA30CT-28
|
SA35CT-28
|
SA40CT-28
|
SA45CT-28
|
|
Rim Weight
|
400g±15g
|
415g±15g
|
425g±15g
|
460g±15g
|
|
ERD
|
580mm
|
570mm
|
560mm
|
550mm
|
|
Sectional Drawing
|
 |
 |
 |
 |
|
Rim
|
SA50CT-28
|
SA55CT-28
|
SA60CT-28
|
|
|
Rim Weight
|
470g±15g
|
515±15g
|
535g±15g
|
|
|
ERD
|
540mm
|
530mm
|
520mm
|
|
|
Sectional Drawing
|
 |
 |
 |
|
