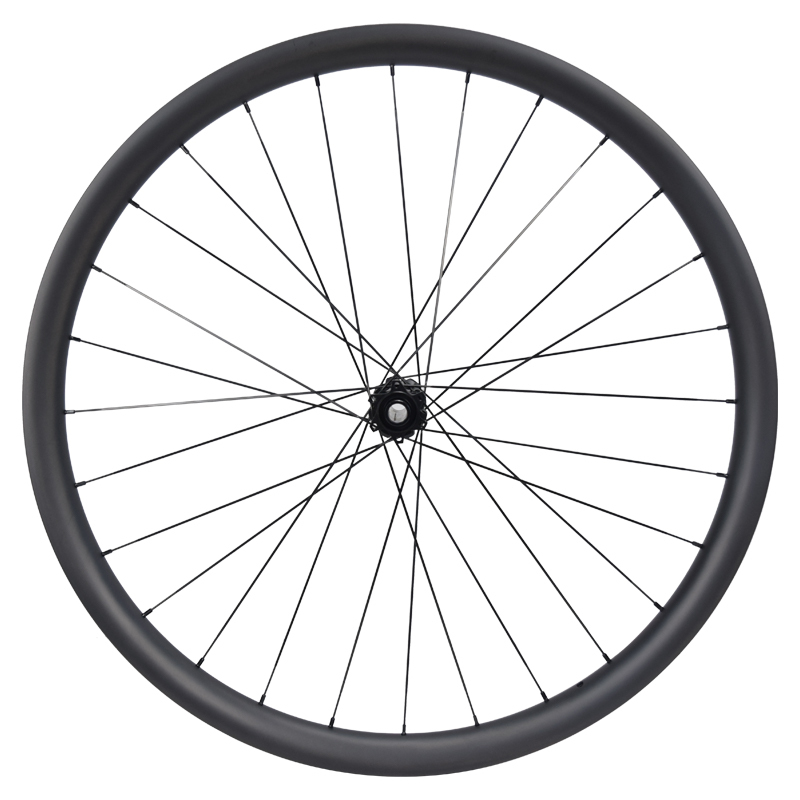

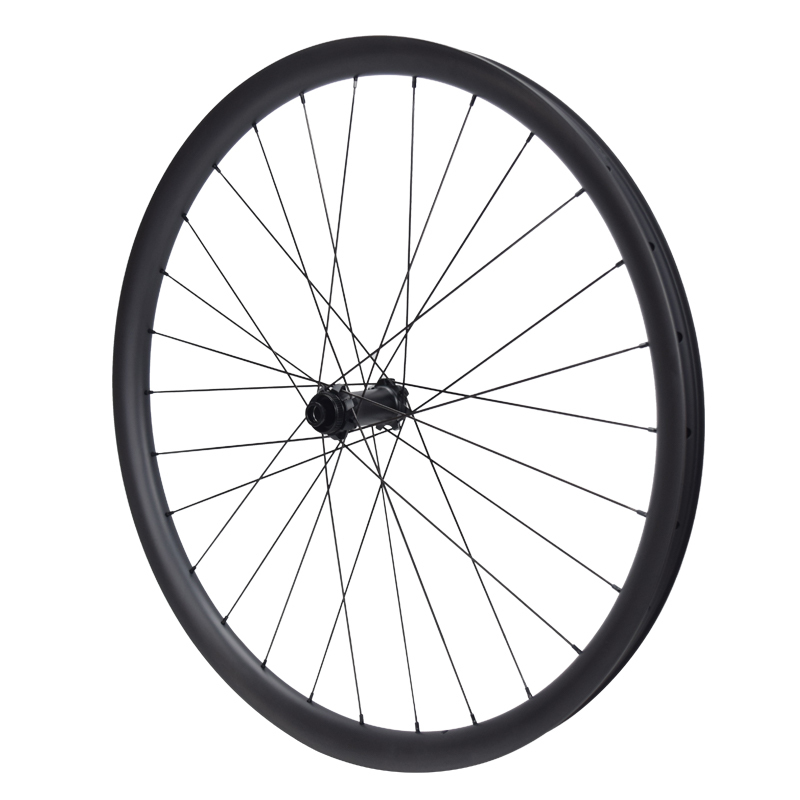

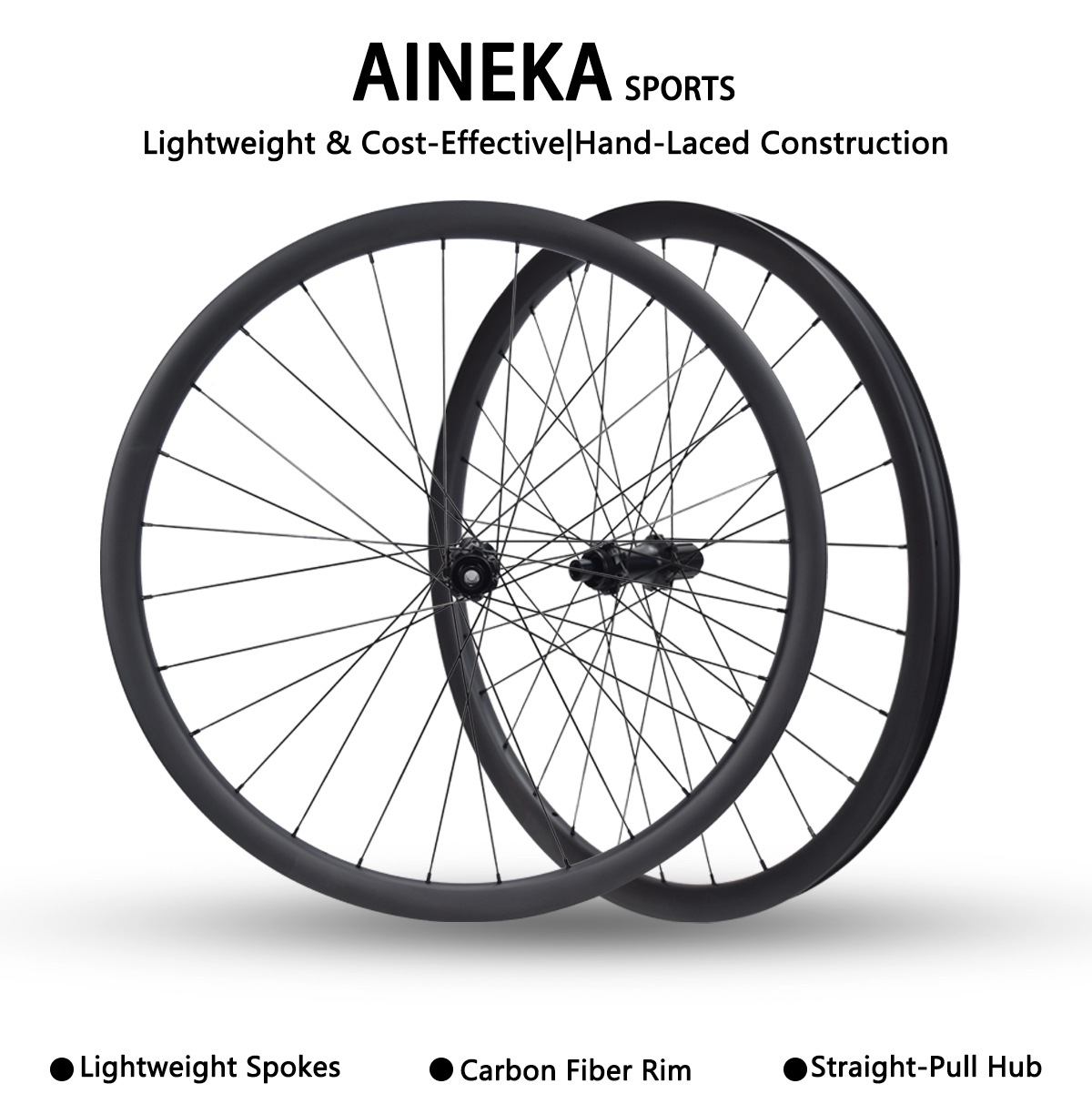

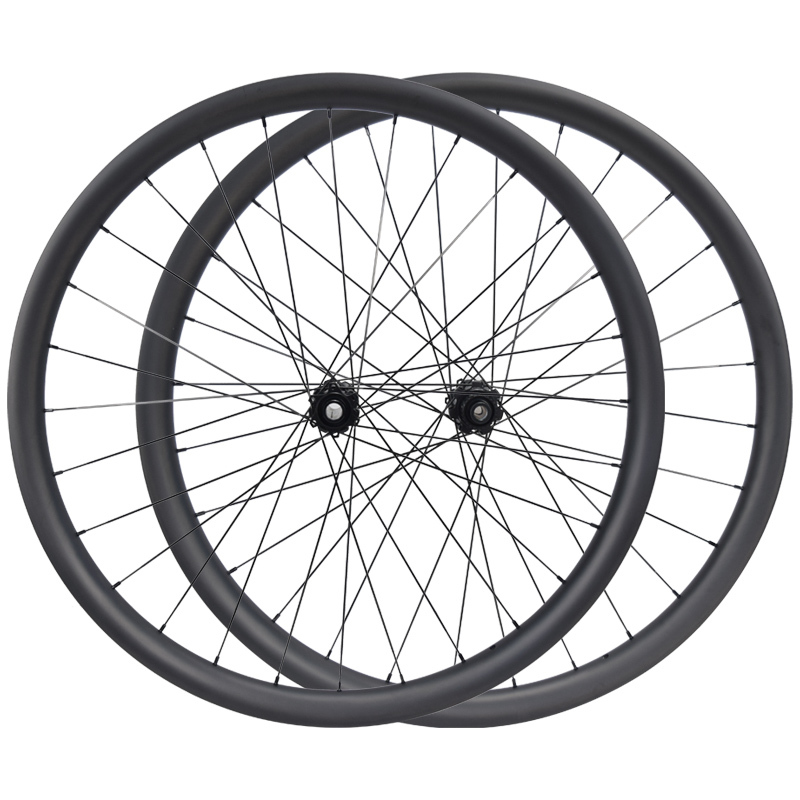

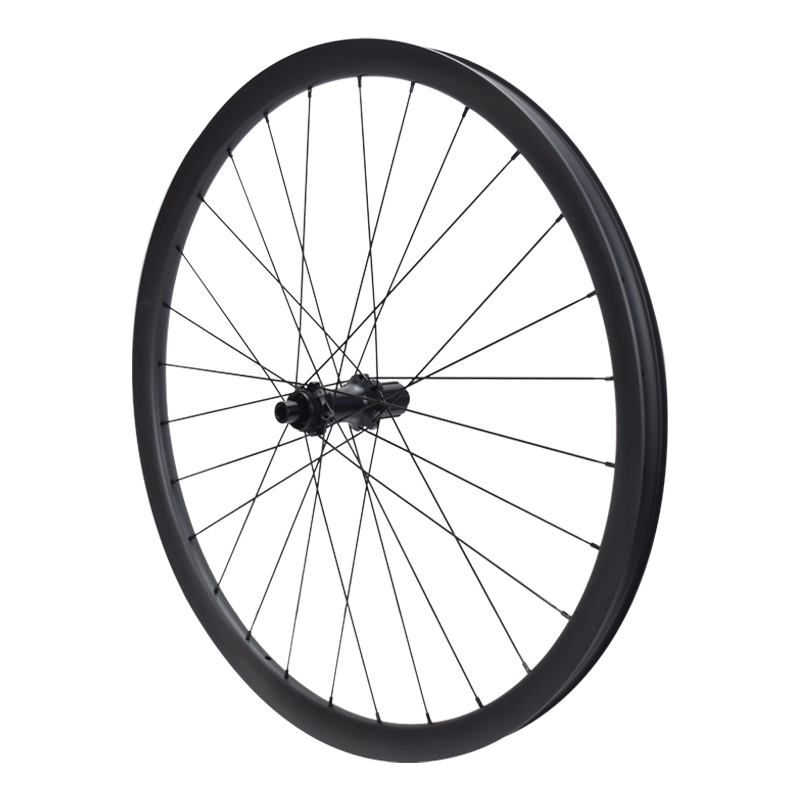

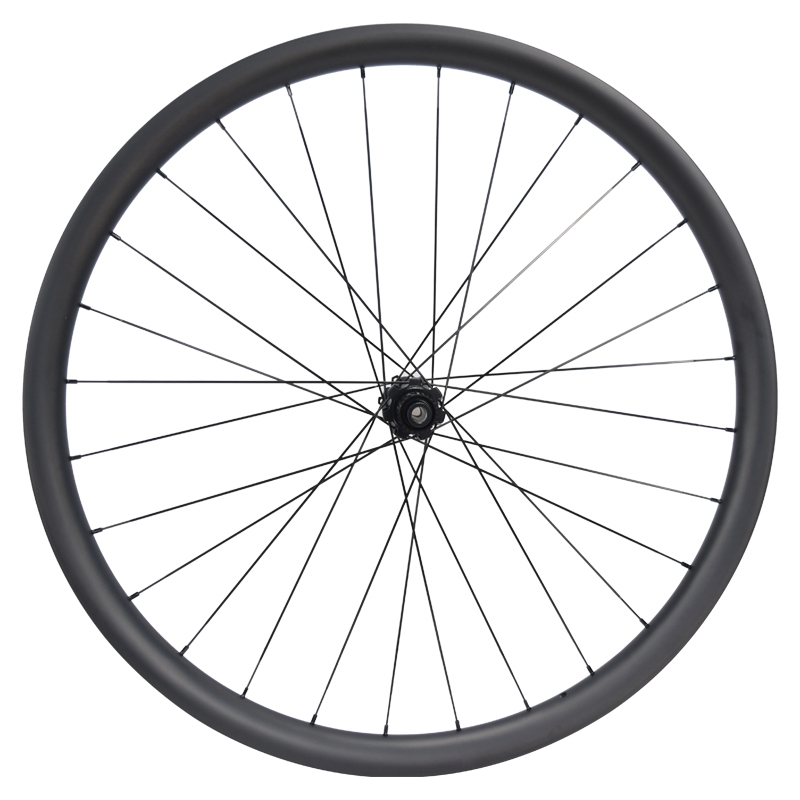

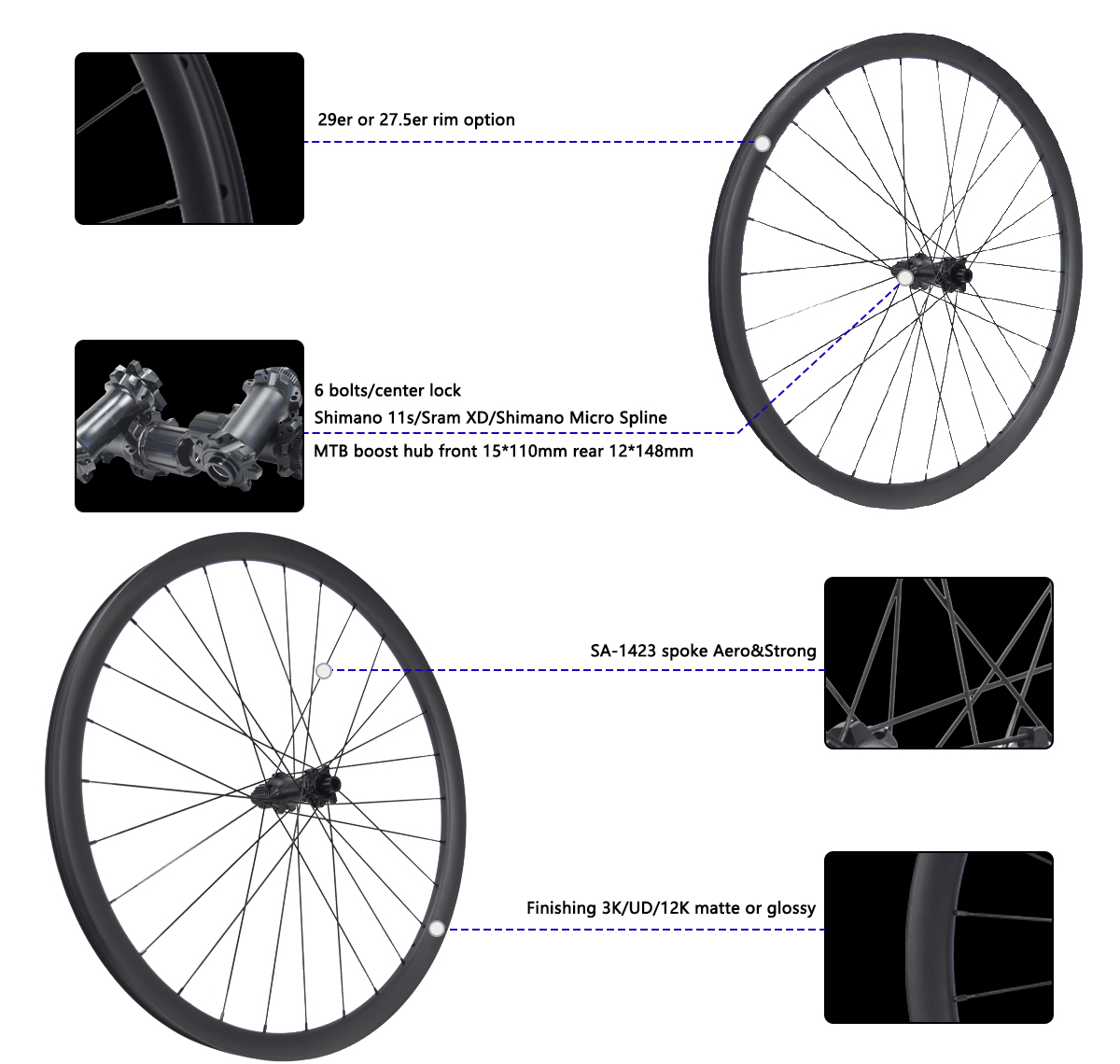

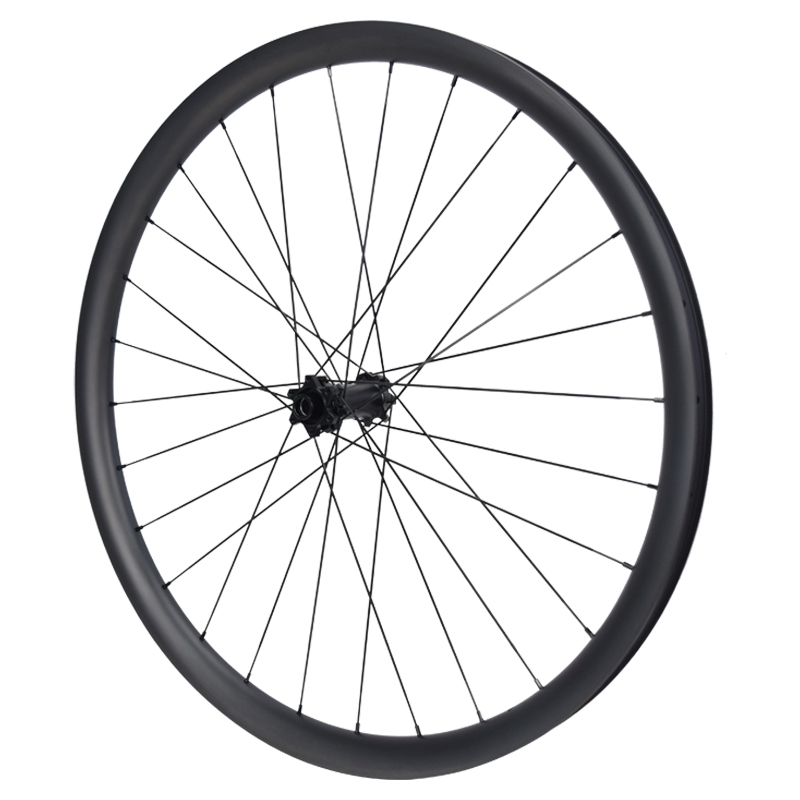

This is a carbon fiber mountain bike wheel set designed for off-road riding scenarios, with a focus on high performance and compatibility.
♦Key features ⇓
◦ Braking method: Dual specifications of 6 bolts/center lock, compatible with mainstream disc brake systems.
◦ Freehub body compatibility: Supports mainstream drivetrain freehub body specifications such as Shimano 11-speed, Sram XD, and Shimano Micro Spline.
◦ Axle diameter specification: MTB boost specification (front 15×110mm, rear 12×148mm), enhancing wheel set rigidity and stability.
-
Spoke Parameters: Adopts SA-1423 spokes with both aerodynamic and high-strength properties, reducing wind resistance while ensuring wheel set durability.
-
Appearance Craftsmanship: The carbon fiber surface treatment offers 3K/UD/12K carbon pattern options, with both matte and glossy surface finishes available
- If you require a lighter and better configuration (for ceramic bearing or spoke like pillar 1420, sapim cx-ray), please contact us for an upgrade

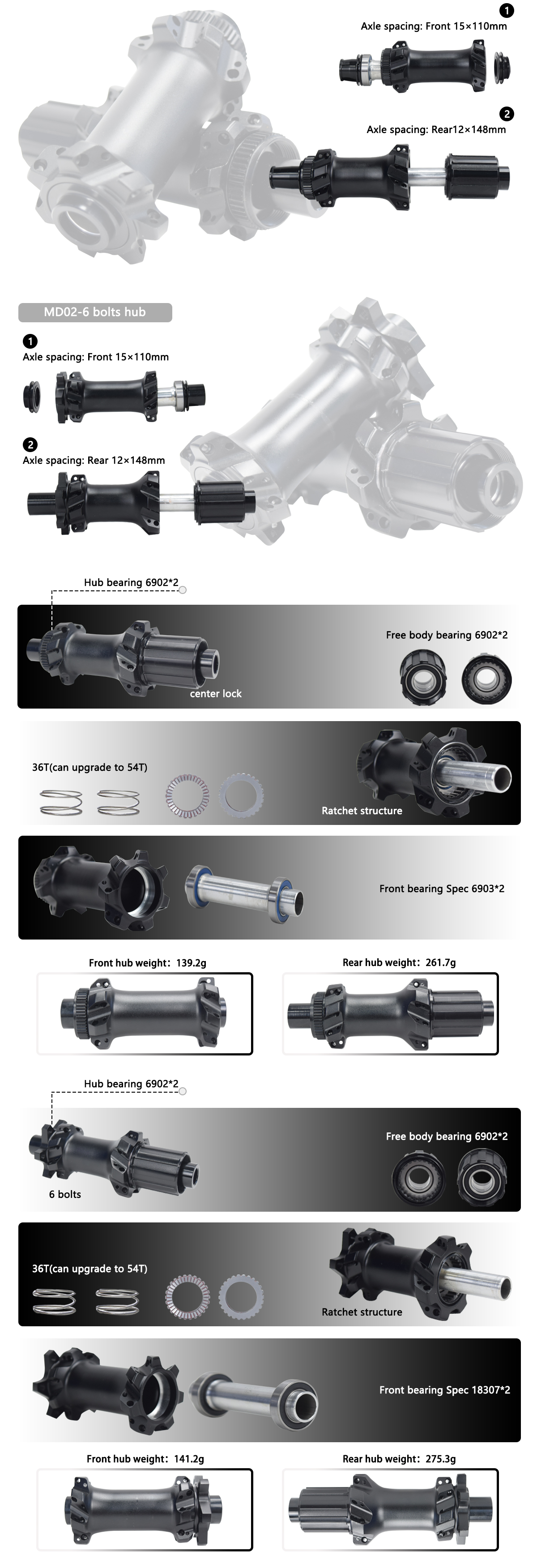

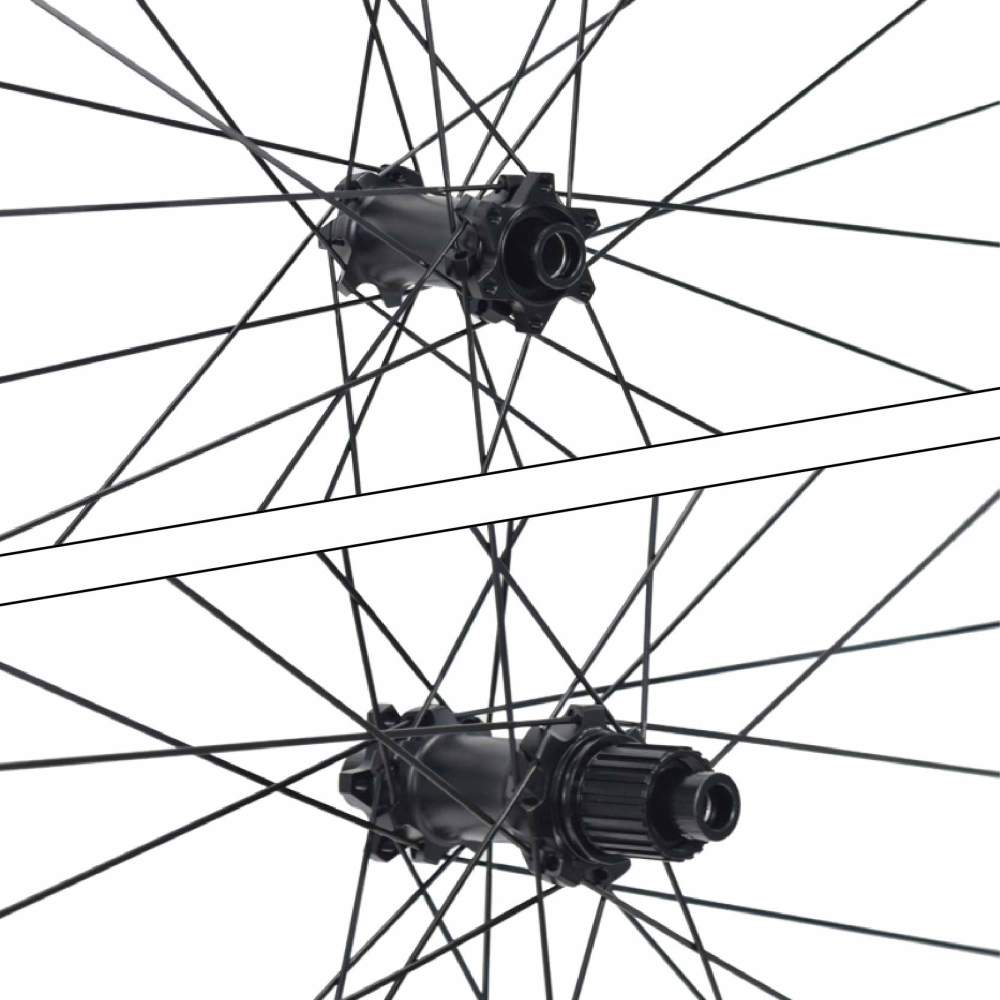

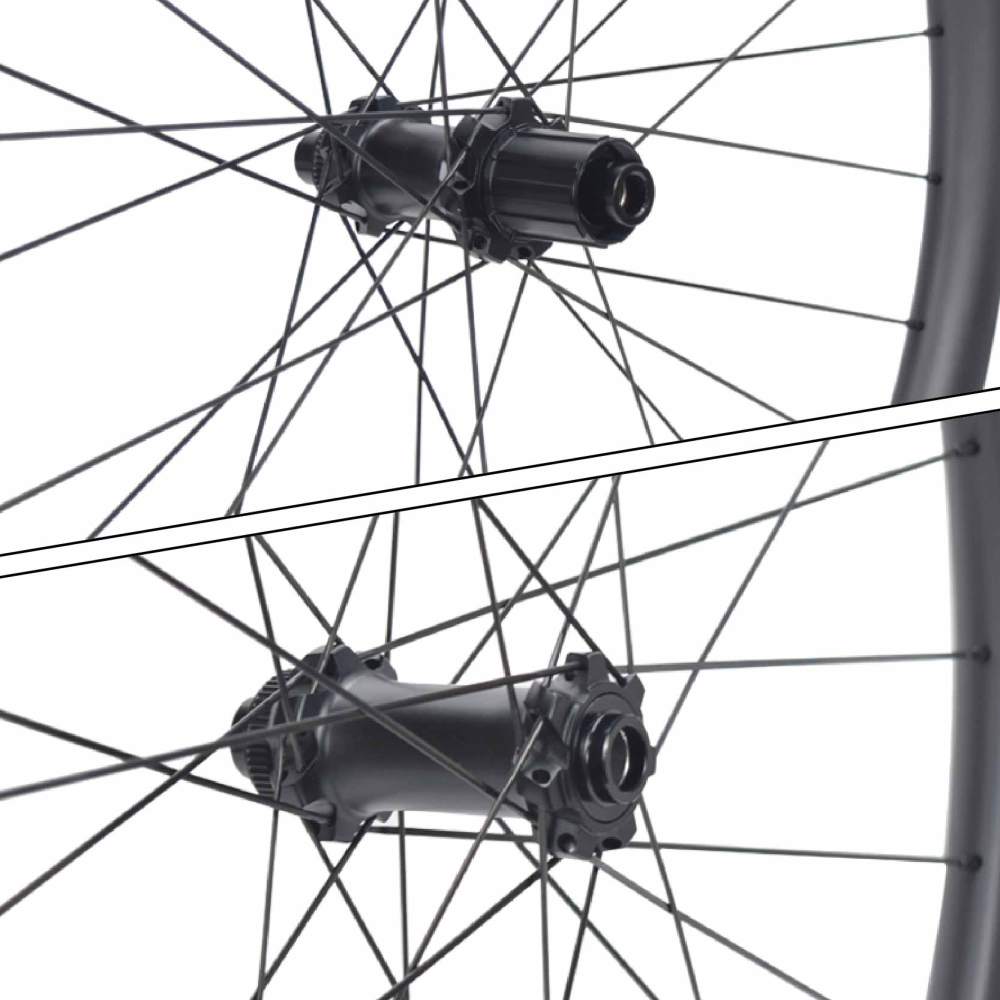

This is the MD02 series hub for mountain bikes, available in two braking specifications: 6 bolts and center lock, featuring lightweight design and high compatibility.
♦Key features ⇓
- Specification Compatibility: Adopts MTB boost axle spacing (front 15×110mm, rear 12×148mm), compatible with mainstream mountain bike frames and forks. It supports two disc brake mounting methods (6 bolts and center lock), meeting the needs of different braking systems.
- Structural Upgradeability: The ratchet structure is 36T by default and can be upgraded to 54T, improving engagement speed and transmission efficiency, suitable for high-intensity pedaling scenarios in off-road riding.
- Lightweight Design: The hub body is made of lightweight materials. The center lock version has a front hub of only 139.2g and a rear hub of 261.7g, effectively reducing the rotational inertia of the wheel set and improving riding maneuverability.
- Bearing Configuration: Equipped with high-precision 6902/6903/18307 series bearings. The freehub body and hub are equipped with independent bearings respectively, ensuring smooth rotation and durability for long-term use in complex road conditions.

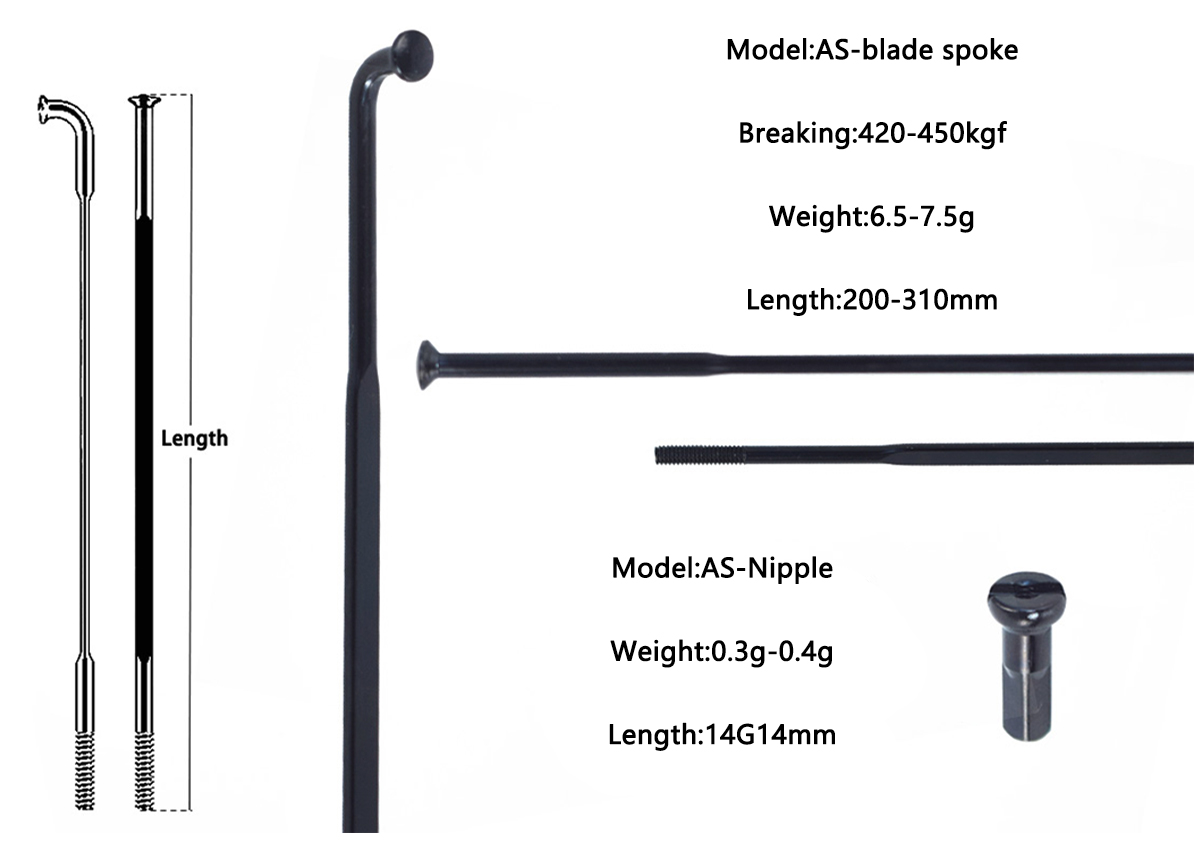

1. High-Strength Performance: The AS-blade flat spoke has a breaking strength of 420-450kgf, far exceeding ordinary round spokes. It can withstand the stress of high-intensity riding scenarios such as off-roading and racing, improving wheel set stability and durability.
2. Lightweight Design: Each spoke weighs only 6.5-7.5g and each spoke nipple weighs 0.3-0.4g. Combined use can greatly reduce the rotational inertia of the wheel set and improve riding acceleration and climbing efficiency.
3. Specification Compatibility: The spoke length covers 200-310mm, adapting to bicycle rims of different sizes; the spoke nipple is a standard 14G 14mm specification, compatible with the assembly needs of most spokes and rims, with strong versatility.
4. Aerodynamic Advantage: The flat spoke shape has less wind resistance than traditional round spokes, which can reduce air resistance during riding and improve speed performance at high speeds.
27.5er mountain bike carbon fiber Rim (Symmetry)
| Rim |
MTB30-25-27.5 |
MTB35-25-27.5 |
MTB37-28-27.5 |
MTB30-30-27.5 |
MTB36-30-27.5 |
MTB40-30-27.5 |
| Material |
T700+T800 |
T700+T800 |
T700+T800 |
T700+T800 |
T700+T800 |
T700+T800 |
| Rim weight |
390g+/-15g |
430g+/-15g |
430g+/-15g |
380g+/-15g |
435g+/-15g |
440g+/-15g |
| Rim depth |
25mm |
25mm |
28mm |
30mm |
30mm |
30mm |
| Rim width |
30mm |
35mm |
37mm |
30mm |
36mm |
40mm |
| Rim type |
Tubeless hookless |
Tubeless hookless |
Tubeless hookless |
Tubeless hookless |
Tubeless hookless |
Tubeless hookless |
| Max rider limited |
120kg |
120kg |
120kg |
120kg |
120kg |
120kg |
| Max tire pressure |
2.7bar/40psi |
2.7bar/40psi |
2.4bar/35psi |
2.7bar/40psi |
2.4bar/35psi |
2.4bar/35psi |
| Recommend tire |
650B*2.0"-2.4" |
650B*2.3''-2.6'' |
650B*2.3''-2.7'' |
650B*2.0"-2.4" |
650B*2.3''-2.6'' |
650B*2.4''-3.0'' |
| ERD |
553mm |
553mm |
547mm |
540mm |
540mm |
540m |

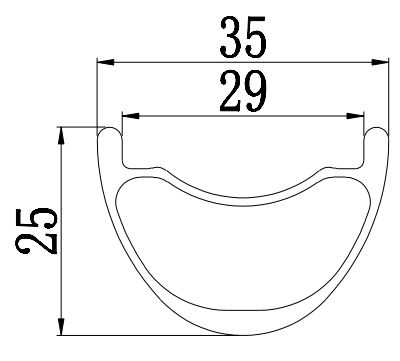

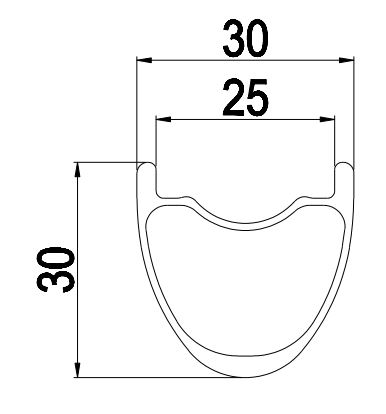

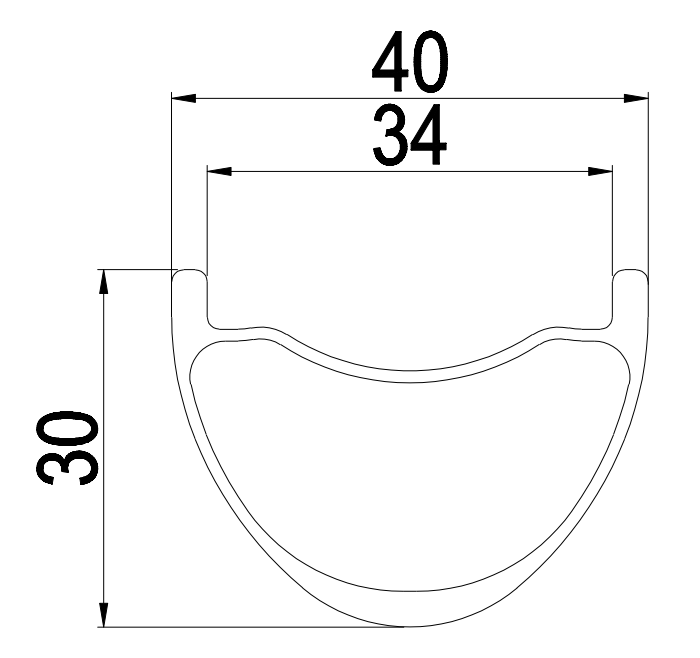

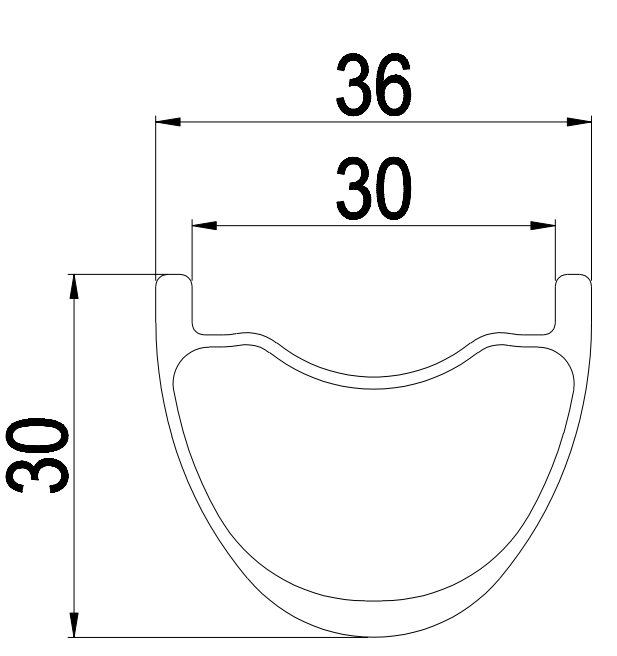

| Sectional Drawing |
|
|
|
|
 |
|
27.5er mountain bike carbon rim (Asymmetry)
| Rim |
MTB28-25-27.5-Asymmetry |
MTB30-30-27.5-Asymmetry |
MTB33-30-27.5-Asymmetry |
MTB36-30-27.5-Asymmetry |
| Material |
T700+T800 |
T700+T800 |
T700+T800 |
T700+T800 |
| Rim weight |
350g+/-15g |
380g+/-15g |
430g+/-15g |
435g+/-15g |
| Rim depth |
25mm |
30mm |
30mm |
30mm |
| Rim width |
28mm |
30mm |
33mm |
36mm |
| Rim type |
Tubeless hookless |
Tubeless hookless |
Tubeless hookless |
Tubeless hookless |
| Rim offset |
2.6mm |
2.6mm |
2.6mm |
2.6mm |
| Max rider limited |
120kg |
120kg |
120kg |
120kg |
| Max tire pressure |
2.7bar/40psi |
2.7bar/40psi |
2.7bar/40psi |
2.4bar/35psi |
| Recommend tire size |
650B*1.9''-2.2'' |
650B*2.0''-2.4'' |
650B*2.1''-2.5'' |
650B*2.3''-2.6'' |
| ERD |
553mm |
540mm |
540mm |
540mm |

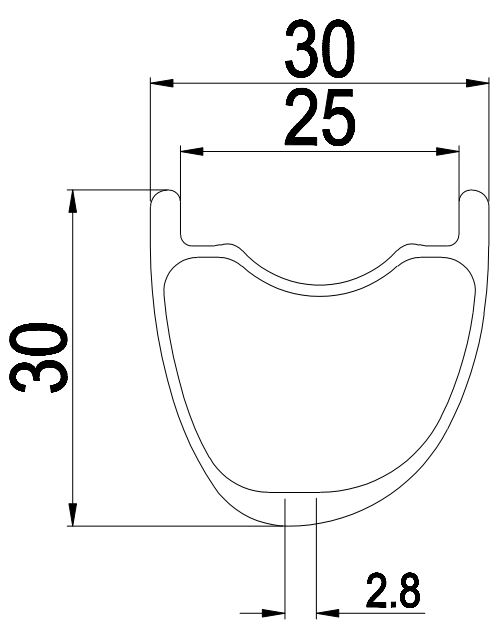

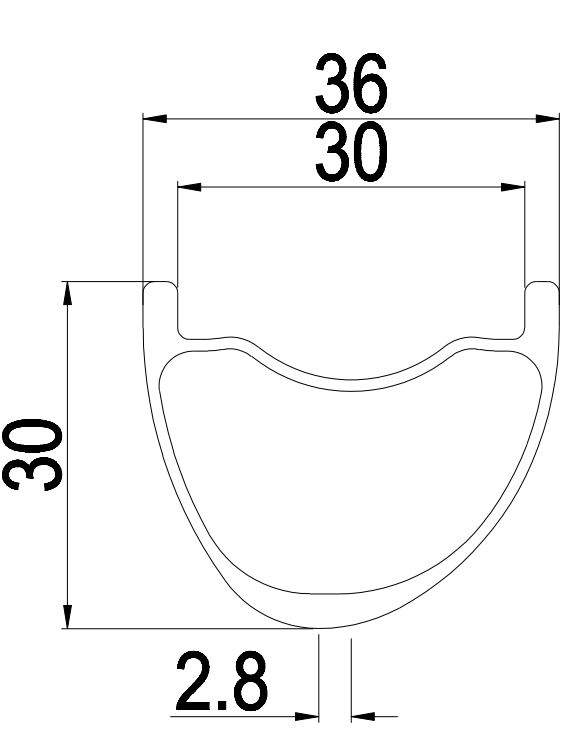

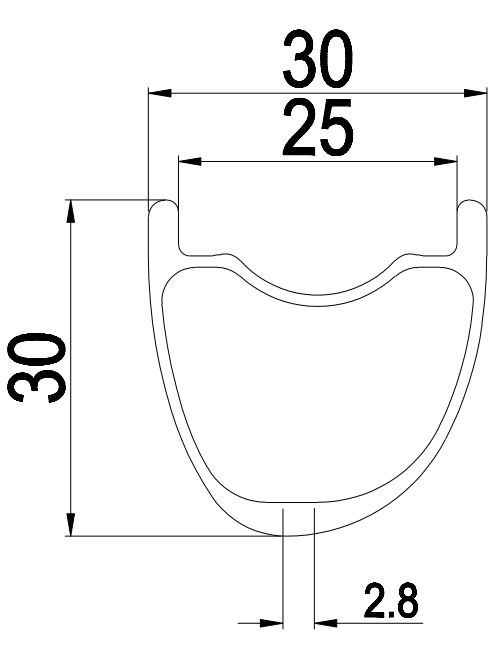

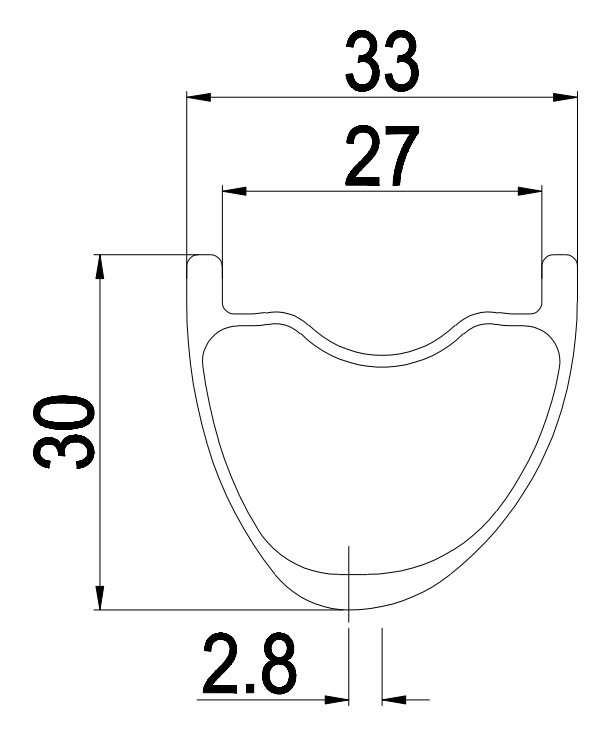

| Sectional Drawing |
 |
 |
 |
 |
29er mountain bike carbon fiber Rim (Symmetry)
| Rim |
MTB30-25-29 |
MTB30-30-29 |
MTB35-25-29 |
MTB36-30-29 |
MTB37-28-29 |
MTB40-30-29 |
| Material |
T700+T800 |
T700+T800 |
T700+T800 |
T700+T800 |
T700+T800 |
T700+T800 |
| Rim weight |
420g+/-15g |
385g+/-15g |
420g+/-15g |
455g+/-15g |
440g+/-15g |
465g+/-15g |
| Rim depth |
25mm |
30mm |
25mm |
30mm |
28mm |
30mm |
| Rim width |
30mm |
30mm |
35mm |
36mm |
37mm |
40mm |
| Rim type |
Tubeless hookiless |
Tubeless hookiless |
Tubeless hookiless |
Tubeless hookiless |
Tubeless hookiless |
Tubeless hookiless |
| Max rider limited |
120kg |
120kg |
120kg |
120kg |
120kg |
120kg |
| Recommend tire size |
2.7bar/40psi |
2.7bar/40psi |
2.7bar/40psi |
2.4bar/35psi |
2.4bar/35psi |
2.4bar/35psi |
| ERD |
590mm |
580mm |
590mm |
580mm |
584mm |
580mm |

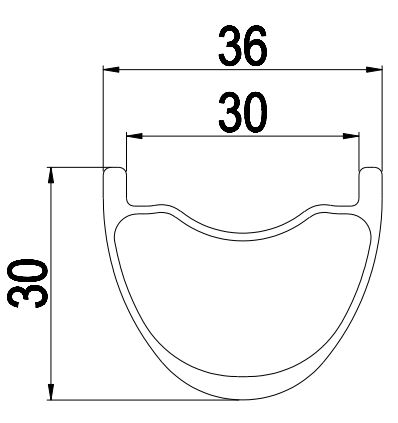

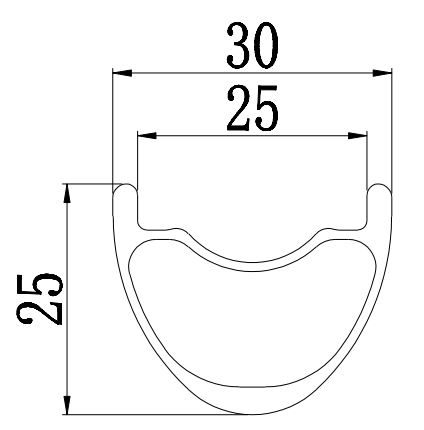

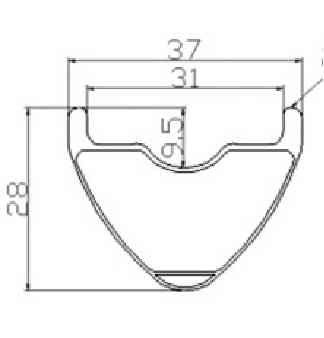

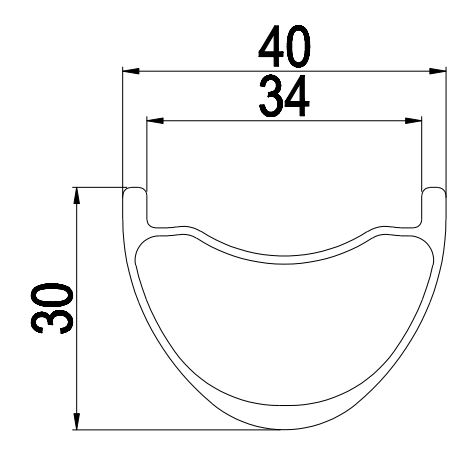

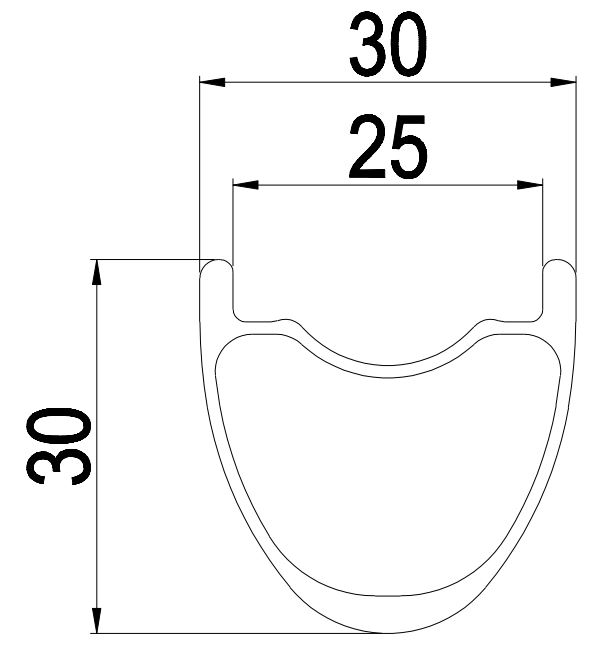

| Sectional Drawing |
 |
 |
 |
 |
 |
 |

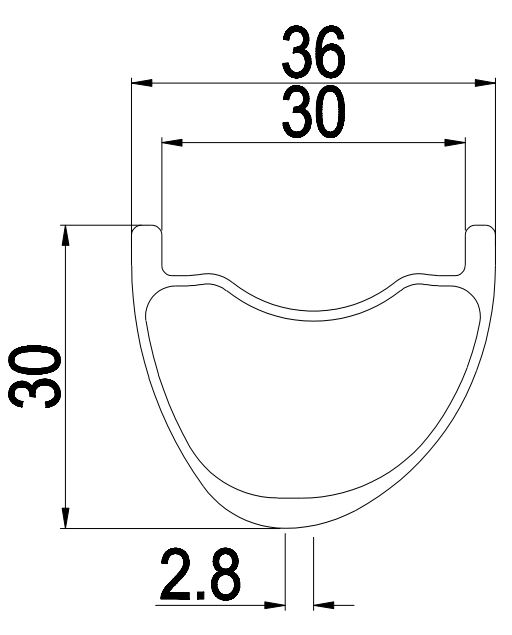

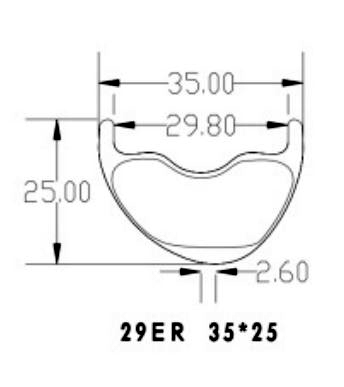

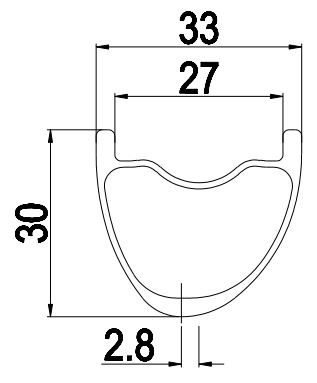

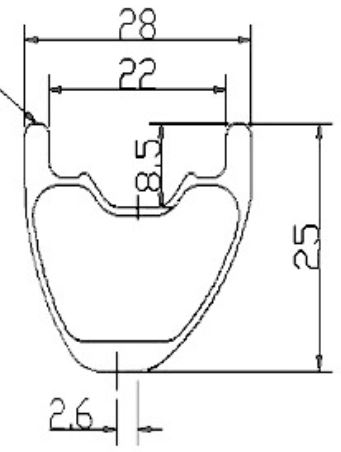

29er mountain bike carbon rim (Asymmetry)
